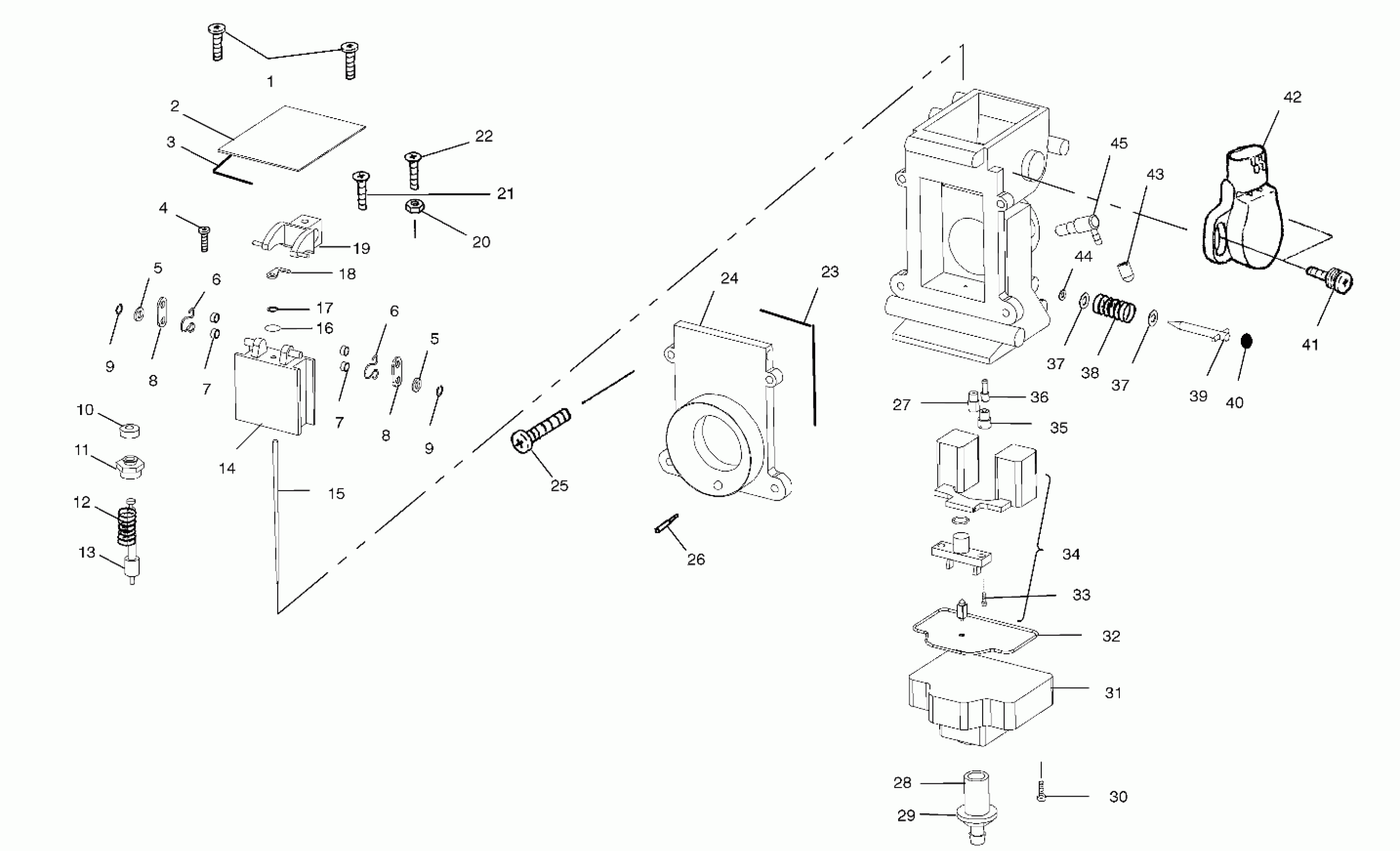

Polaris 600 XC SP - S02NP6ESA CARBURETOR - S02NP6ESA/SB (4967546754C09) Diagram

#

Description
Price

-

Asm., Carburetor

1253329

$669.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston (2.5)

3130790

Unavailable

15

Needle, Jet (J8-9DFH7-60-3)

3131268

$44.51

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

O-Ring, Air Funnel

3130870

$24.27

24

Funnel

3130869

$102.99

25

Screw

3130825

$3.19

26

Jet, Air, Pilot, Long (PAJ)(.9)

3131203

$8.89

27

Jet, Main (430)

3130143

$7.27

28

Bolt, Drain

3131248

Unavailable

29

O-Ring

3130863

$2.41

30

Screw

3130824

$3.19

31

Body, Float

3130858

$119.99

32

O-Ring

3130861

$12.13

33

Screw

3130860

$8.79

34

Float

3130977

Unavailable

35

Jet, Pilot (40)

3130067

$10.99

36

Jet, Starter (140)

3130768

$8.89

37

Washer

3130837

$3.19

37

Washer

3130837

$3.19

38

SPRING

3130836

$7.27

39

Asm., Adjuster

3130987

$20.22

40

Cap

3130986

$9.70

41

Screw (MAG Side)

3131010

$4.79

42

Asm., Sensor (MAG Side)

3131009

$259.03

43

CAP

3130479

$14.56

44

Packing

3130835

$2.41

45

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
