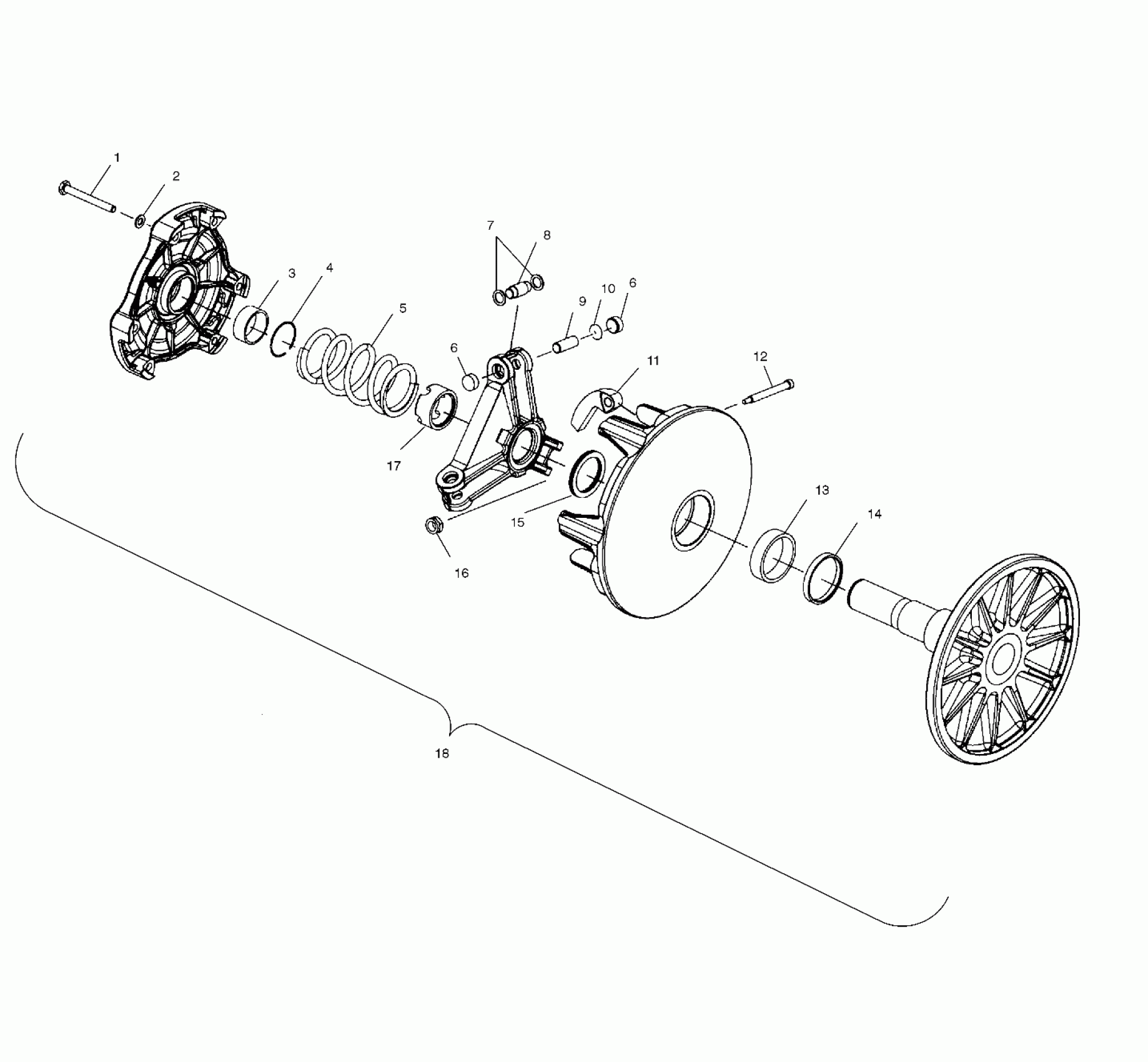

Polaris 600 XC SP F/O - S02NP6ES DRIVE CLUTCH (MANUAL START MODELS) - S02NP6ES/S02NE6ES (4973427342C09) Diagram

#

Description
Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

PIN-ROLLER

5020422

$2.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

Weight/Bushing, 10-58

1321588

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Spacer [.050mm]

5210754

Unavailable

15

Spacer [.025mm]

5242981

Unavailable

15

Spacer [.020mm]

5210752

Unavailable

15

Spacer [.032mm]

5210753

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

Asm., Drive Clutch, Basic 114 [Incl. All Less 5,11]

1321928

$699.99
