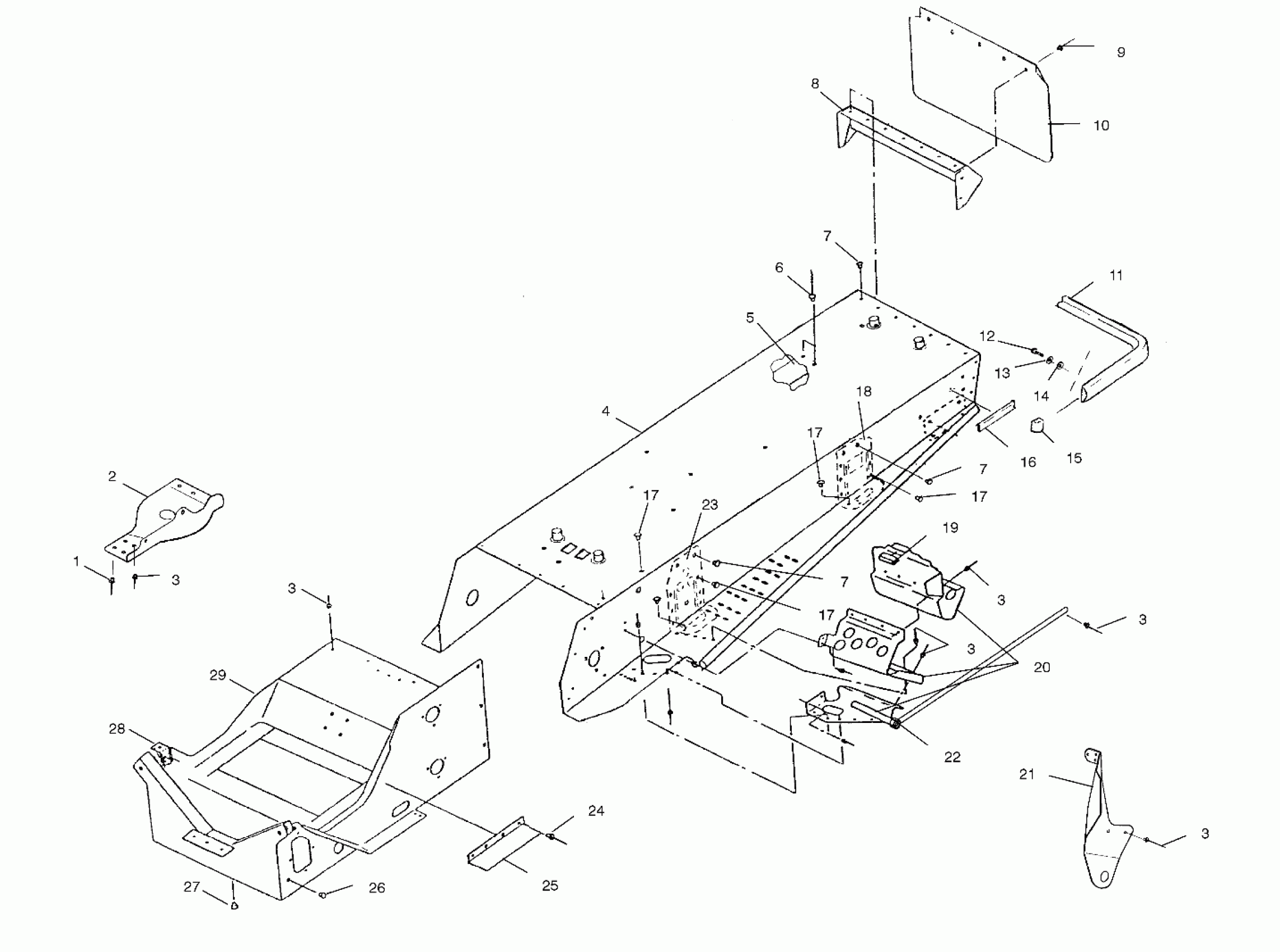

Polaris 600 XC SP (EV) - S00SP6ES TUNNEL - S00SP6ES (4954045404a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

TUNNEL,LIQ.X-10,BLK (Incl. 8,18,23)

1012880-067

Unavailable

5

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref. 9)

-------

Unavailable

6

RIVET,3/16X.402(50)

7621432

$1.49

7

RIVET ,(50)

7661836

$0.63

7

RIVET ,(50)

7661836

$0.63

7

RIVET ,(50)

7661836

$0.63

8

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

9

POP RIVET(50)

7621418

$1.49

10

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

11

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

12

BOLT(10)

7512240

$3.99

13

LOCK WASHER(10)

7552801

$1.59

14

WASHER(10)

7558301

$1.49

15

CAP,BUMPER

5431995-070

Unavailable

16

REFLECTOR ASM,RED

2670133

$5.75

17

RIVET ,(50)

7661837

$1.49

17

RIVET ,(50)

7661837

$1.49

17

RIVET ,(50)

7661837

$1.49

17

RIVET ,(50)

7661837

$1.49

18

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

18

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

19

EXTRUSION,CLUTCHGUARD

5521238

$6.46

20

FOOTREST,LH,BLK

1012898

Unavailable

20

FOOTREST,RH,BLK

1012899

$119.99

21

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

21

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

22

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

22

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

23

BRKT,LH,FR.SUSP.MTG,BLK.

5242612-067

Unavailable

23

BRKT,RH,FR.SUSP.MTG,BLK.

5242613-067

Unavailable

24

RIVET(50)

7621452

$1.49

25

GUARD,ADAPTER GUIDE

5222857

$12.94

26

PLUG, HOLE(10)

7080416

$5.65

27

PLUG-HOLE

7080398

$4.84

28

Bracket, Muffler, Front (See Footnote) (See Exhaust System Pg. C7, Ref. 16)

-------

Unavailable

29

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable
