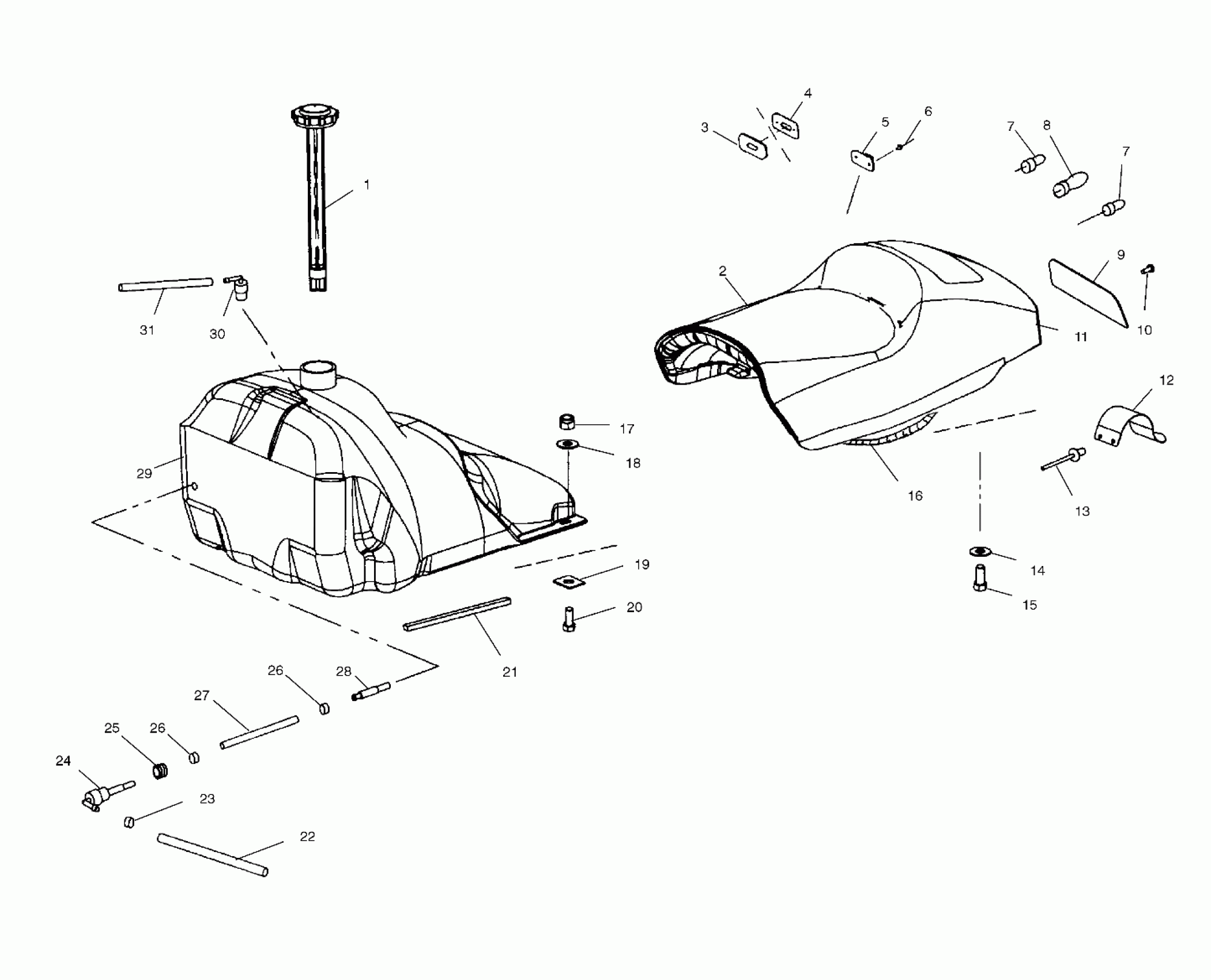

Polaris 600 XC SP (EV) - S00SP6ES SEAT AND GAS TANK - S00SP6ES (4954045404a006) Diagram

#

Description
Price

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

SEATCOVER,ASM

2682567

Unavailable

2

SEAT,CUSHION,GEN II,STD (Incl. 2-12,16)

2682568

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

HOUSING-TAILLIGHT

5433341

Unavailable

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

RIVET(50)

7621472

$1.49

14

WASHER(10)

7558301

$1.49

15

SCREW(10)

7512242

$2.39

16

Harness, Taillight

2460399

Unavailable

16

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

17

NUT-LOCK(10)

7542122

$1.49

18

WASHER(10)

7555960

$3.99

19

SPEED NUT(10)

7670021

$6.99

20

BOLT(10)

7512193

$2.39

21

PAD-GAS TANK

5810063

$4.95

22

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

FITTING,1/4" 90� DEX

7052259

Unavailable

25

GROMMET-TANK FITTING(10)

7052028

$6.39

26

RING, COMPRESSION(10)

7080402

$1.60

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

29

FUEL TANK,EDGE (Incl. 24-30)

2520150

$219.99

30

FITTING,90 DEG,1/8,(10)

7052095

$4.79

31

FUELLINE,3MMX7MM

8450061-600

Unavailable
