- 600 XC SP (EV) - S00SP6ES
REAR TORQUE ARM - S00SP6ES (4954045404b012)

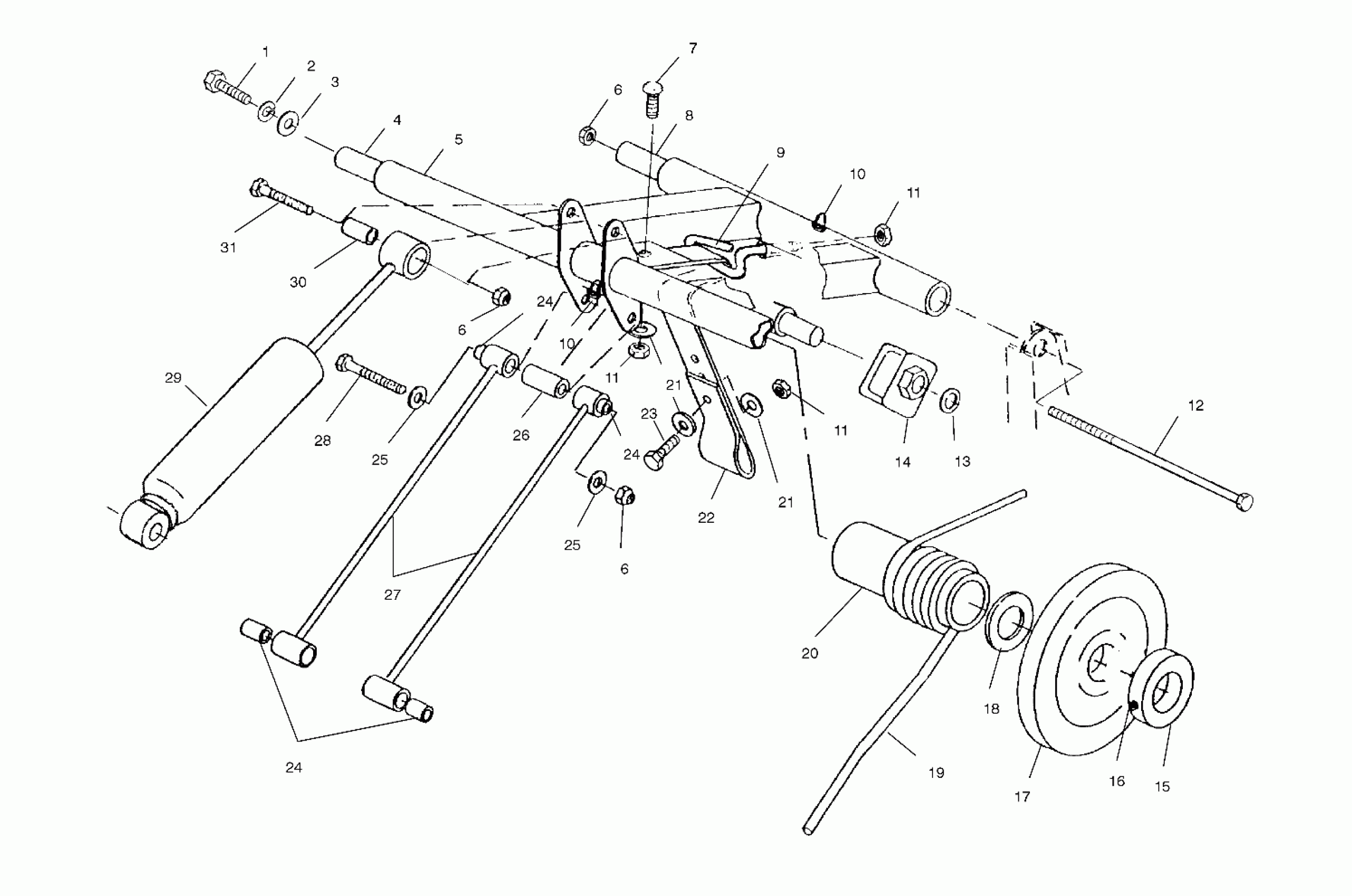

Polaris 600 XC SP (EV) - S00SP6ES REAR TORQUE ARM - S00SP6ES (4954045404b012) Diagram
#
1
Bolt
7517435
$14.99
2
WASHER(10)
7552603
$1.49
3
WASHER(10)
7555893
$1.49
4
SHAFT,R.TORQUE,UPPER
5131910
$89.03
5
ARM,R.TORQUE,BLK.
1541290-067
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
BOLT(10)
7512377
$4.79
8
Shaft
5333536
Unavailable
9
BOLT,EYE
7010050
Unavailable
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
Screw
7517232
$19.99
13
CLIP-PUSH ON
7080394
$2.39
14
ROLLER-SPRING,ADJ,SQUARE,X10
5432983
$9.70
15
COLLAR,BRG.LOCK
5131911
$16.47
16
SCREW-SET(10)
7512257
$3.99
17
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
17
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
17
Wheel, Carrier
1543023
Unavailable
18
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
19
SPRING,LH,TORSION,BLK. (.359/77 Degree)
7041629-067
Unavailable
19
SPRING,RH,TORSION,BLK. (.359/77 Degree)
7041630-067
Unavailable
19
SPRING-TORSION,.375/77�,LH,BLK (.375/77 Degree)
7041631-067
$140.38
19
SPRING-TORSION,.375/77�,RH,BLK (.375/77 Degree)
7041632-067
$140.38
19
SPRING-TORSION,.347SQ/77�LHBLK (.347/77 Degree)
7041627-067
$135.54
19
SPRING-TORSION,.347/77�,RH,BLK (.347/77 Degree)
7041628-067
$135.54
20
SLEEVE,TORS.SPRING
5433007
Unavailable
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP,LIMITER
5411061
Unavailable
23
SCREW(10)
7512310
$2.39
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333559
Unavailable
27
ROD,SHOCK
1541015-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
SHOCK-RR TRK,POS.SEN,X-10 FOX (See Footnote) (See Fox Shock Rear Track Pg. C1)
7041728
Unavailable
30
BUSHING
5010422
$11.99
31
BOLT(10) Substituted by 7515492
7512410
Unavailable
