- 600 XC SP (EV) - S00SP6ES
FRONT SUSPENSION - S00SP6ES (4954045404b001)

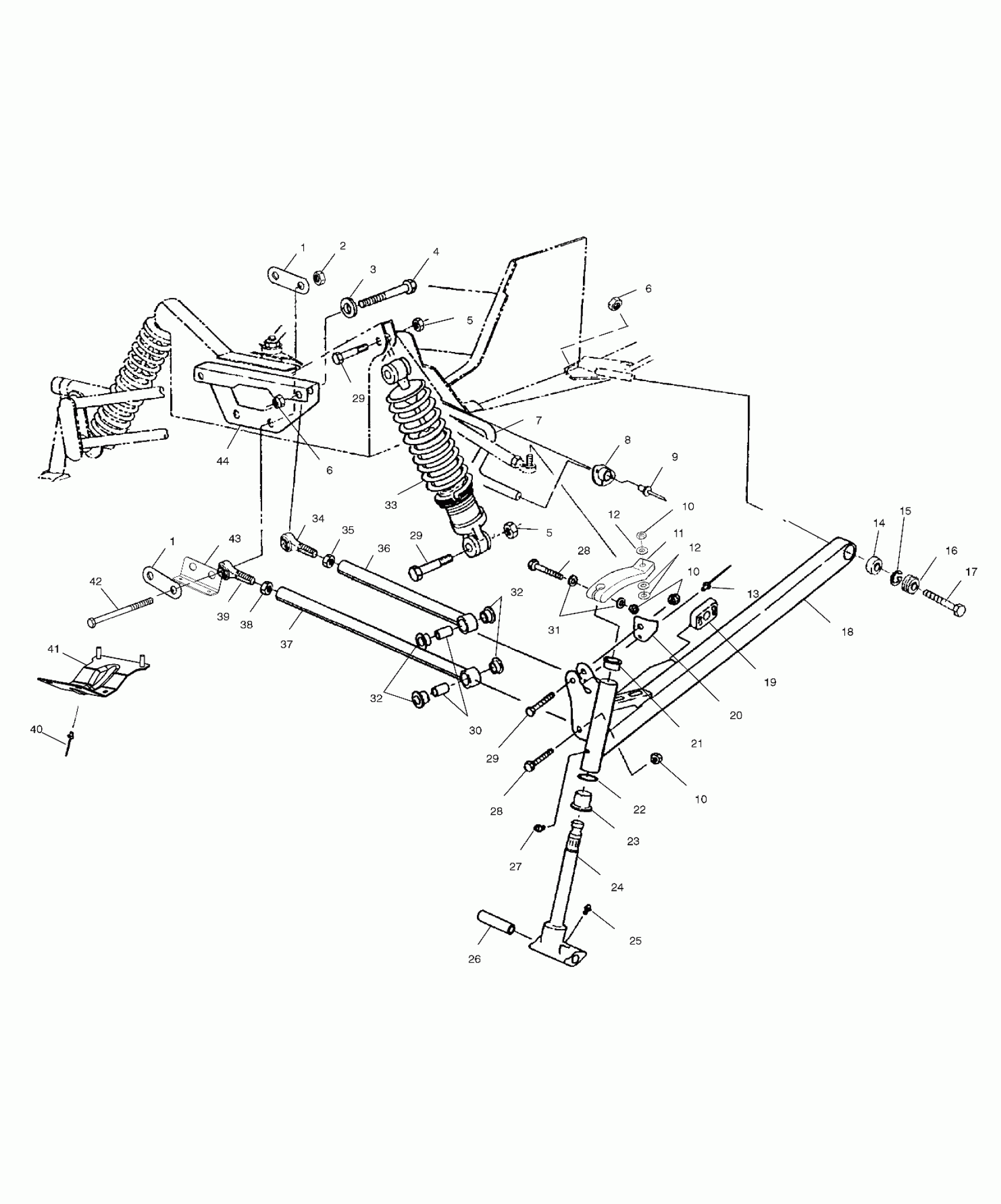

Polaris 600 XC SP (EV) - S00SP6ES FRONT SUSPENSION - S00SP6ES (4954045404b001) Diagram
#
1
STRAP,SPACER BOTTOM
5211345
$12.99
1
STRAP,SPACER BOTTOM
5211345
$12.99
2
NUT FLEX,(10)
7542703
Unavailable
3
WASHER THRUST(10)
7558702
$1.59
4
BOLT(10)
7512551
Unavailable
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
6
NUT, LOCK,(10)
7542503
$10.39
6
NUT, LOCK,(10)
7542503
$10.39
7
BAR-TORSION,5/8,BLK
5243008-067
Unavailable
8
BUSHING,SWAY BAR
5432038
$19.99
9
RIVET,(50)
7621477
$1.19
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
11
ARM,LH,STRG,ALUM.
5131739
$161.89
11
ARM,RH,STRG,ALUM.
5131740
Unavailable
12
WASHER(10)
7555797
$3.99
12
WASHER(10)
7555797
$3.99
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
14
BEARING-SPHERICAL,7/16,PLASTIC
7061042
$31.99
15
RING,RETAINING(10)
7710437
$3.19
16
WASHER(10)
7555801
$3.99
17
BOLT(10)
7512579
Unavailable
18
TRAILING ARM,LH,BLK,SVC,ASM.
1820713-067
Unavailable
18
TRAILING ARM,RH,BLK,SVC,ASM.
1820714-067
Unavailable
19
SLIDE,SWAYBAR,5/8
5432561
$24.27
20
STOP-STEERING,LH,RED
5242017-293
$10.71
20
STOP-STEERING,RH,RED
5242018-293
$12.39
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
SPINDLE,SHAFT,HARD.
6230099-067
Unavailable
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
ZERK,FITTING,THREADED(10)
7080433
$1.49
28
SCR-3/8-24X2 HX/CP GR5-Y-SP(10)
7517583
$4.35
28
SCR-3/8-24X2 HX/CP GR5-Y-SP(10)
7517583
$4.35
29
BOLT(10)
7515415
$1.49
29
BOLT(10)
7515415
$1.49
29
BOLT(10)
7515415
$1.49
30
BUSHING-RADIUS ROD,(10)
5010127
$7.99
31
WSHR-.813X.406X.105-Y
7555832
$2.39
32
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
32
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
33
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
33
SPRING,COMP,BLK
7041489-067
Unavailable
33
Fox Shock IFS (See Fox Shock - IFS Pg. B13)
-------
Unavailable
34
ROD,END,7/16 LINED Substituted by 7061049
7061010
Unavailable
35
NUT JAM(10)
7542520
$2.39
36
RADIUS ROD,UPPER,BLK
1822588-067
Unavailable
37
RADIUS ROD,LOWER,BLK
1822559-067
Unavailable
38
NUT-JAM(10)
7542711
$2.39
39
RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052
7061027
$48.56
40
RIVET,INTERLOCK,B(50)
7661638
$1.49
41
BRACE-PAN,LOWER,BLK
5242575-067
$24.27
42
BOLT(10)
7512684
Unavailable
43
BRKT,RAD.ROD,BTM.
5242578
$44.99
44
BRACE,BULKHEAD,FRONT,BLK
1012575-067
$23.99
