FOX SHOCK - IFS - S00SP6ES (4954045404b013)

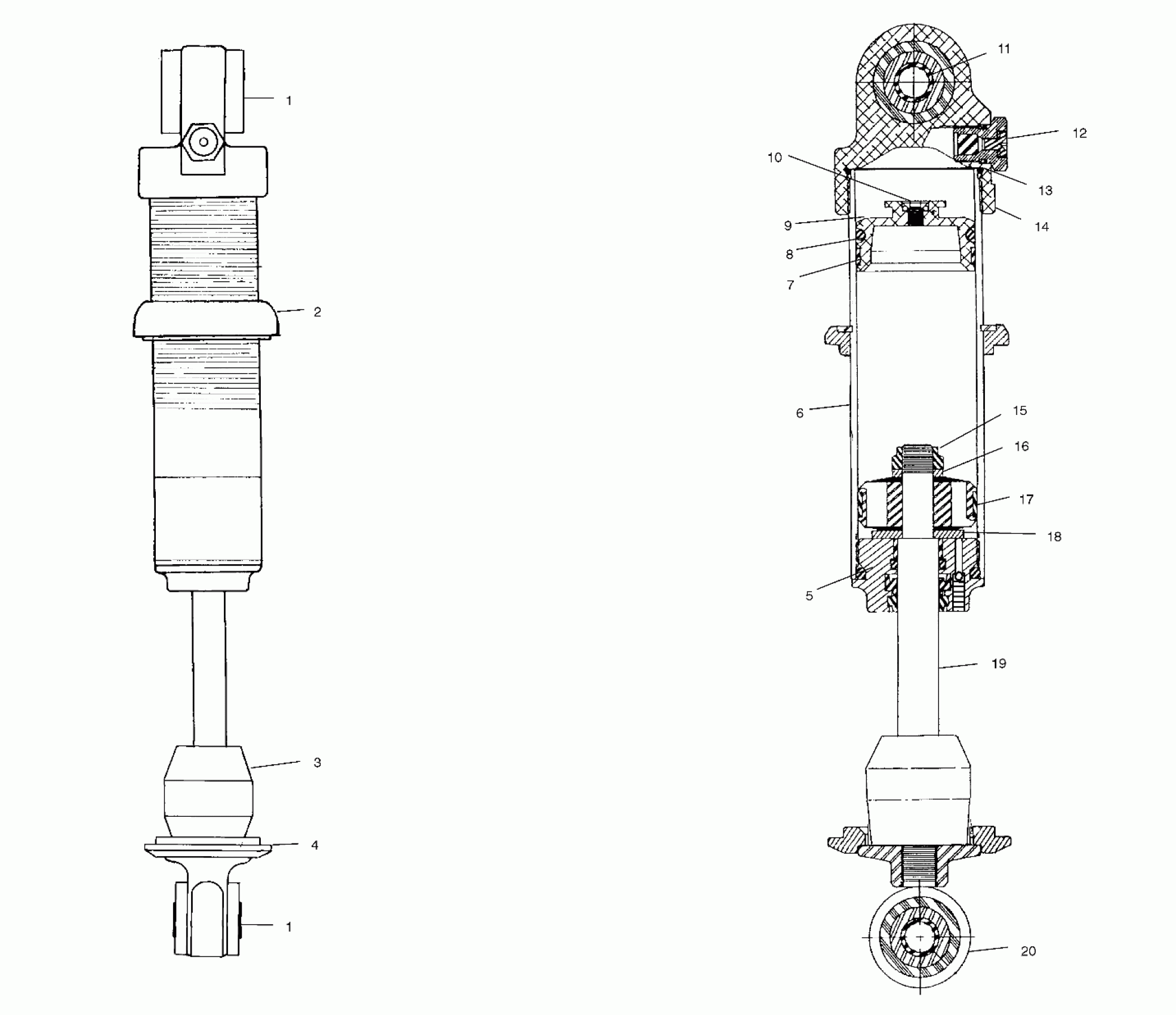

Polaris 600 XC SP (EV) - S00SP6ES FOX SHOCK - IFS - S00SP6ES (4954045404b013) Diagram
#
Description
Price
-
KIT,VALV.PISTON,(FOX SHOCK)
2200618
Unavailable
-
SHOCK-IFS,IFP,XC-10
7041801
Unavailable
1
BUSHING,EYELET
1500137
$24.99
1
BUSHING,EYELET
1500137
$24.99
2
RING,SPRING PRELOAD,ADJ
5432304
Unavailable
3
BUMPER,JOUNCE
5410855
$39.19
4
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
5
O-RING,(10).103W-1.299ID (Outer)
1500020
$10.63
5
O-RING INNER (10) (Inner)
1500021
$10.99
5
Screw
1500070
$6.39
5
BALL, (FOX)
1500071
$6.76
5
WIPER INNER Substituted by 1500266
1500025
$24.27
5
WIPER,CLR,OUTER (Outer)
1500024
Unavailable
5
BEARING ASM,(.900 W/BLEED)
1500090
Unavailable
6
BODY,1.46X8.18 TLG 204-04-004
1500289
$62.39
7
RING,PISTON,FLOATING,FOX
1500006
$19.99
8
O-RING,ENDCAP,FOX,(10)
1500003
$8.89
9
PISTON
1500011
$59.99
10
Screw
1500018
$5.56
10
O-RING,DRUM OUTER
1500022
Unavailable
11
BUSHING, (1.16 IN.)
5020613
Unavailable
12
VALVE ASM,AIR Substituted by 1500014
1500072
Unavailable
12
VALVE ASM,AIR
1500014
$69.99
12
Screw
1500019
$6.39
12
O-RING,OUTER
1500023
$2.84
13
O-RING,.103W-1.549ID
1500108
$10.99
14
BODY,CAP-1.46X7/16 804-00-004
1500288
Unavailable
15
NUT,LOCK
1500016
$12.79
16
BUSHING,BACKUP
1500015
$6.76
17
DAMPER,PISTONRING,FOX
1500002
$31.99
18
PLATE,TOP OUT
1500017
$20.22
19
SHAFT-.498X7.93 229-03-036
1500290
Unavailable
20
EYELET, BILLET
1500129
Unavailable
