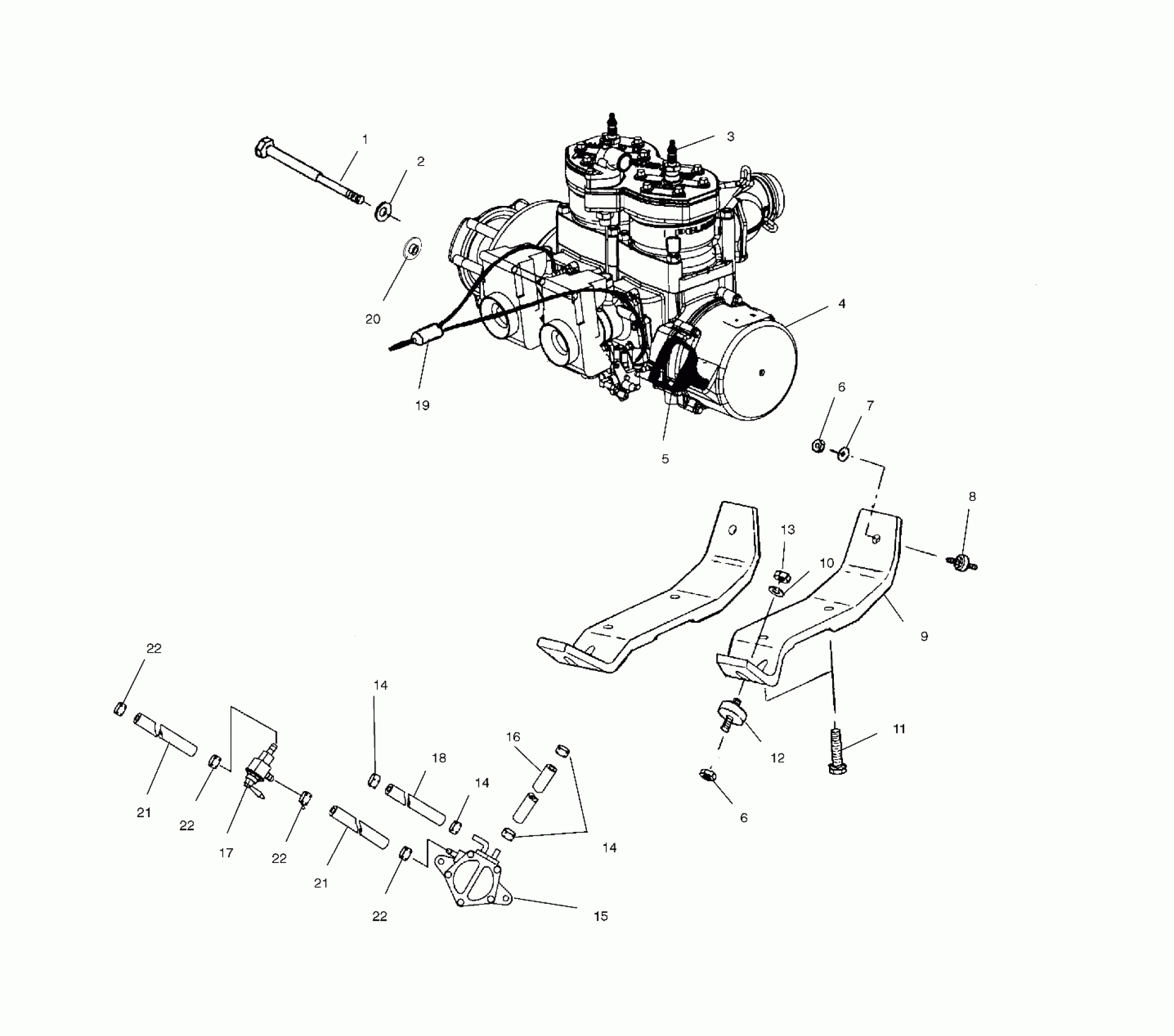

Polaris 600 XC SP (EV) - S00SP6ES ENGINE MOUNTING - S00SP6ES (4954045404c006) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

SPARKPLUG-RN57YC(3) Substituted by 3070190

30-701-84

Unavailable

4

SHORT BLOCK S60-44-00 EV [Cannot Purchase as Assembly] (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft asse

2201531

Unavailable

5

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

6

NUT,FLEXLOCK,(10)

7547008

$6.39

6

NUT,FLEXLOCK,(10)

7547008

$6.39

7

WASHER(10)

7555806

$1.49

8

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

9

STRAP,LH,ENG.MOUNT

5131876

$66.99

9

STRAP,RH,ENG.MOUNT

5131877

$66.99

10

WASHER(10)

7555893

$1.49

11

Screw

7517399

$8.99

12

MOUNT,ENG.

3110061

$84.99

13

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

PUMP,FUEL,1 OUTLET

2520135

Unavailable

16

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

VALVE,FUEL SHUTOFF

7052211

Unavailable

18

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

19

CABLE,THROTTLE,W/OIL,38MM.RACK

7080733

Unavailable

20

WASHER,CLUTCH RET.

5131872

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
