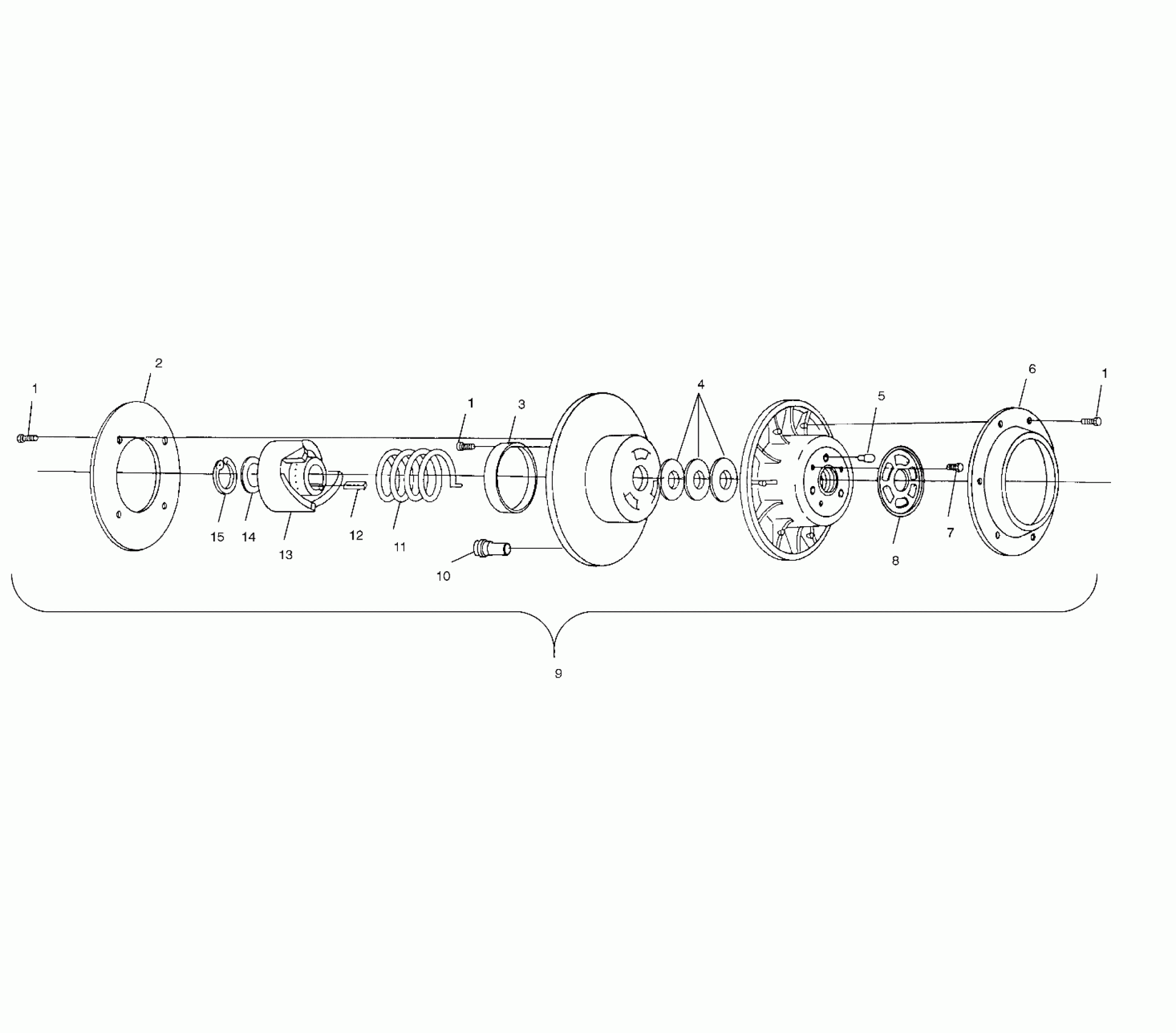

Polaris 600 XC SP (EV) - S00SP6ES DRIVEN CLUTCH - S00SP6ES (4954045404c005) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

BUSHING,D.U.

3569803

Unavailable

4

WASHER(10) (.03)

7556804

Unavailable

4

WASHER(10) (.02)

7555898

Unavailable

4

WASHER(10) (.025)

7556076

Unavailable

4

WASHER,DRIVE CLUTCH(10) (.075)

7555865

Unavailable

5

PIN, CLUTCH

5020653

$34.99

6

CAP-DRIVEN,VENTED

5243157

Unavailable

7

SCREW(10)

7515133

$3.99

8

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

9

CLUTCH,DRVN,R8,1-7/16,SLV Substituted by 1321927 (Incl. 1,3-5,7-10,12,14,15)

1321869

Unavailable

10

BUTTON-RAMP,(10)

5430466

$6.46

11

SPRING,CLUTCH,SVR.

7041499

$56.65

12

KEY SQUARE(10)

7721103

$5.65

13

RAMP,DRIVEN,R8,MACH

5131294

Unavailable

14

WASHER(10)

7556804

$1.49

15

RING,RETAINING(10)

7714804

$9.59
