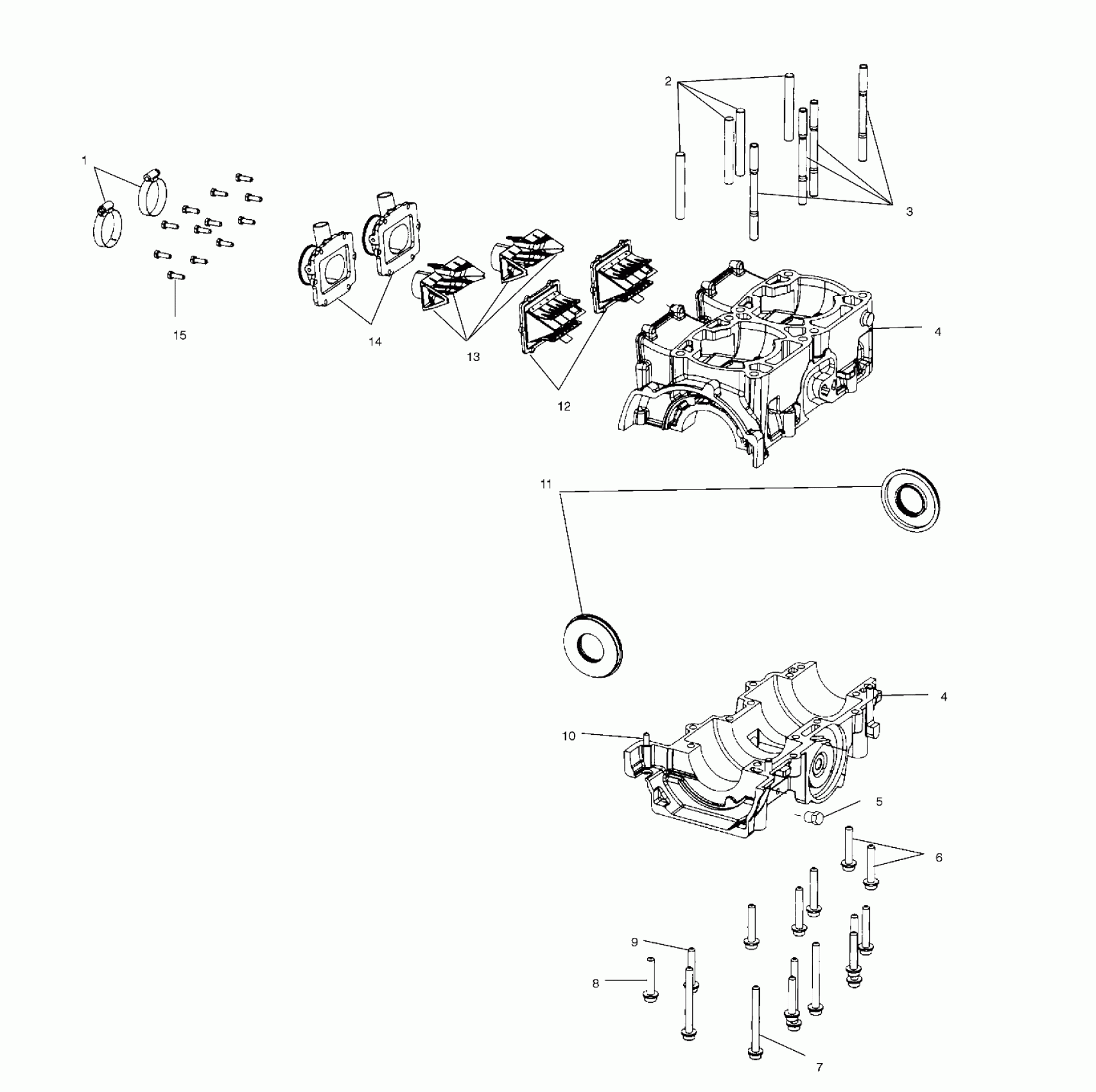

Polaris 600 XC SP (EV) - S00SP6ES CRANKCASE - S00SP6ES (4954045404c008) Diagram

CLAMP,HOSE,SS,(10)

7080681

$9.59

STUD,CYL.FLG,81.0MM SPS Substituted by 5132196

5131767

$20.48

STUD,CYL.FLG,118.5MM SPS Substituted by 5132197

5131766

$21.27

CRANKCASE,TWN Substituted by 2201697 (Incl. 2,3,5-10)

2201556

$591.27

CRANKCASE,TWN Substituted by 2201697 (Incl. 2,3,5-10)

2201556

$591.27

PLUG Substituted by 7052311

7051529

$15.99

SCREW,M8X1.25X55

7517448

$2.39

SCREW

7517244

Unavailable

SCREW

7516825

$5.59

SCREW

7517214

$7.03

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

SEAL,FLANGED

5411394

$29.99

VALVE,REED

1201825

$134.99

STUFFER,REED,75.5MM(38MM.CARB)

5432852

Unavailable

ADAPTER,CARB,TM/RACK,440 BASE

1253217

Unavailable

SCREW,(10)

7517398

$3.19
