Description

Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B8, Ref. 17)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515551

$6.39

4

NUT(10)

7542404

$1.59

5

DESC NOT_AVAILABLE

3514334

Unavailable

5

DESC NOT_AVAILABLE

3514334

Unavailable

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPROCKET-23T,3/4W,15 SPL,HV,PM

3221099

$54.99

8

PIN,CHAIN TIGHTENER

7662210

Unavailable

8

BEARING

3553002

$11.99

8

WHEEL,C/C IDLER

5630123

Unavailable

8

WASHER THRUST(10)

7558702

$1.59

8

TIGHTENER,CHAINCASE (Incl. the following)

1332213

$159.99

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

GASKET,CHAINCASE,LONG

5411207

$20.22

13

COVER,CHAINCASE

5630691

$115.99

14

SCREW(10)

7512242

$2.39

15

SCREW(10)

7515350

$3.97

16

WASHER(10)

7571618

$6.39

17

SPKT,40T,15T SPL,HYVO,PM

3222099

Unavailable

18

CHAIN-HYVO,23-149,70P,34W

3221115

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG(10)

7052115

$5.65

21

CHAINCASE,VENTED

5131455

Unavailable

22

BOLT(10)

7515477

$34.99

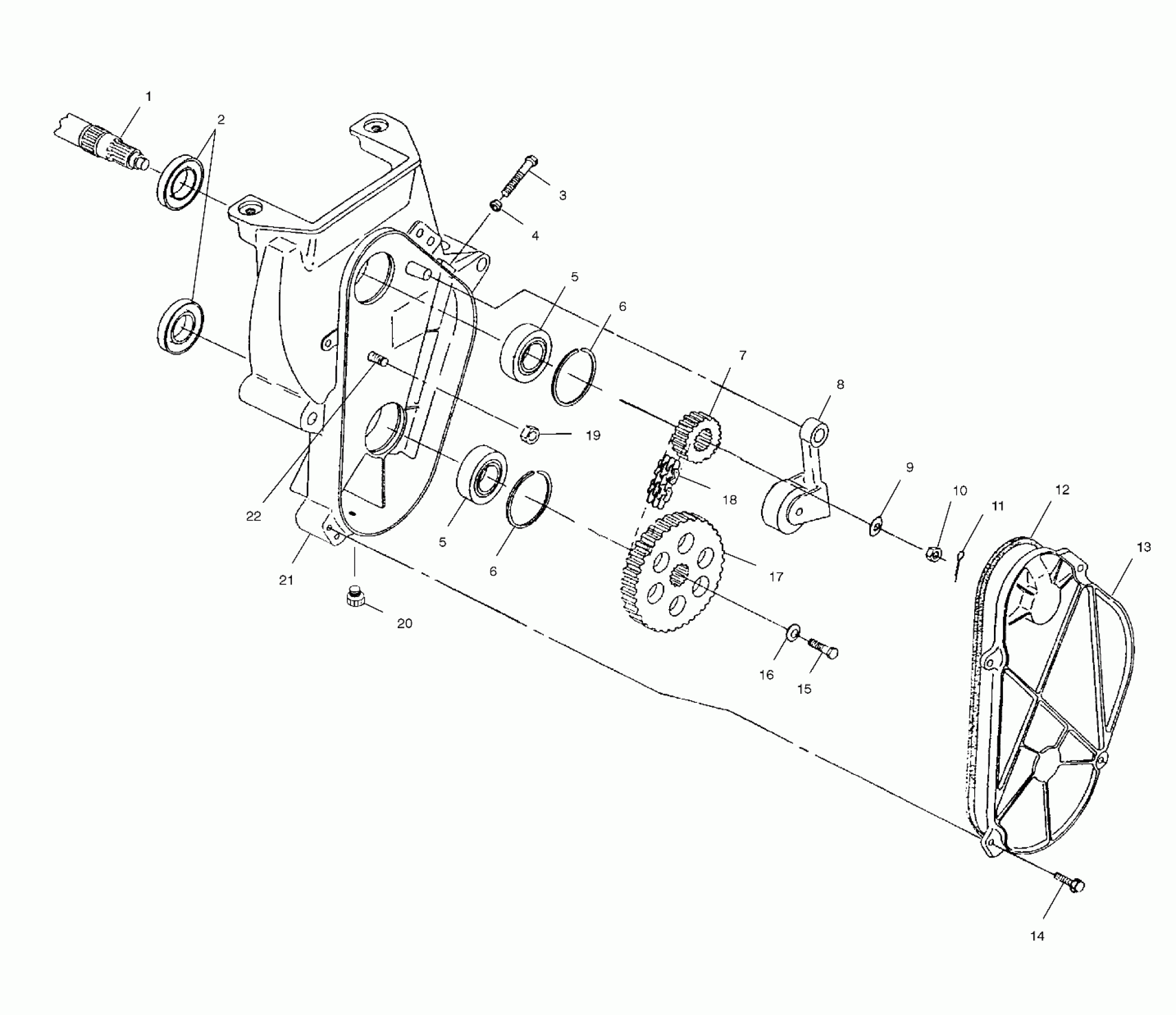

Polaris 600 XC SP (EV) - S00SP6ES CHAINCASE - S00SP6ES (4954045404b007) Diagram

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B8, Ref. 17)

SEAL-OIL

SCREW(10)

NUT(10)

DESC NOT_AVAILABLE

DESC NOT_AVAILABLE

RET.RING-TRUARC(N5000-206)-P

RET.RING-TRUARC(N5000-206)-P

SPROCKET-23T,3/4W,15 SPL,HV,PM

PIN,CHAIN TIGHTENER

BEARING

WHEEL,C/C IDLER

WASHER THRUST(10)

TIGHTENER,CHAINCASE (Incl. the following)

WASHER, SLOTTED(10)

NUT

COTTER PIN(10)

GASKET,CHAINCASE,LONG

COVER,CHAINCASE

SCREW(10)

SCREW(10)

WASHER(10)

SPKT,40T,15T SPL,HYVO,PM

CHAIN-HYVO,23-149,70P,34W

NUT-HEX-3/8-16 A ZTB NYL

PLUG(10)

CHAINCASE,VENTED

BOLT(10)
