BRAKE - S00SP6ES (4954045404a014)

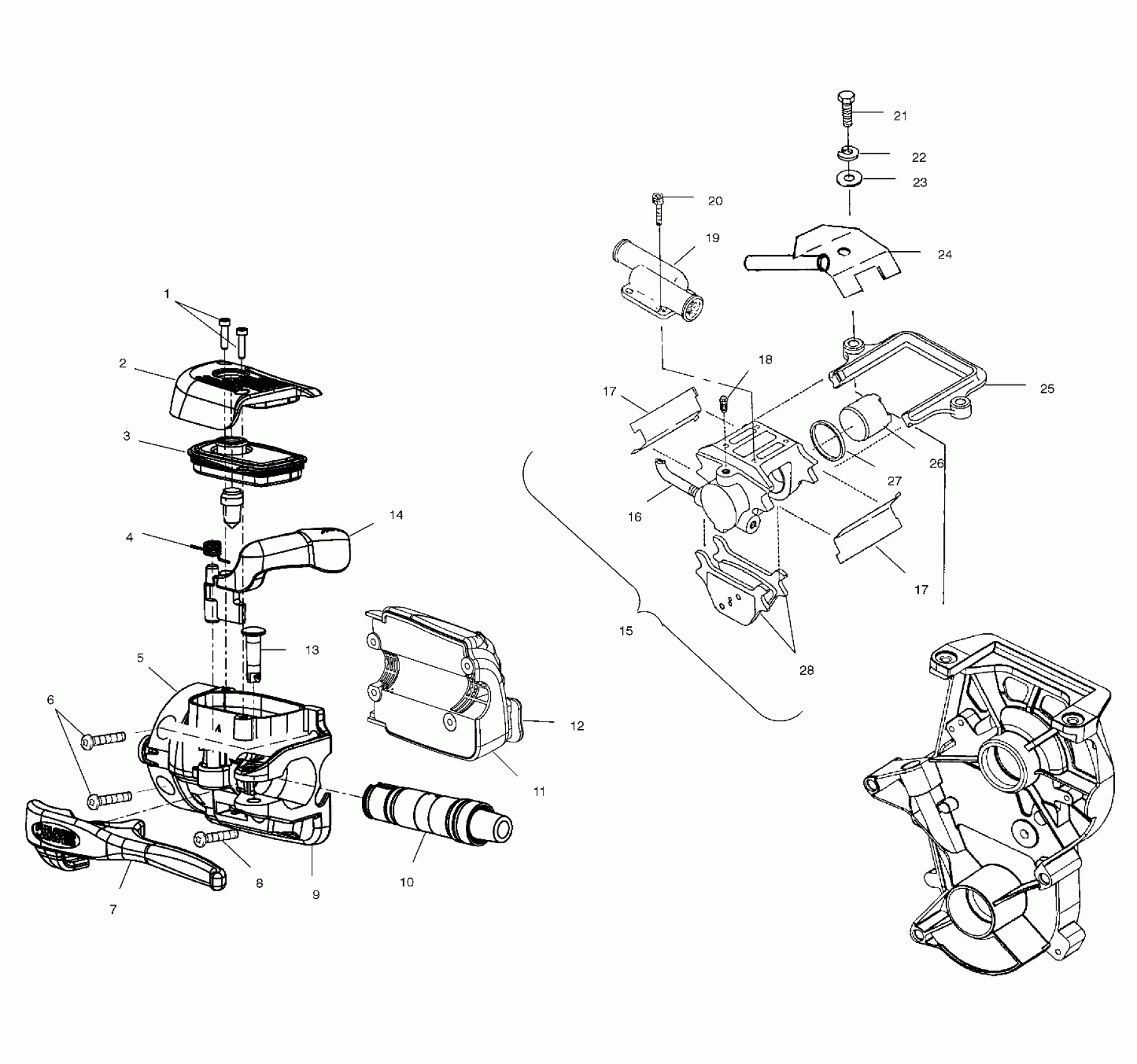

Polaris 600 XC SP (EV) - S00SP6ES BRAKE - S00SP6ES (4954045404a014) Diagram
#
Description
Price
1
KIT,COVER SCREW,(HAYES)
2201254
$19.99
2
KIT,COVER ASM,(HAYES) (Incl. 1,3)
2201255
$89.03
3
GASKET
-------
Unavailable
4
KIT,PARKLEVER SPRING
2201250
$24.27
5
MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)
2050087
$304.98
6
SCREW(10)
7517441
$2.39
7
LEVER AND PIVOT PIN,HAYES,KIT Substituted by 2201943
2201569
$52.60
8
SCREW(10)
7517566
$3.99
9
KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948
2201249
$304.98
9
SWITCH,BRAKE LIGHT
4010157
Unavailable
10
KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944
2201248
Unavailable
11
CONTROL ASM,LH,(BASIC)
2010167
$93.08
12
BUTTON SWITCH HI/LO
5433291
Unavailable
13
KIT,PIVOT PIN,(HAYES) Substituted by 2201946
2201252
Unavailable
14
KIT,PARKLEVER & SPRING (Incl. 4)
2201251
$44.51
15
BRAKE CALIPER,HD,LIQ,NOSW (Incl. 26,27,28)
1910344
Unavailable
16
LINE-BRAKE,HYBRID
1910313
Unavailable
17
KIT,CLIP SPRING (Qty. 2)
2200467
Unavailable
17
KIT,CLIP SPRING (Qty. 2)
2200467
Unavailable
18
KIT, INLET
1930735
$9.11
19
COOLER,WATER,BRAKE
1930728
$62.39
19
GASKET,BRK.COOLER
2201024
$7.99
20
PK/4,SCREW SET (Pkg. of 4)
1930729
$29.49
21
BOLT(10)
7515521
$3.99
22
WASHER(10)
7552603
$1.49
23
WASHER(10)
7555806
$1.49
24
GUIDE,ROPE,CHAINCASE-Z
1012581
Unavailable
25
KIT,CALIPER BRKT.
1930733
Unavailable
26
KIT, PISTON SEAL (Incl. 27)
1930734
Unavailable
27
SEAL
2200466
$32.37
28
KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 17)
2201430
Unavailable
