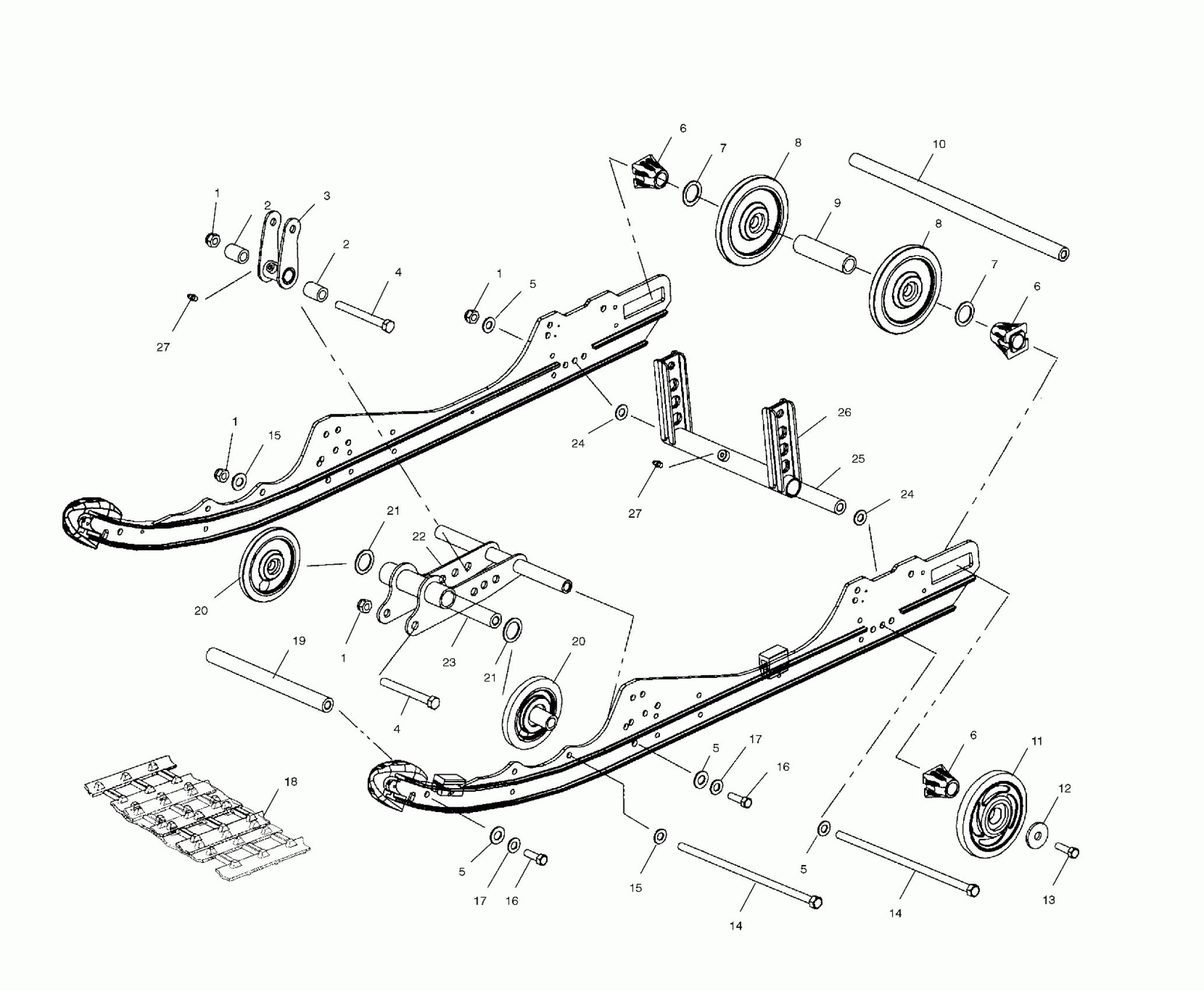

Polaris 600 XC SP EDGE - S00NP6ES SUSPENSION - S00NP6ES (4958115811B011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BUSHING

5131940

$3.19

2

BUSHING

5131940

$3.19

3

SHOCK PIVOT ARM,2.5,BLK

1541477-067

$56.99

4

BOLT(10)

7515417

$4.79

4

BOLT(10)

7515417

$4.79

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING(10)

7555918

$1.59

7

BUSHING(10)

7555918

$1.59

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

9

SPACER-IDLER, CENTER

5333283

$19.99

10

SHAFT-IDLER,.784X13.22,7075

5132066

$43.99

11

BEARING,CHAINCASE

3514305

$19.99

11

RET.RING-TRUARC

7718407

$4.79

11

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

12

WSHR,.406X1.25X.125(10)

7556130

$6.39

13

BOLT,3/8-16X1.25(10)

7517731

$1.49

14

Screw

7517353

Unavailable

14

Screw

7517353

Unavailable

15

WASHER(10)

7555797

$3.99

15

WASHER(10)

7555797

$3.99

16

SCREW,(10)

7517247

$3.19

16

SCREW,(10)

7517247

$3.19

17

WASHER(10)

7552603

$1.49

17

WASHER(10)

7552603

$1.49

18

Clip, Slide

5241473

$8.79

18

Clip, Guide

5241474

Unavailable

18

TRACK,121"X15(.91 LUG)

5411369

Unavailable

19

SHAFT,PIVOT ARM

5020723

$29.99

20

WHEEL,5.35,.984 ID,W/ HOLE

1541485

$72.84

20

WHEEL,5.35,.984 ID,W/ HOLE

1541485

$72.84

21

MACHINERY BUSHING(10)

7556301

$3.19

21

MACHINERY BUSHING(10)

7556301

$3.19

22

SHOCK MNT,BLK

1541463-067

Unavailable

23

SHAFT,.390X.750X.8665

5132490

Unavailable

24

WASHER(10)

7555893

$1.49

24

WASHER(10)

7555893

$1.49

25

SHAFT

5333404

$24.27

26

REAR PIVOT ARM,3.75,BLK

1541478-067

$27.70

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79
