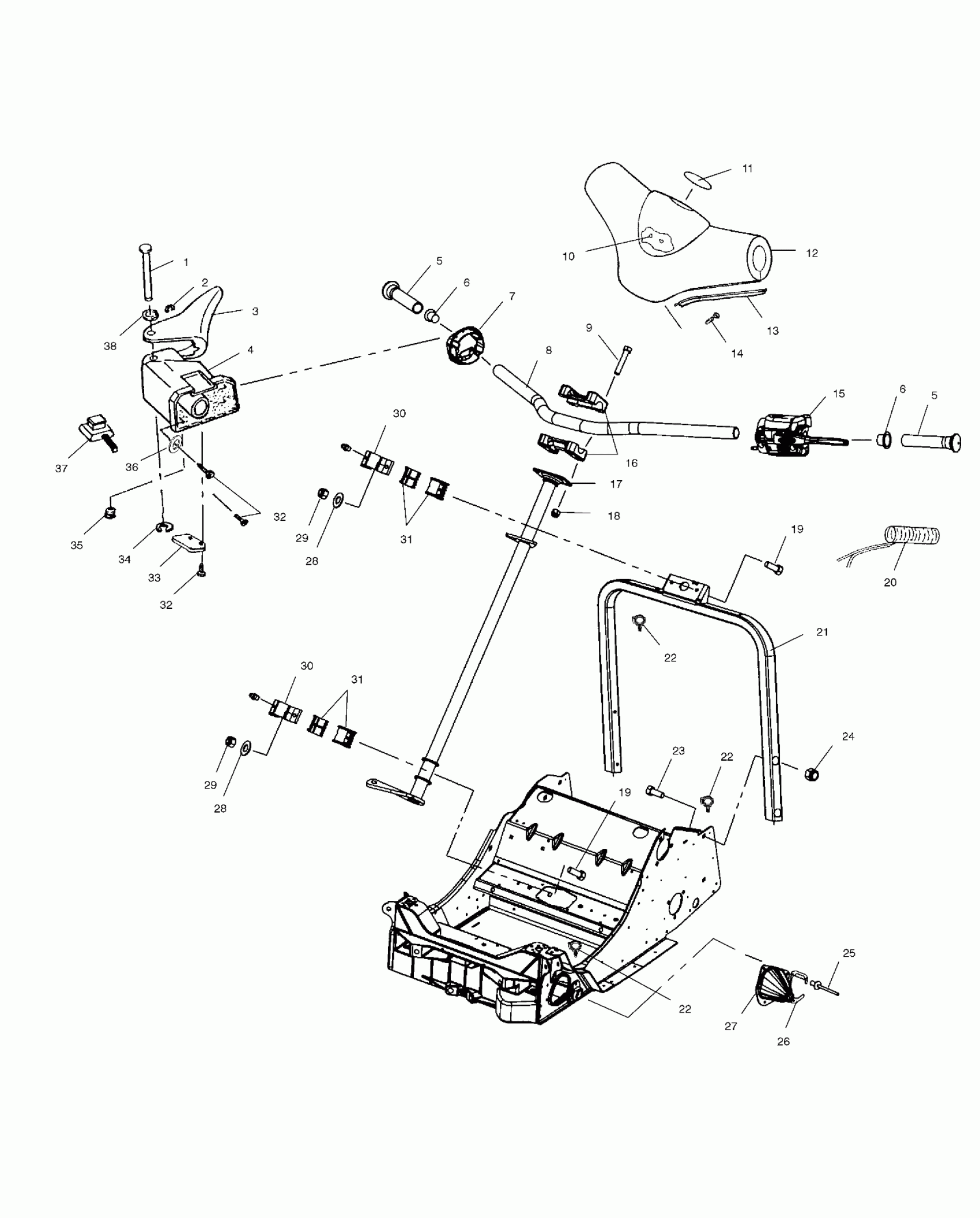

Polaris 600 XC SP EDGE - S00NP6ES STEERING - HANDLEBAR - S00NP6ES (4958115811B005) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

THROTLE,LEVER,35.5MM

5432970

$29.03

3

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

4

BLOCK,THROTTLE/BRAKE

5431592

$49.99

5

GRIP,H'BAR,SNOW

5432634

$24.27

5

GRIP,H'BAR,SNOW

5432634

$24.27

6

PLUG, OVERFLOW,(10)

5431096

$2.02

6

PLUG, OVERFLOW,(10)

5431096

$2.02

7

ADAPTER-BLOCK,THROTTLE

5433345

$15.99

8

HANDLE BAR,BLK

5243355-067

$94.99

9

SCREW,(10)

7517238

$4.79

10

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

11

EMBLEM-"STAR",BEZEL,HANDLE BAR

5433522

Unavailable

12

COVER-HANDLEBAR Substituted by 5433159-070

5433159

$77.99

13

SLIDE-HANDLEBAR COVER,RH Substituted by 5433160

5433161

$28.32

13

SLIDE-HANDLEBAR COVER,LH Substituted by 5433160-070

5433160

$28.32

14

DART-CLIP NYLON,BLK

4010287

$3.99

15

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

16

BLOCK,HANDLEBAR

5630187-067

$44.99

17

WELD-STEERING POST,BLK

1823187-067

Unavailable

18

NUT-LOCK(10)

7542122

$1.49

19

BOLT-CARR 5/16-X1"GR5 Y LO(10)

7517579

$6.39

19

BOLT-CARR 5/16-X1"GR5 Y LO(10)

7517579

$6.39

20

HEATER,GRIP,LO/MED/HI

2460677

$60.70

21

STEERING HOOP,BLK Substituted by 1013602-067

1013068-067

$69.84

22

CLIP, PLASTIC(10)

4020139

$4.79

22

CLIP, PLASTIC(10)

4020139

$4.79

22

CLIP, PLASTIC(10)

4020139

$4.79

23

BOLT,(10)

7517428

$2.39

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

25

RIVET-3/16-.090-.290

7661637

$1.49

26

PLATE,TIE ROD BOOT

5244470

Unavailable

27

BOOT,TIE ROD,L.H.

5433532

Unavailable

27

BOOT,TIE ROD,R.H.

5433533

Unavailable

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

30

BRKT,STEER.POST

5131841

Unavailable

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

30

BRKT,STEER.POST

5131841

Unavailable

31

BUSHING,STEER.POST

5432785

$6.39

31

BUSHING,STEER.POST

5432785

$6.39

32

SCREW-SEMS(10)

7511848

$3.99

32

SCREW-SEMS(10)

7511848

$3.99

33

HOLDER-WIRE

5432261

$24.27

34

RING-RETAINING EXTERNAL

7710401

$3.99

35

SCREW(10)

7512465

$3.99

36

RIVET BURR(50)

7555727

$1.49

37

SWITCH,AUX.SHUT-OFF

4110106

$94.99

38

WASHER(10)

7555730

$3.99
