Description

Price

1

TORQUE-ARM,REAR,BLK Substituted by 1541561-067

1541433-067

$140.54

2

NUT LOCK(10)

7542411

$3.19

3

BOLT(10) Substituted by 7515492

7512410

Unavailable

4

SHAFT-ARM

5333758

Unavailable

5

BUSHING-ARM

3514331

$19.99

5

BUSHING-ARM

3514331

$19.99

6

BOLT(10)

7515415

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555893

$1.49

9

WASHER(10)

7552603

$1.49

10

Bolt

7517435

$14.99

11

ARM,ASM,RTA (Incl. 5)

1541461

$119.99

12

NUT-LOCK(10)

7542439

$1.49

12

NUT-LOCK(10)

7542439

$1.49

12

NUT-LOCK(10)

7542439

$1.49

13

SPACER,WHEEL

5132388

Unavailable

14

WHEEL ASM,PLAIN,BLK.

1590278

$48.56

15

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

16

SLEEVE,TORS.SPRING

5433007

Unavailable

17

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

18

CLIP-PUSH ON

7080394

$2.39

19

Screw

7517232

$19.99

20

SHAFT,.740X.390X7.055,6066

5333873

$11.11

21

SPRING-TORSION,.375/77�,LH,BLK (Opt)

7041631-067

$140.38

21

SPRING-TORSION,.375/77�,RH,BLK (Opt)

7041632-067

$140.38

21

SPRING-TORSION,.347SQ/77�LHBLK (Opt)

7041627-067

$135.54

21

SPRING-TORSION,.347/77�,RH,BLK (Opt)

7041628-067

$135.54

21

SPRNG,TRSN.375SQ/90�LH,BLK (Std)

7041895-067

$85.54

21

SPRNG,TRSN.375SQ/90�RH,BLK (Std)

7041896-067

Unavailable

21

SPRNG-TRSN,.405 SQ/77�,LH,BLK (Opt)

7041655-067

$94.44

21

SPRNG-TRSN,.405 SQ/77�,RH,BLK (Opt)

7041656-067

Unavailable

22

BOLT(10)

7515514

$7.19

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

BUSHING,.378X.616X1.12

5132391

$7.99

24

BUSHING,.378X.616X1.12

5132391

$7.99

24

BUSHING,.378X.616X1.12

5132391

$7.99

25

SHOCK ROD,12.850,BLK

1541479-067

$44.51

25

SHOCK ROD,12.850,BLK

1541479-067

$44.51

26

BOLT(10)

7515538

$6.39

27

BUSHING,NUT.616X1.12X.875

5132390

$23.99

28

SHOCK,R/T,FOX,PPS

7041846

Unavailable

29

BUSHING

5010422

$11.99

30

SPACER,.397X.562X1.250

5333904

Unavailable

31

FITTING-LUBRICATION 1/4-28

7080424

$4.79

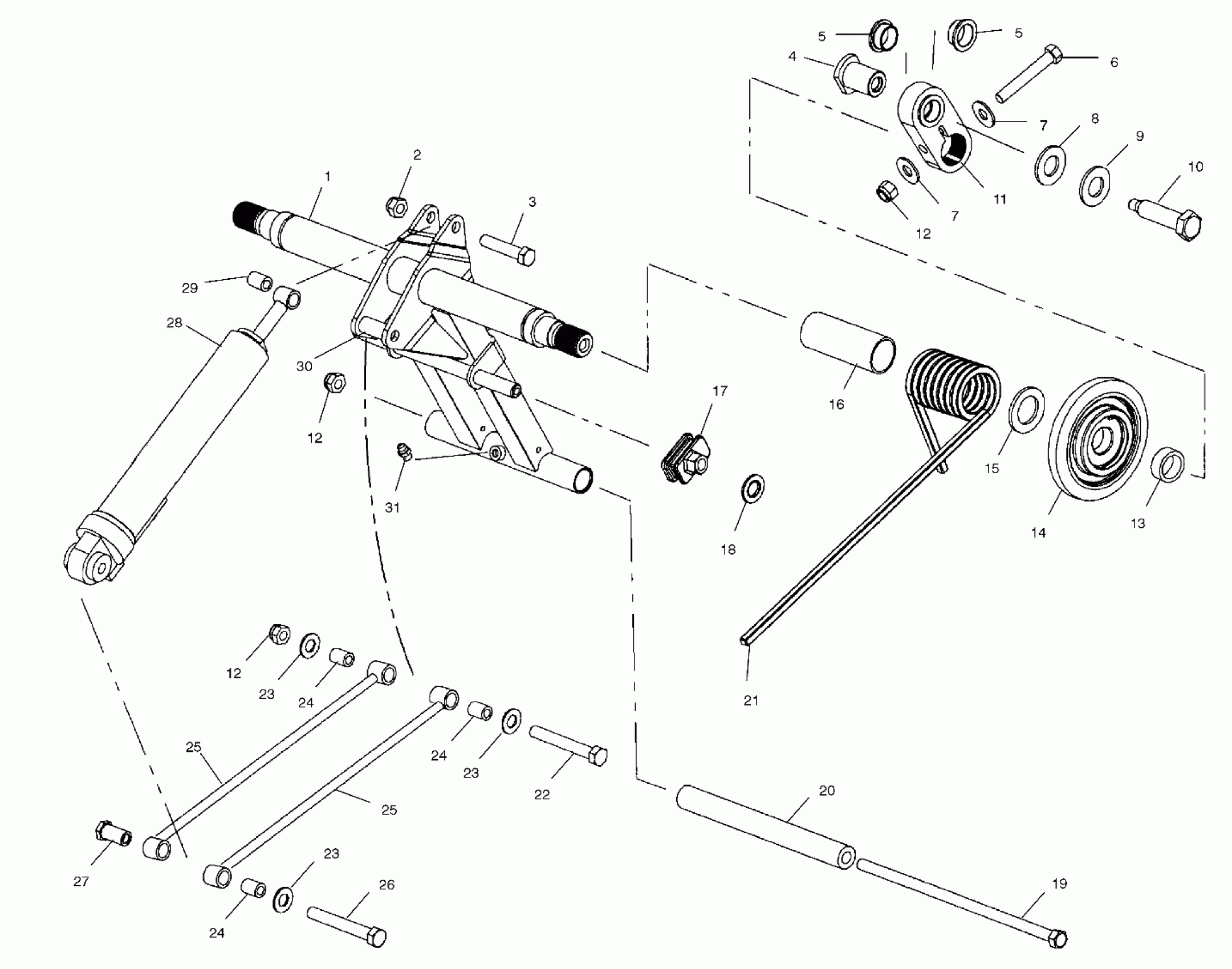

Polaris 600 XC SP EDGE - S00NP6ES REAR TORQUE ARM - S00NP6ES (4958115811B013) Diagram

TORQUE-ARM,REAR,BLK Substituted by 1541561-067

NUT LOCK(10)

BOLT(10) Substituted by 7515492

SHAFT-ARM

BUSHING-ARM

BUSHING-ARM

BOLT(10)

WASHER(10)

WASHER(10)

WASHER(10)

WASHER(10)

Bolt

ARM,ASM,RTA (Incl. 5)

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

SPACER,WHEEL

WHEEL ASM,PLAIN,BLK.

WASHER, THRUST(10) Substituted by 7555871

SLEEVE,TORS.SPRING

ROLLER-SPRING,ADJ,SQUARE,X10

CLIP-PUSH ON

Screw

SHAFT,.740X.390X7.055,6066

SPRING-TORSION,.375/77�,LH,BLK (Opt)

SPRING-TORSION,.375/77�,RH,BLK (Opt)

SPRING-TORSION,.347SQ/77�LHBLK (Opt)

SPRING-TORSION,.347/77�,RH,BLK (Opt)

SPRNG,TRSN.375SQ/90�LH,BLK (Std)

SPRNG,TRSN.375SQ/90�RH,BLK (Std)

SPRNG-TRSN,.405 SQ/77�,LH,BLK (Opt)

SPRNG-TRSN,.405 SQ/77�,RH,BLK (Opt)

BOLT(10)

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

BUSHING,.378X.616X1.12

BUSHING,.378X.616X1.12

BUSHING,.378X.616X1.12

SHOCK ROD,12.850,BLK

SHOCK ROD,12.850,BLK

BOLT(10)

BUSHING,NUT.616X1.12X.875

SHOCK,R/T,FOX,PPS

BUSHING

SPACER,.397X.562X1.250

FITTING-LUBRICATION 1/4-28
