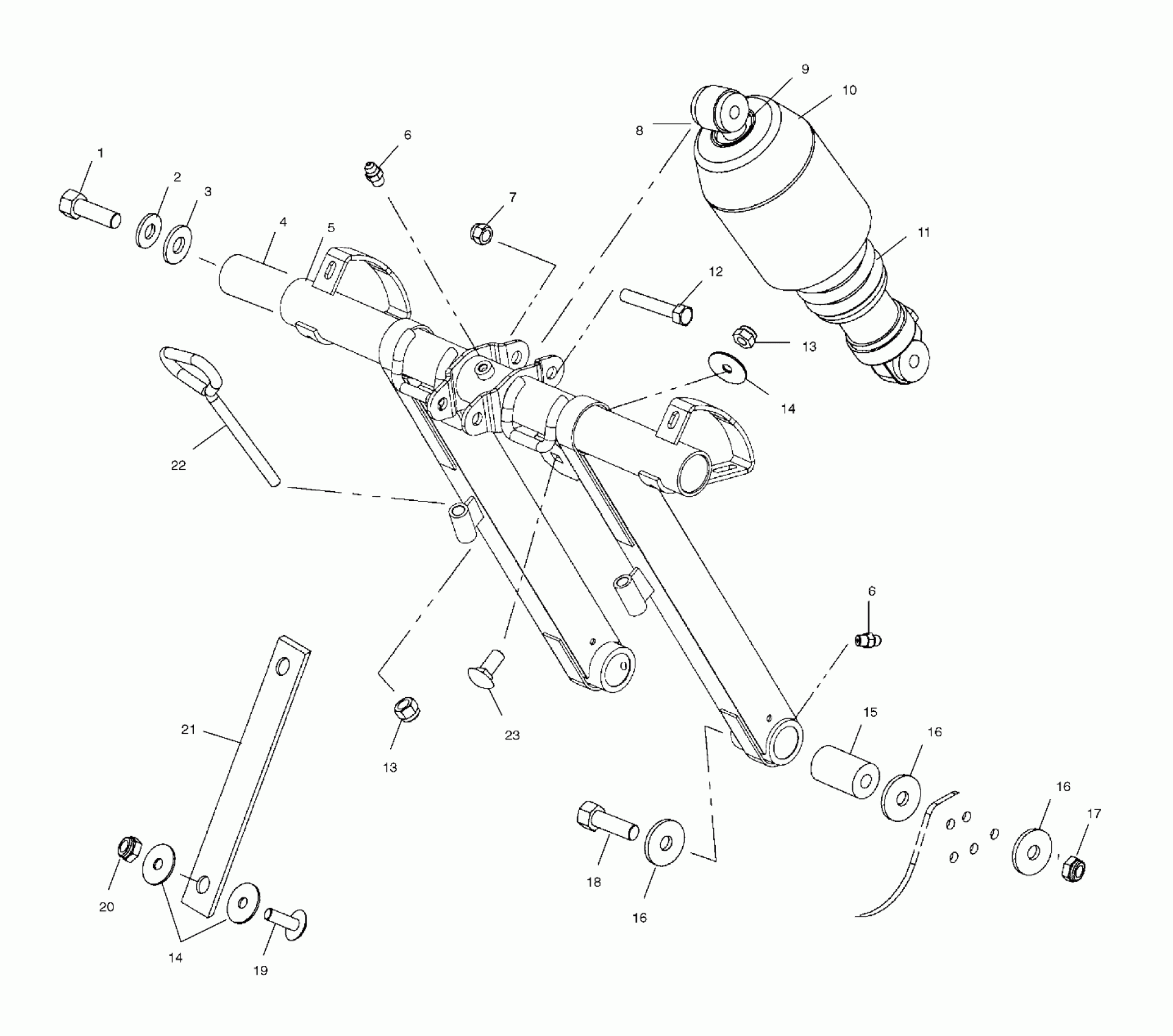

Polaris 600 XC SP EDGE - S00NP6ES FRONT TORQUE ARM - S00NP6ES (4958115811B012) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT-FTA,UPPER

5132067

$59.52

5

TRQ.ARM,WELD,FRT,EDGE,BLK

1541465-067

$267.99

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

NUT-LOCK(10)

7542439

$1.49

8

SHOCK,FRONT TRACK,FOX

7041847

Unavailable

9

RETAINER,SPRING,SLOTTED

5020618

$24.99

10

SHIELD-SPRING,3.00

5433503

$24.27

11

SPRING,COMP,150#/175#,BLK

7041914-067

$144.99

12

BOLT(10)

7515415

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

WASHER(10)

7556083

Unavailable

14

WASHER(10)

7556083

Unavailable

15

SHAFT,.453X.999X1.60

5132387

Unavailable

16

WASHER,.483X1.37X.083

7556156

$4.79

16

WASHER,.483X1.37X.083

7556156

$4.79

16

WASHER,.483X1.37X.083

7556156

$4.79

17

NUT-7/16-20,NYLOK,Y

7547066

$1.59

18

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

19

SCREW ,(10)

7517313

$4.79

20

NUT,NYLOC,(10)

7542344

$3.99

21

STRAP-LIM,FRT,QA

5411631

Unavailable

22

BOLT,EYE

7010050

Unavailable

23

BOLT(10)

7512377

$4.79
