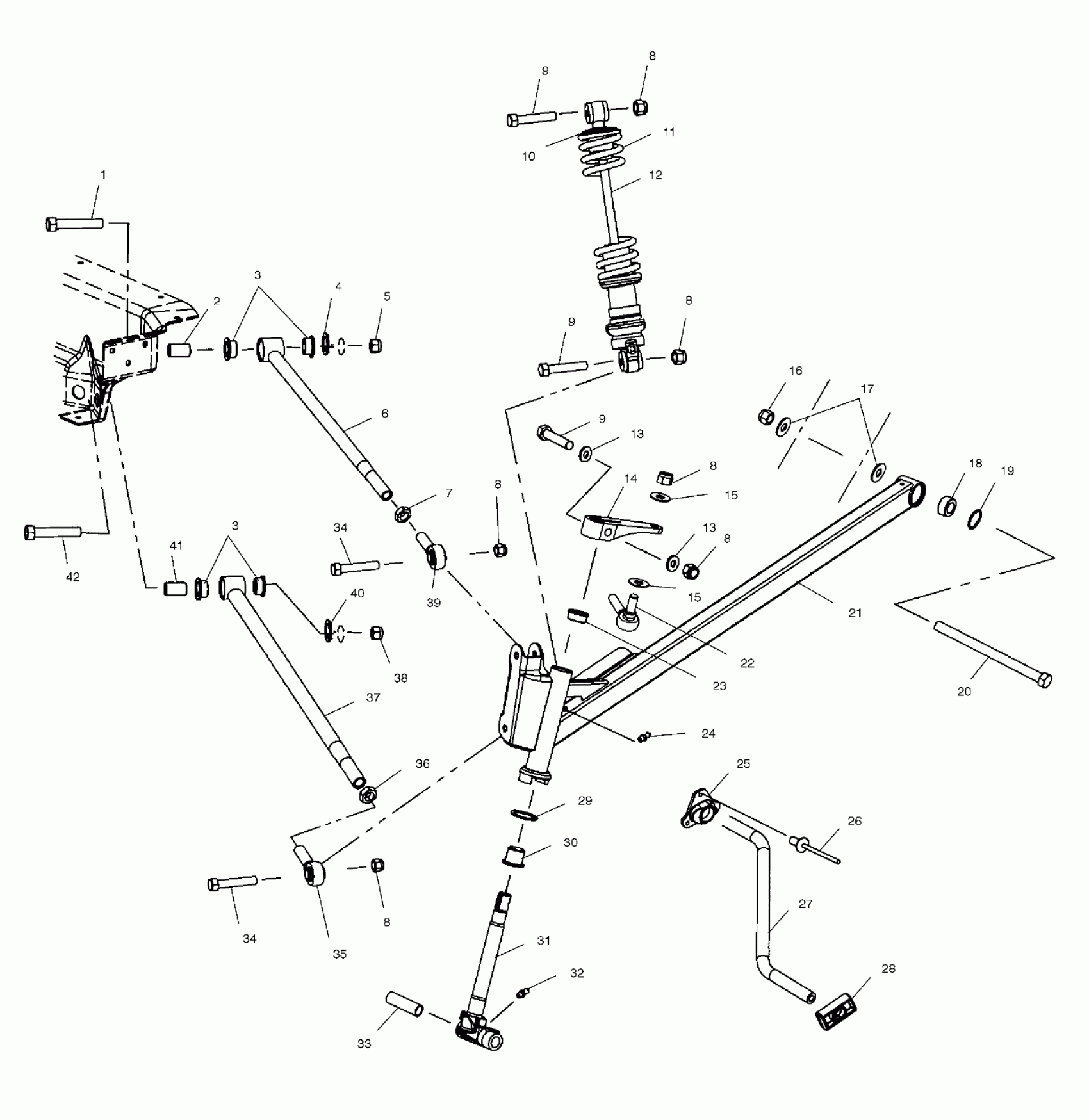

Polaris 600 XC SP EDGE - S00NP6ES FRONT SUSPENSION - S00NP6ES (4958115811B001) Diagram

#

Description
Price

1

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

2

BUSHING

5132078

$4.63

3

BUSHING,OUT.RAD.ROD PIVOT

5432918

$3.03

3

BUSHING,OUT.RAD.ROD PIVOT

5432918

$3.03

4

WASHER, FLAT(10)

7555852

$2.39

5

NUT, LOCK,(10)

7542503

$10.39

6

RADIUS ROD,UPPER,BLK

1820679-067

$104.99

7

NUT JAM(10)

7542520

$2.39

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRG,CMP,2.75X13,68/160BLK

7041927-067

Unavailable

12

SHOCK,GAS,IFP,11.02X16.25

7041926

Unavailable

13

WSHR-.813X.406X.105-Y

7555832

$2.39

13

WSHR-.813X.406X.105-Y

7555832

$2.39

14

ARM-STEERING,MACHINED,EDGE

5132288

$53.59

15

WASHER(10)

7555797

$3.99

15

WASHER(10)

7555797

$3.99

16

NUT-7/16-20,NYLOK,Y

7547066

$1.59

17

WASHER(10)

7555820

$3.99

18

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

19

RING,RETAINING(10)

7710437

$3.19

20

BOLT

7512099

$19.99

21

TRAILING ARM,SVC,LH,RED Substituted by 1820962-293 (Incl. 18,19)

1820787-293

Unavailable

21

TRAILING ARM,SVC,RH,RED Substituted by 1820963-293 (Incl. 18,19)

1820788-293

Unavailable

22

ROD,END-3/8,PL,75�,1.00,RH

7061057

$48.56

23

BUSHING-FLANGE

3573909

$2.39

24

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

BUSHING-TORSION BAR,5/8

5433233

Unavailable

26

RIVET,(50)

7621477

$1.19

27

BAR,TORSION,5/8,42.5,BLK

5243996-067

Unavailable

28

SLIDE-TORSION BAR 5/8

5433235

Unavailable

29

WASHER SPECIAL(10)

7556509

$1.59

30

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

31

SHAFT-SPINDLE,HARDENED,BLK

6230160-067

$134.99

32

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

33

BUSHING,PIVOT,(10)

5010158

$19.99

34

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

34

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

35

ROD END,RADIUS,1/2

7061060

$48.56

36

NUT-JAM(10)

7542711

$2.39

37

RADIUS ROD,LOWER,BLK

1820677-067

$104.99

38

NUT FLEX,(10)

7542703

Unavailable

39

ROD END,RADIUS,7/16

7061061

$48.56

40

WASHER(10)

7555721

$1.49

41

BUSHING-.505X.750X1.215

5132077

$4.63

42

BOLT(10)

7512684

Unavailable
