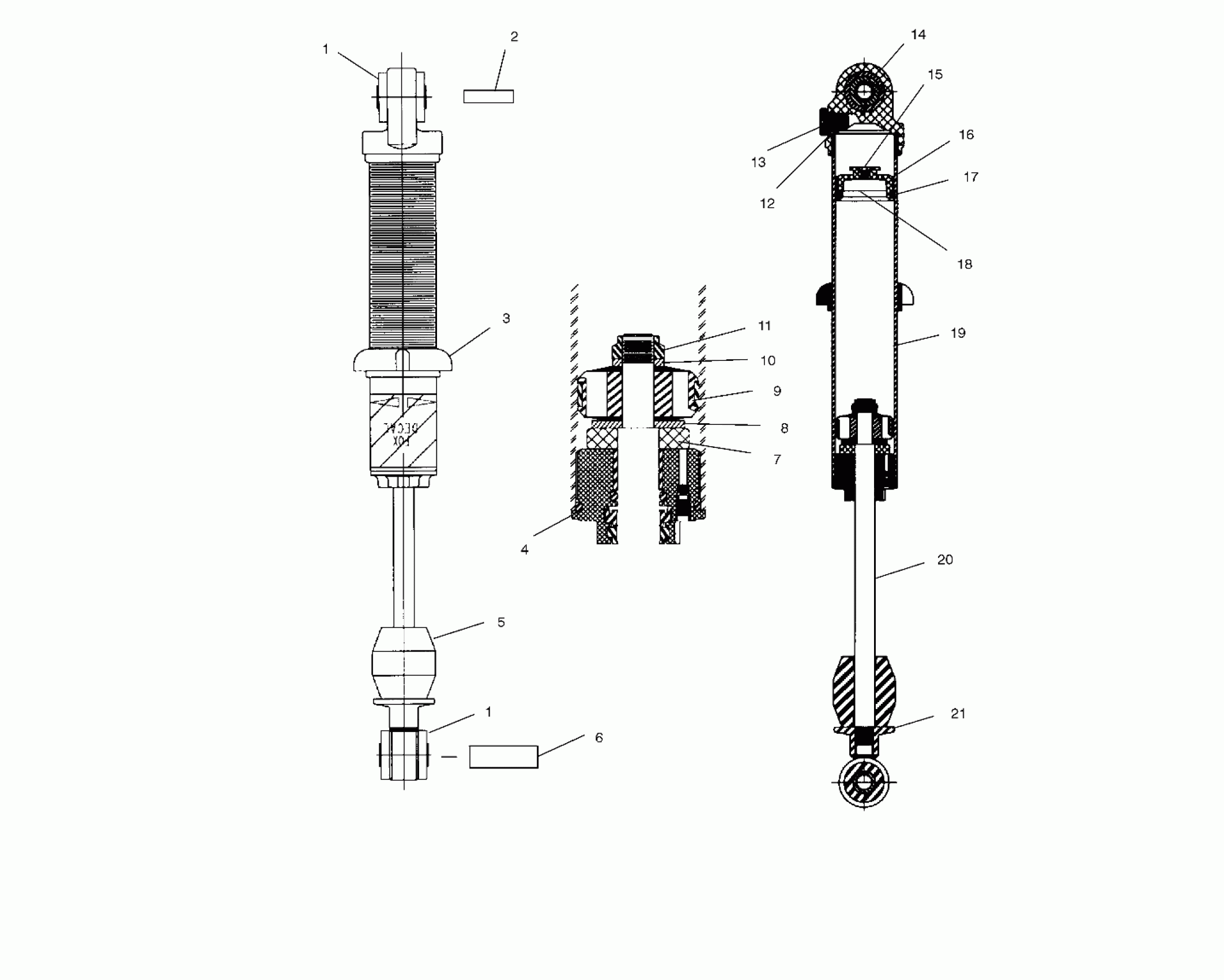

Polaris 600 XC SP EDGE - S00NP6ES FOX SHOCK - IFS - S00NP6ES (4958115811B014) Diagram

#

Description
Price

-

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

-

SHOCK,GAS,IFP,11.02X16.25

7041926

Unavailable

1

BUSHING,EYELET

1500137

$24.99

1

BUSHING,EYELET

1500137

$24.99

2

BUSHING, (1.16 IN.)

5020613

Unavailable

3

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

4

BEARING-ASSEMBLY

1500186

Unavailable

4

O-RING,(10).103W-1.299ID

1500020

$10.63

4

O-RING INNER (10)

1500021

$10.99

4

WIPER.-4300 URETH

1500268

Unavailable

4

U-CUP-4300 URETH,036-01-006

1500266

$24.27

4

Screw

1500070

$6.39

4

BALL, (FOX)

1500071

$6.76

5

BUMPER,JOUNCE

5410855

$39.19

6

SLEEVE,STEEL

1500138

Unavailable

7

Spacer

5431355

$16.79

8

PLATE,TOP OUT

1500017

$20.22

9

DAMPER,PISTONRING,FOX

1500002

$31.99

10

BUSHING,BACKUP

1500015

$6.76

11

NUT,LOCK

1500016

$12.79

12

O-RING,.103W-1.549ID

1500108

$10.99

13

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

13

VALVE ASM,AIR

1500014

$69.99

13

Screw

1500019

$6.39

13

O-RING,OUTER

1500023

$2.84

14

CAP,ASM,BODY

1500316

Unavailable

15

Screw

1500018

$5.56

15

O-RING,DRUM OUTER

1500022

Unavailable

16

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

17

RING,PISTON,FLOATING,FOX

1500006

$19.99

18

PISTON-FLOATING

1500187

$26.98

19

BODY,1.46X8.18 TLG 204-04-004

1500289

$62.39

20

SHAFT-0.498 ODX8.000 TLG

1500205

Unavailable

21

EYELET,1.5 BASE,2.01

1500317

$47.29
