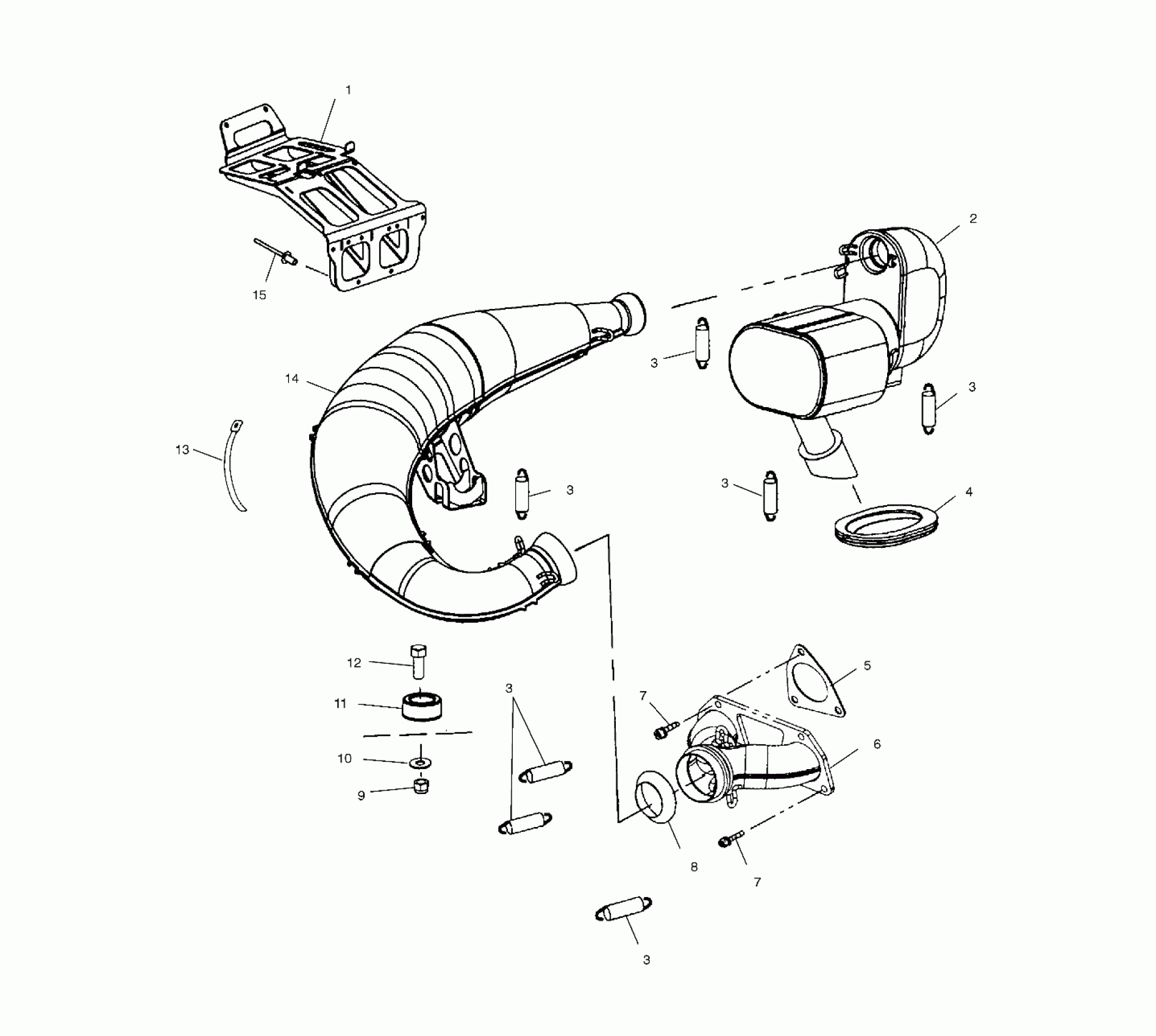

Polaris 600 XC SP EDGE - S00NP6ES EXHAUST - S00NP6ES (4958115811C006) Diagram

#

Description
Price

1

BRKT,CHASSIS/RESNTR,BLK Substituted by 1261157-029

1261008-029

Unavailable

2

RESONATOR,BLK

1261009-029

$649.99

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

4

BOOT,EXHAUST,OUTLET

5411684

Unavailable

5

GASKET-EXHST 440 BASE 500/600

5811838

$8.89

6

MANIFOLD,BLK

1261046-029

Unavailable

7

SCREW(10)

7517322

$2.39

7

SCREW(10)

7517322

$2.39

8

SEAL,EXH.SOCKET

3610046

$36.41

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

WASHER,3/8 FW(10)

7556153

$1.99

11

DAMPENER-VIBRATIONS

5433576

$11.99

12

BOLT(10)

7515440

$3.99

13

CLAMP-WORM DRIVE,.44WX3.75 DIA(10)

7080812

$19.99

13

CLAMP-WORM DRIVE,.44WX4.25 DIA(10)

7080813

$3.99

13

CLAMP-WORM DRIVE,.44WX6.50 DIA(10)

7080811

$11.99

14

TUNED PIPE,ASM

1261007

Unavailable

14

COVER,TUNED PIPE,TOP

5244398

Unavailable

14

COVER,TUNED PIPE,BOTTOM

5244399

Unavailable

14

MATTE,SOUND

5830198

Unavailable

14

MATTE,SOUND TOP

5830207

$12.39

15

RIVET-3/16-.090-.290

7661637

$1.49
