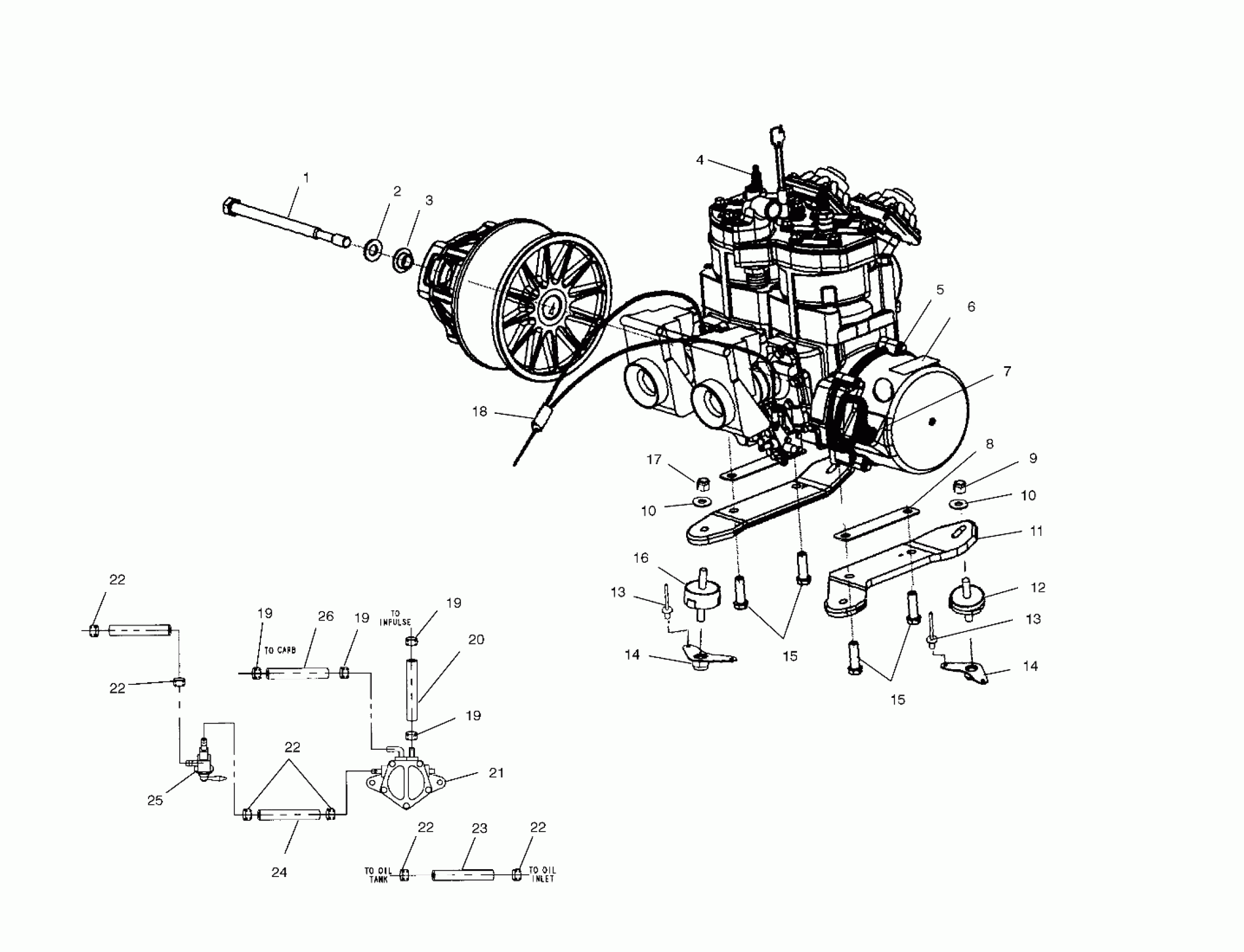

Polaris 600 XC SP EDGE - S00NP6ES ENGINE MOUNTING - S00NP6ES (4958115811C007) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

SP.PLUG,CHAMPION RN57Y CC (8)

3070190

$3.99

5

KIT,SHT BLK S60-44-PO [Cannot Purchase as Assembly] (S60-44-P0) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly.

2201662

Unavailable

6

DECAL-FUEL SHUT OFF

7078317

Unavailable

7

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

8

PLATE,440BASE ENGINE SHIM

5244498

$8.17

9

NUT FLEX LOC,(10)

7542402

$6.39

10

WASHER(10)

7555893

$1.49

10

WASHER(10)

7555893

$1.49

11

STRAP-ENGINE MOUNT 440 BASE,LH

5243414

Unavailable

11

STRAP-ENGINE MOUNT 440 BASE,RH

5243415

Unavailable

12

MOUNT-ENGINE,3/8-16,3-TAB

3021101

Unavailable

13

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

13

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

14

NUT,PLATE,SUPPORT

1012680

Unavailable

14

NUT,PLATE,SUPPORT

1012680

Unavailable

15

Screw

7517399

$8.99

15

Screw

7517399

$8.99

16

MOUNT-ENGINE,3/8-16,3-TAB

3021097

Unavailable

17

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

18

CABLE,THROTTLE,TWIN

7080867

$36.79

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

PUMP,FUEL,1 OUTLET

2520135

Unavailable

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

25

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

26

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable
