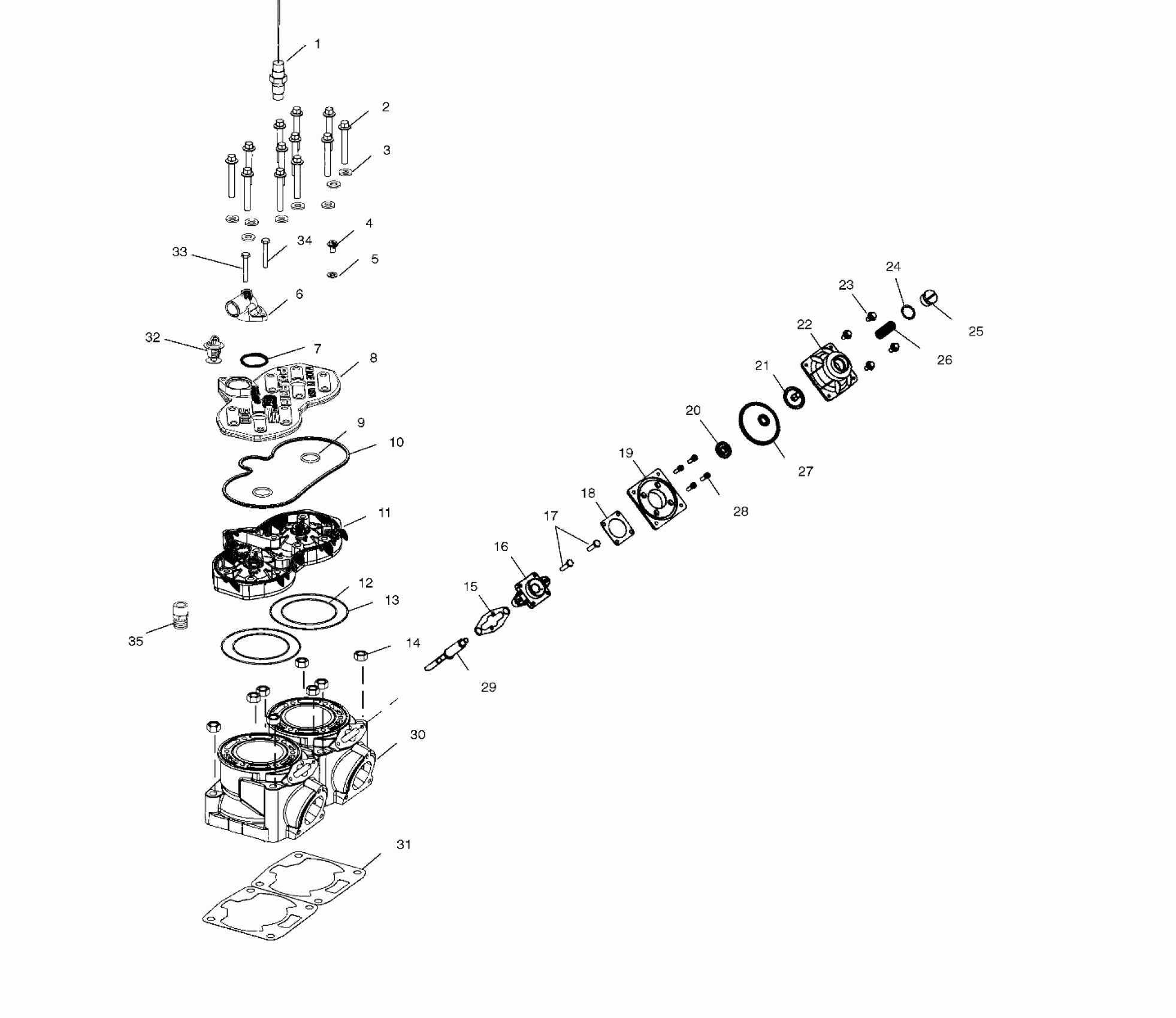

Polaris 600 XC SP EDGE - S00NP6ES CYLINDER - S00NP6ES (4958115811C009) Diagram

#

Description
Price

1

SENSOR-THERMISTOR TEMP VARRES Substituted by 4010614

4010251

$36.41

2

SCREW(10)

7517281

$8.99

3

WASHER(10)

7556082

$7.19

4

SCREW,M6X1.0 X 13,SL/HX/FL-Z

7517679

$13.59

5

WASHER,FLAT,(10)

7555998

$1.49

6

COVER-THERMOSTAT,M6 BLEED LG

5630992

Unavailable

7

O-RING,LIPSEAL

5411521

$24.19

8

HEAD COVER,FIRE RED,77.25

5631038-093

Unavailable

9

O-RING

5411411

$1.49

10

SEAL,MLDD.HEAD,TWIN

5411465

$32.37

11

HEAD,CYL.77.25MM,TWN,SNO

3022057

Unavailable

12

O-RING

5410932

$20.22

13

O-RING

5411359

$15.99

14

NUT(10)

7547013

$1.99

15

GASKET-GEN 3.5 EV BASE Substituted by 5812087

5811807

$9.99

16

ASM-EV 3.5 HSNG W/BUSH H.DOWEL

1201919

Unavailable

17

SCREW(10)

7516823

$3.19

18

GASKET,HOUSING EV

5433375

Unavailable

19

BELLOW ADP GEN 3.5 EV

5132187

Unavailable

20

Washer

3086124

$22.79

21

CAP,VALVE EXHAUST

3086118

Unavailable

22

COVER,VALVE EXHAUST

3086120

Unavailable

23

BOLT,FLANGE(10)

3086125

$2.39

24

O-Ring

3086126

$3.99

25

ADJUSTER,SPRING

3085744

Unavailable

26

SPRING,PINK,EV

7041704-03

$28.32

27

BELLOWS,VALVE,EXHAUST

3086119

Unavailable

28

SCREW(10)

7517314

Unavailable

29

VALVE GUILLOTINE 3.5,600EV,ASM.

1201958

Unavailable

30

CYLINDER,77MM,W/LEV

3021087

$629.99

31

GASKET-CYLINDER BASE

5811916

$24.99

32

THERMOSTAT-50C TBYS SS STEM

7052267

$40.46

33

SCREW

7516818

$5.59

34

SCREW(10)

7516822

$2.39

35

FITTING-3/4NPT-1"HOSE BRASS Substituted by 7052313

7052234

$39.99
