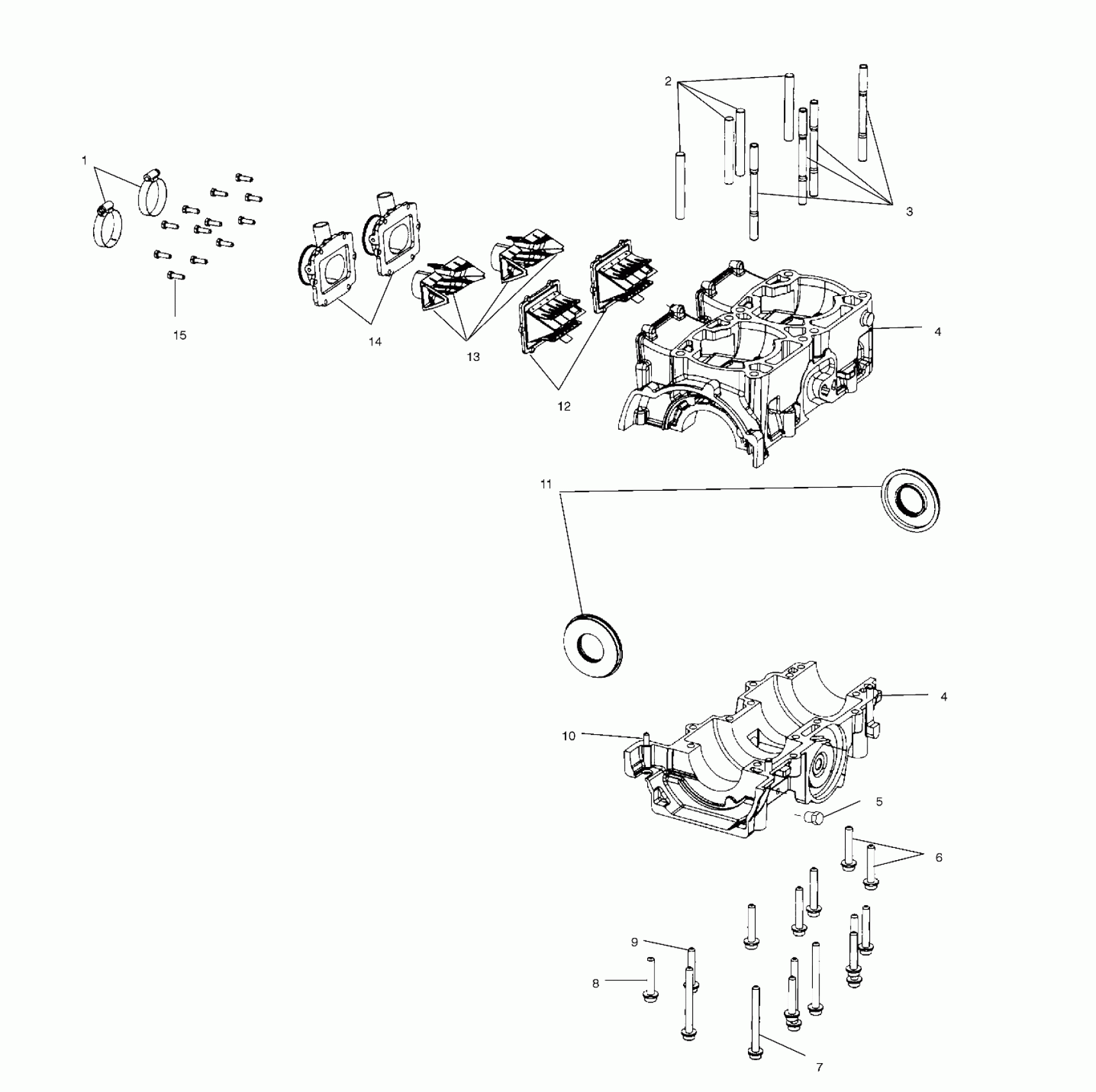

Polaris 600 XC SP EDGE - S00NP6ES CRANKCASE - S00NP6ES (4958115811C008) Diagram

#

Description
Price

1

CLAMP,HOSE,SS,(10)

7080681

$9.59

2

STUD,CYL 81MM

5132196

$20.63

3

STUD,CYL 118MM

5132197

$21.27

4

CRANKCASE,KIT,SNO 1202021 (Incl. 2,3,5-10)

2201697

$591.27

4

CRANKCASE,KIT,SNO 1202021 (Incl. 2,3,5-10)

2201697

$591.27

5

PLUG Substituted by 7052311

7051529

$15.99

6

BOLT,M8X1.25X55

7517785

$9.59

7

BOLT,M8X1.25X80

7517784

$8.79

8

SCREW

7516825

$5.59

9

BOLT,M8X1.25X45

7517786

$6.39

10

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

11

SEAL,FLANGED

5411394

$29.99

12

VALVE,REED

1201825

$134.99

13

STUFFER,REED,75.5MM(38MM.CARB)

5432852

Unavailable

14

ADAPTER,CARB,TM/RACK,440 BASE

1253217

Unavailable

15

SCREW(10)

7516822

$2.39
