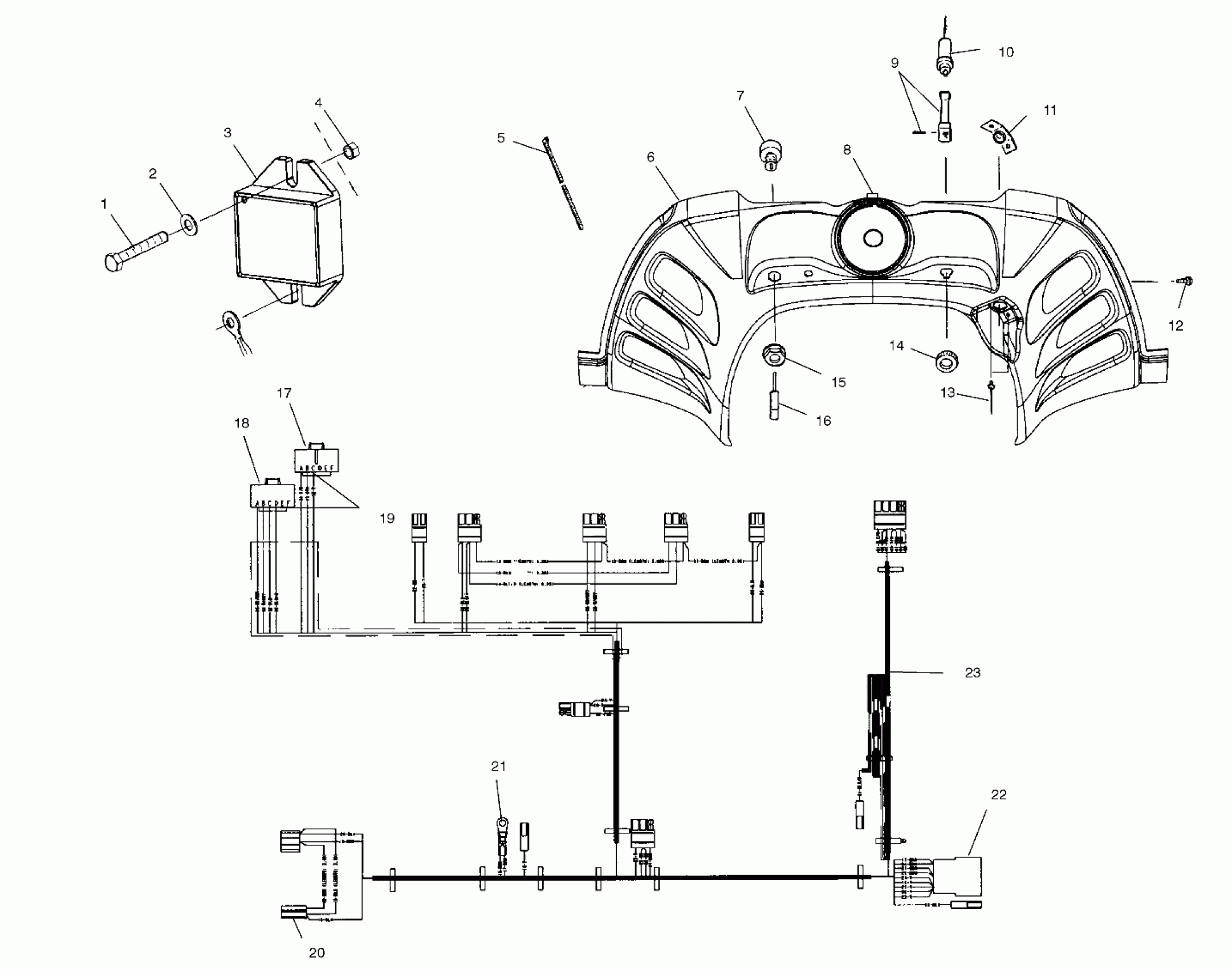

Polaris 600 XC SP EDGE - S00NP6ES CONSOLE - S00NP6ES (4958115811A013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

REGULATOR,AC,14.3 V

4010301

Unavailable

4

NUT(10)

7541925

$1.49

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CONSOLE,EDGE,BASIC

5433724

Unavailable

7

KIT-IGNITION SWITCH,ES,FUEL

2201614

$89.03

8

SPEEDCLIP,'U'TYPE(10)

7670082

Unavailable

9

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

10

CABLE,CHOKE,SINGLE-PULL (Incl. 9,14)

7080734

Unavailable

11

GUIDE-RECOIL

5243049

$9.70

12

SCREW(10)

7515199

$1.49

13

RIVET, POP(50)

7621330

$1.49

14

NUT,CHOKE

5432944

$8.79

15

NUT,IGNITION

7547035

$8.79

16

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

17

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

18

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

19

SOCKET-PACKARD#12047767

4010192

Unavailable

20

HOUSING

4020063

$3.19

21

Terminal, Ring

4020092

Unavailable

22

Housing w/Receptacle

4020057

$3.51

23

HARNESS-MAIN WIRE,TPS,COMMON

2460792

Unavailable
