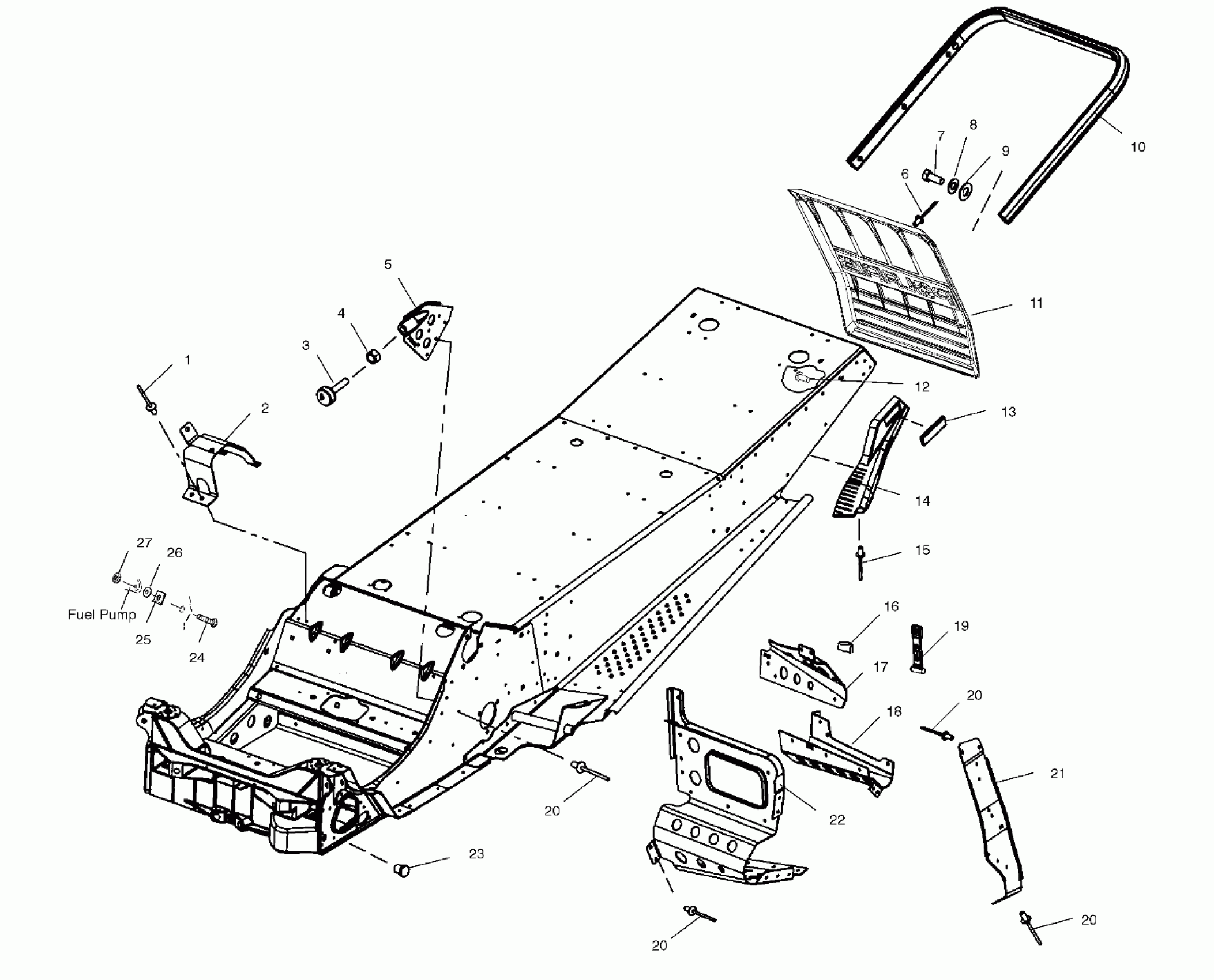

Polaris 600 XC SP EDGE - S00NP6ES CHASSIS - S00NP6ES (4958115811A005) Diagram

#

Description
Price

-

CHASSIS,ASM,SVC,EDGE,BLK Substituted by 1013063-309

1013063

Unavailable

1

RIVET(50)

7621453

$3.19

2

BRKT,JACKSHAFT SHIELD Substituted by 5245003

5243061

$13.10

3

STOP,TORQUE COURSE 3/8-16

3021104

$20.22

4

NUT(10)

7542404

$1.59

5

WELD-TORQUE STOP

1013067

Unavailable

6

POP RIVET(50)

7621418

$1.49

7

BOLT(10)

7512240

$3.99

8

LOCK WASHER(10)

7552801

$1.59

9

WASHER(10)

7558301

$1.49

10

BUMPER,REAR,BLK

2632165-067

Unavailable

11

FLAP,SNOW,EDGE,BLK W/CHROME

5433521-1106

Unavailable

12

SCREW(10)

7512068

$2.39

13

REFLECTOR ASM,RED

2670133

$5.75

14

SKIRT,SNOW,EDGE,LH Substituted by 5433519-070

5433519

$36.83

14

SKIRT,SNOW,EDGE,RH Substituted by 5433520-070

5433520

$55.56

15

RIVET(50)

7621472

$1.49

16

EXTRUSION,CLUTCHGUARD

5521238

$6.46

17

MOUNT-CONSOLE,LH

5243939

$20.48

17

MOUNT-CONSOLE,RH

5243940

$21.43

18

FOOTREST UPPER-TOE CLIP,LH

5243153

$33.91

18

FOOTREST UPPER-TOE CLIP,RH

5243154

$38.71

19

STRAP-AIRBOX TOP

5433150

$24.27

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

SUPPORT-FOOTREST,LH

5242741

$19.68

21

SUPPORT-FOOTREST,RH

5242742

$32.37

22

Footrest, RH

5242740

Unavailable

22

FOOTREST, LH Substituted by 5245288

5242739

Unavailable

23

PLUG, HOLE(10)

7080416

$5.65

24

BOLT-CARRIAGE(10)

7512275

$3.99

25

SPEED NUT(10)

7670021

$6.99

26

WASHER,NYLON

7555932

$2.39

27

NUT-LOCK(10)

7542122

$1.49
