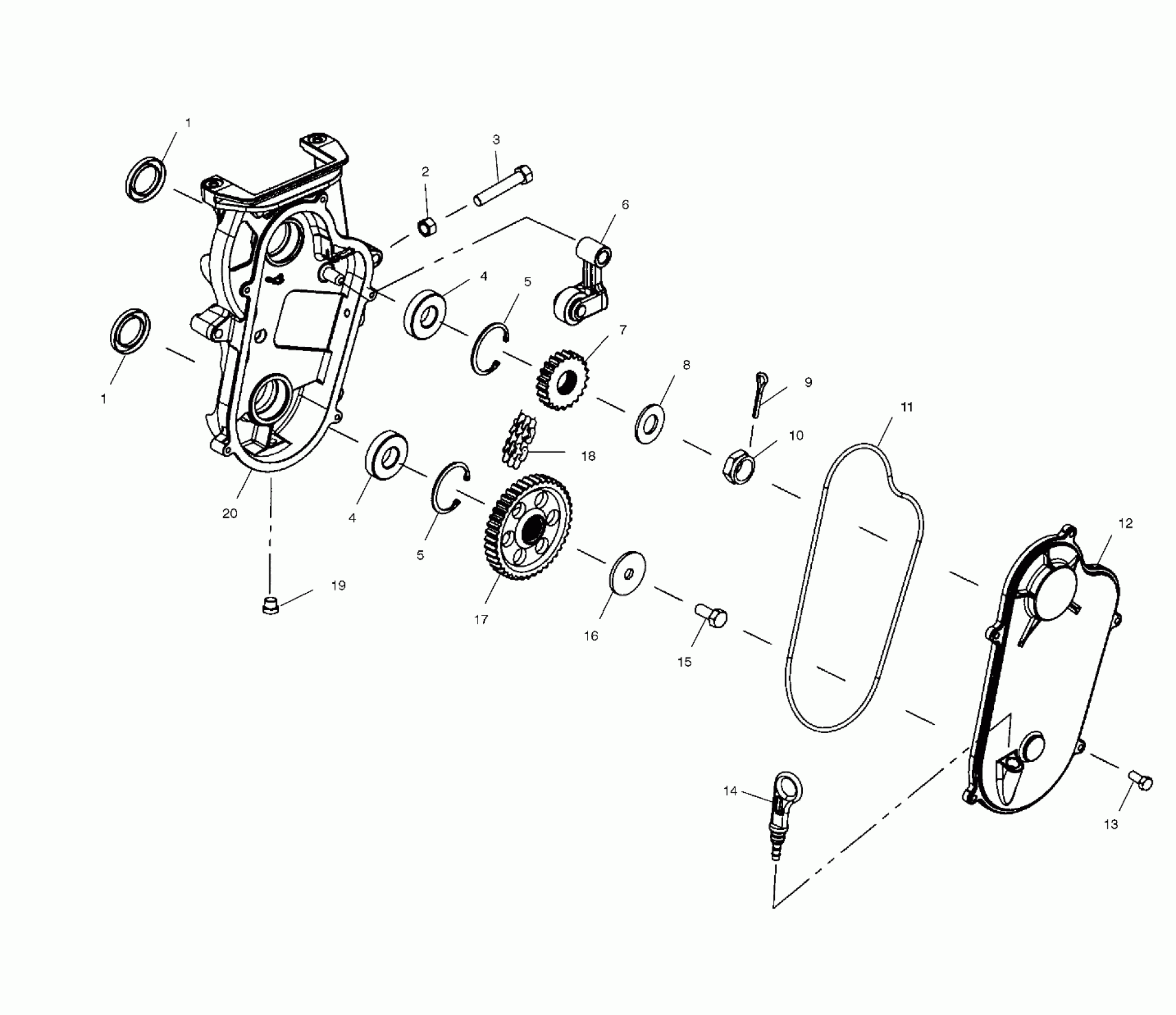

Polaris 600 XC SP EDGE - S00NP6ES CHAINCASE - S00NP6ES (4958115811B008) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT-CHAIN ADJUSTER,3/8-16

5132237

$9.59

3

SCREW(10)

7512470

Unavailable

4

BEARING,BALL

3514309

$15.87

4

BEARING,BALL

3514309

$15.87

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

PIN,CHAIN TIGHTENER

7662210

Unavailable

6

BEARING

3553002

$11.99

6

WHEEL,C/C IDLER

5630123

Unavailable

6

WASHER THRUST(10)

7558702

$1.59

6

TIGHTENER,CHAINCASE

1332213

$159.99

7

SPROCKET-23T,3/4W,15 SPL,HV,PM

3221099

$54.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

COTTER PIN(10)

7661401

$1.49

10

NUT

7542811

Unavailable

11

GASKET,O-RING,CHAINCASE

5411497

$20.22

12

CVR,CHNCASE,7.92 CD,ALUM

5132368

$148.79

13

SCREW

7517675

$3.83

14

DIPSTICK ASM.

1332223

Unavailable

15

SCREW(10)

7515350

$3.97

16

WASHER(10)

7571618

$6.39

17

SPKT,39T,3/4W,15T,HYVO,PM

3222108

$59.99

18

CHAIN,HYVO.74P,3/4W Substituted by 3221133

3221109

$164.99

19

PLUG(10)

7052115

$5.65

20

CHAINCASE,7.92 CD,ALUM Substituted by 5132773

5132369

Unavailable
