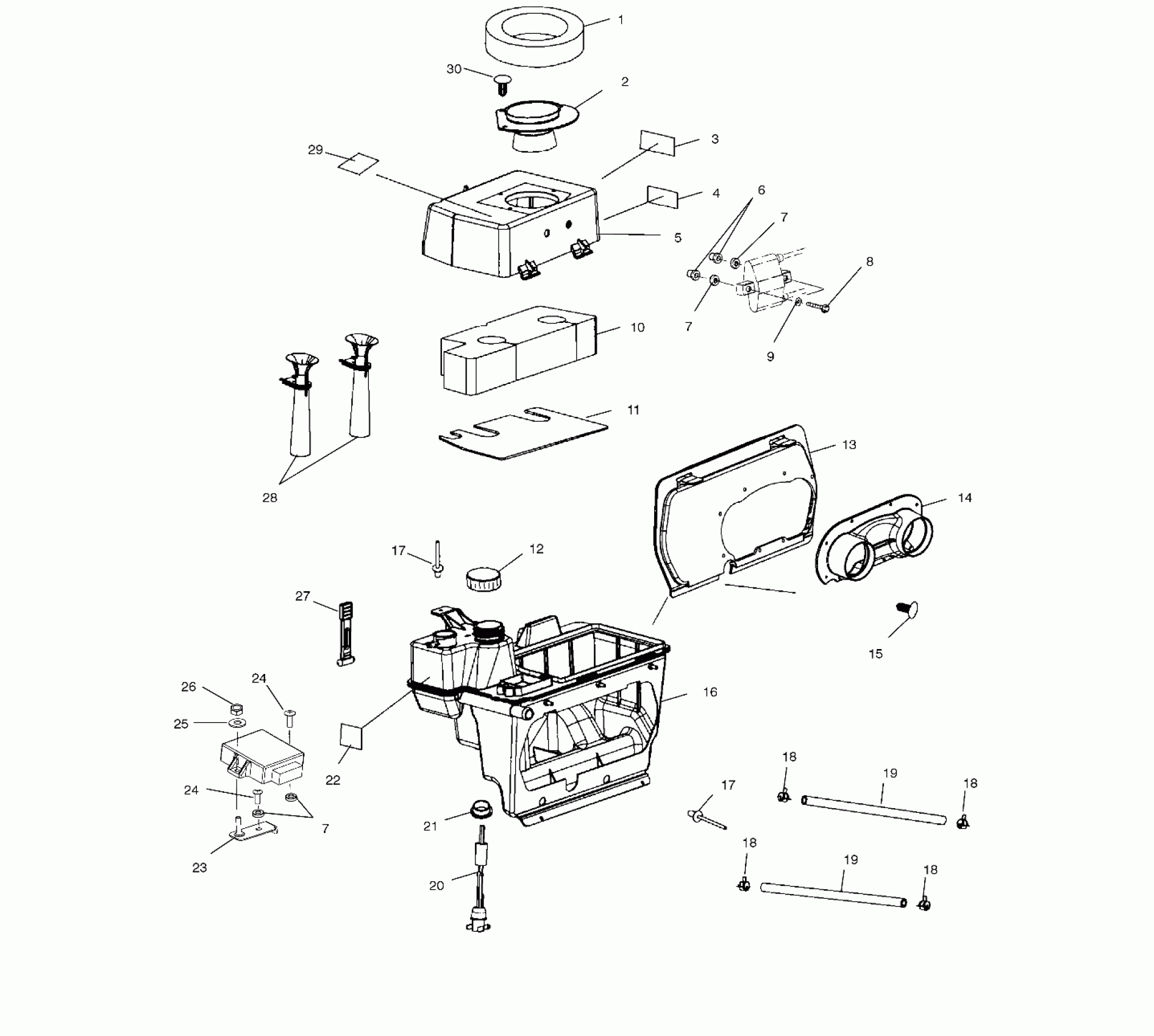

Polaris 600 XC SP EDGE - S00NP6ES AIR BOX - S00NP6ES (4958115811C005) Diagram

#

Description
Price

1

FOAM,AIRBOX,CHIMNEY,EDGE

5811882

$20.22

2

DUCT,AIR,INLET

5433664

$12.39

3

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

4

DECAL, GREASING [No Longer Available]

7073426

$7.27

5

COVER,AIRBOX [No Longer Available]

5433512

$21.43

6

NUT

7547103

$8.79

7

WASHER,NYLON

7555932

$2.39

7

WASHER,NYLON

7555932

$2.39

7

WASHER,NYLON

7555932

$2.39

8

Screw

7517610

$1.59

9

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

10

FOAM,AIRBOX,PLATE

5811979

Unavailable

11

PLATE,INTAKE,EDGE

5433665

Unavailable

12

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

13

PLATE,CARB ADAPTER

5433514

$164.99

14

BOOT,CARB,63MM,MIKTM EDGE

5411770

Unavailable

15

FASTENER, DART(10)

7080431

Unavailable

16

OIL/COOLANT/AIRBOX,WELD Substituted by 1253301

1261010

Unavailable

17

RIVET(50)

7621472

$1.49

17

RIVET(50)

7621472

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

19

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

20

FITTING-OIL SENDER

4010224

Unavailable

21

GROMMET-OIL SENDER Substituted by 7052305

7052247

$4.84

22

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

23

WELD-BRKT,KOKUSAN,CDI,TPS

1013201

$30.32

24

Screw

7512098

$1.59

24

Screw

7512098

$1.59

25

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

26

NUT(10)

7541925

$1.49

27

STRAP-AIRBOX TOP

5433150

$24.27

28

TUBE,INTAKE,OUTER

5433662

Unavailable

29

DECAL,CAUTION,AIRBOX

7075351

Unavailable

30

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
