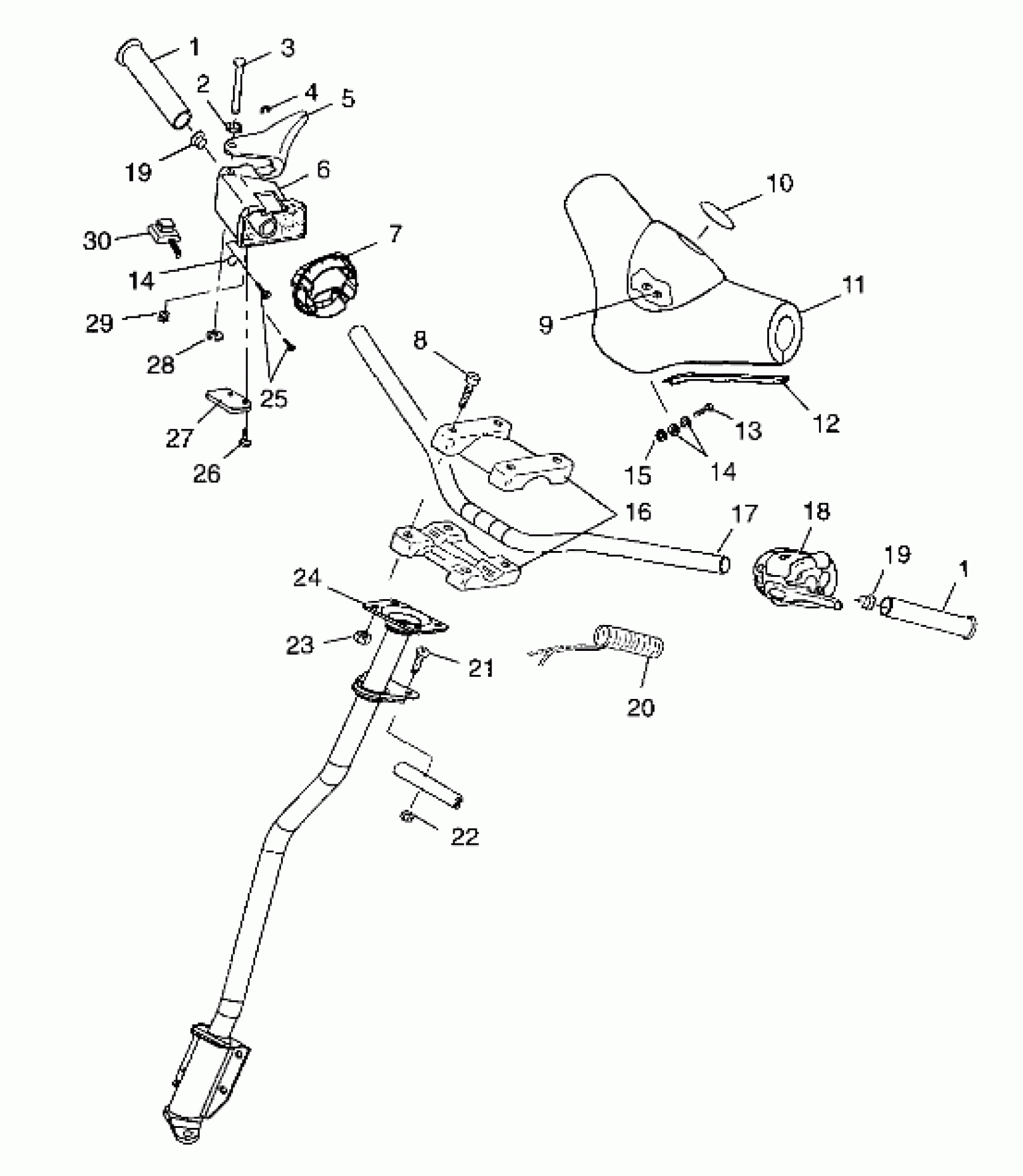

Polaris 600 XC SP - 099SP6DS STEERING - HANDLEBAR - 099SP6DS (4948474847b007) Diagram

#

Description
Price

1

GRIP,H'BAR,SNOW

5432634

$24.27

1

GRIP,H'BAR,SNOW

5432634

$24.27

2

WASHER(10)

7555730

$3.99

3

PIN-RETAINING .186X1.780-AL

7661624

$12.79

4

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

5

LEVER ASM,HTR,HI/LO,38MM

2010176

Unavailable

5

LEVER-THROTTLE

5430638

Unavailable

6

BLOCK,THROTTLE/BRAKE

5431592

$49.99

7

ADAPTOR,BLOCK,THROTTLE Substituted by 5433345

5432971

Unavailable

8

SCREW,(10)

7517238

$4.79

9

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

10

EMBLEM"POLARIS",BEZEL,H'BAR

5433032

Unavailable

11

COVER-HANDLEBAR Substituted by 5433159-070

5433159

$77.99

12

SLIDE-HANDLEBAR COVER,RH Substituted by 5433160

5433161

$28.32

12

SLIDE-HANDLEBAR COVER,LH Substituted by 5433160-070

5433160

$28.32

13

SCREW,PN.HD.(10)

7517547

$1.43

14

RIVET BURR(50)

7555727

$1.49

14

RIVET BURR(50)

7555727

$1.49

15

NUT, NYLOCK(10)

7541602

$1.49

16

BLOCK,HANDLEBAR

5630187-067

$44.99

17

HANDLEBAR,BLK

5224861-067

Unavailable

18

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

19

CAPLUG(10)

7080467

Unavailable

19

CAPLUG(10)

7080467

Unavailable

20

HEATER,GRIP,LO/MED/HI

2460677

$60.70

21

SCREW

7517377

$4.79

22

NUT, LOCK(10)

7542103

$5.59

23

NUT-LOCK(10)

7542122

$1.49

24

POST,STEERING,FORMED,BLK

1820552-067

Unavailable

25

SCREW-SEMS(10)

7511848

$3.99

26

SCREW(10)

7511858

$3.99

27

HOLDER-WIRE

5432261

$24.27

28

RING-RETAINING EXTERNAL

7710401

$3.99

29

SCREW(10)

7512465

$3.99

30

SWITCH,AUX.SHUT-OFF

4110106

$94.99
