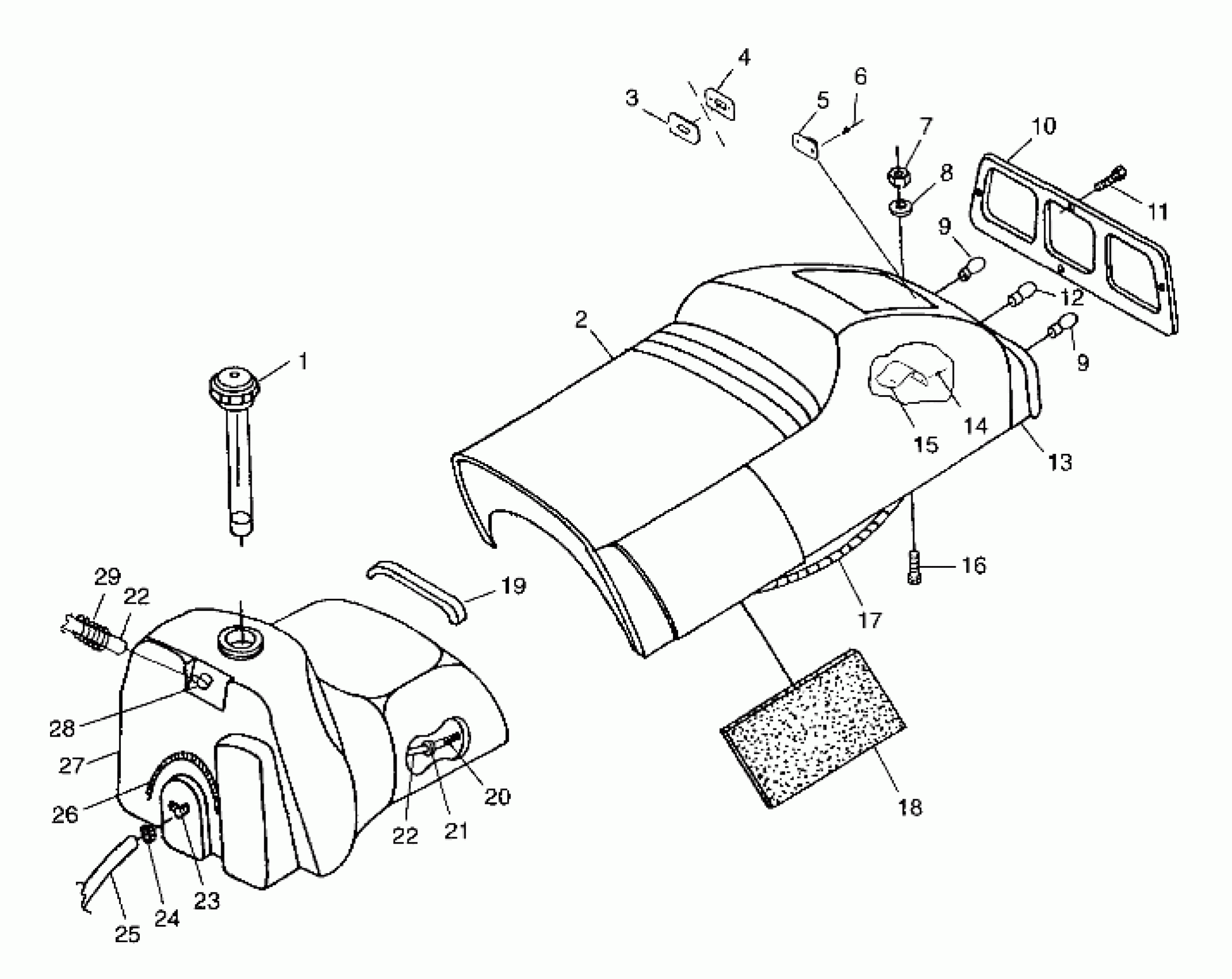

Polaris 600 XC SP - 099SP6DS SEAT and GAS TANK - 099SP6DS (4948474847a006) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

SEAT ASM. (Incl. 2-5,8-12,16)

2682394

Unavailable

2

COVER ASM,SEAT,1 PC

2682395

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

9

BULB,TAILLIGHT(10)

4030024

$4.84

9

BULB,TAILLIGHT(10)

4030024

$4.84

10

LENS,TAILLIGHT

5430423

Unavailable

11

SCREW(10)

7511840

Unavailable

12

Bulb, Brakelight

4030045

Unavailable

13

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

14

RIVET(50)

7621460

$1.49

15

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

16

BOLT-CARRIAGE(10)

7512263

$3.99

17

Harness, Taillight

2460399

Unavailable

18

FOAM,SEAT PAD

5431981

Unavailable

19

CUSHION,TANK H.D.

5420126

Unavailable

20

FUELPICKUP,W/STRAINER

7052037

$12.94

21

RING, COMPRESSION(10)

7080402

$1.60

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

24

HOSE CLAMP, RED

7080003

$1.49

25

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

26

SPRING,TANK,(10)

7042020

$13.75

27

TANK ASM,FUEL,RACER,HYB. Substituted by 2520151 (Incl.20-23)

2520141

Unavailable

28

FITTING,90 DEGREE

7052065

$7.19

29

SPRING,PROTECT VENTHOSE

7041643

$3.51
