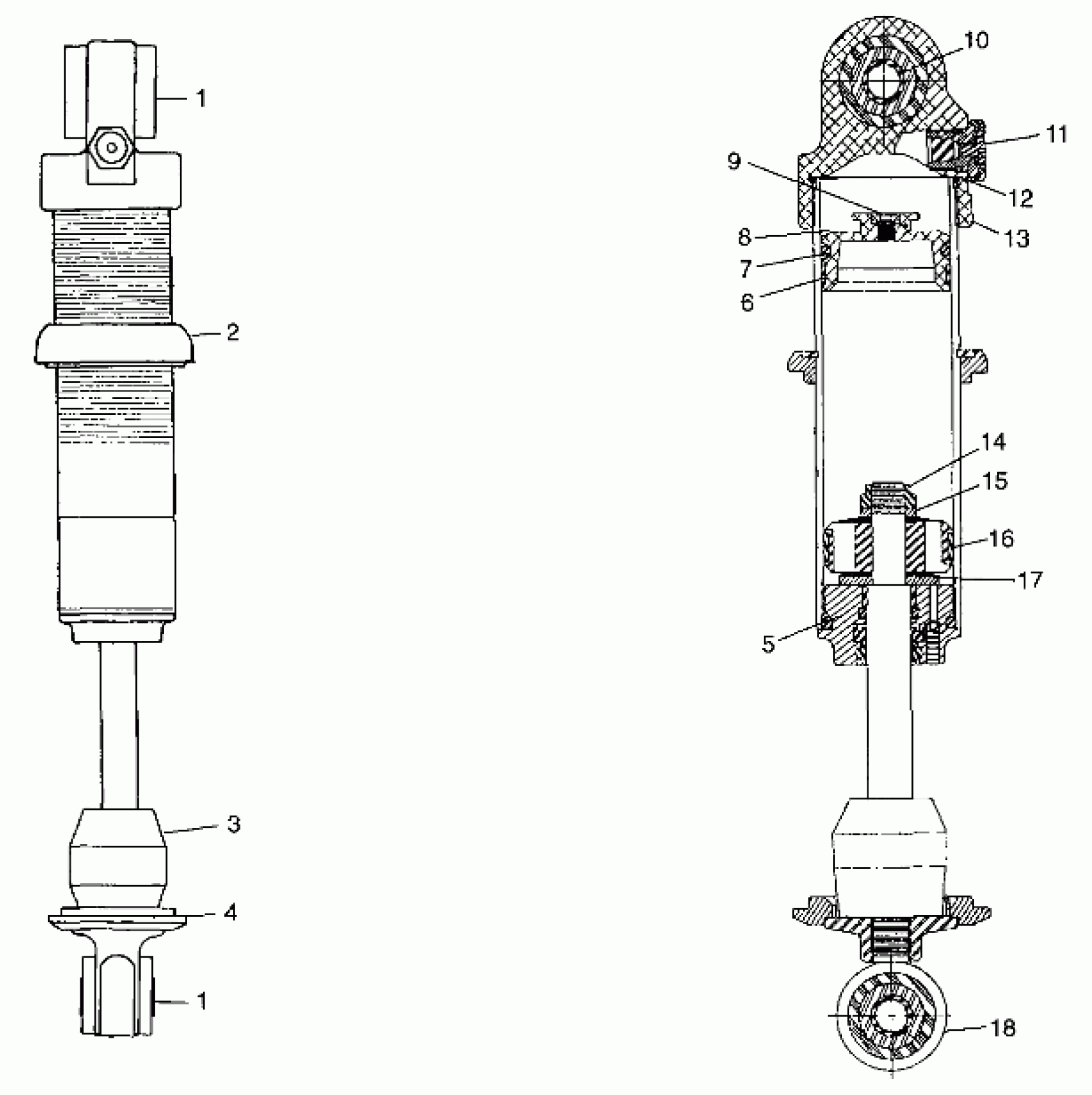

Polaris 600 XC SP - 099SP6DS FOX SHOCK - IFS - 099SP6DS (4948474847b014) Diagram

#

Description
Price

-

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

-

SHOCK,IFS,IFP,XC-10

7041697

Unavailable

1

BUSHING,EYELET

1500137

$24.99

1

BUSHING,EYELET

1500137

$24.99

2

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

3

BUMPER,JOUNCE

5410855

$39.19

4

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

5

O-RING,(10).103W-1.299ID

1500020

$10.63

5

O-RING INNER (10)

1500021

$10.99

5

Screw

1500070

$6.39

5

BALL, (FOX)

1500071

$6.76

5

WIPER INNER Substituted by 1500266

1500025

$24.27

5

WIPER,CLR,OUTER

1500024

Unavailable

5

BEARING ASM,(.900 W/BLEED)

1500090

Unavailable

6

RING,PISTON,FLOATING,FOX

1500006

$19.99

7

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

8

PISTON

1500011

$59.99

9

Screw

1500018

$5.56

9

O-RING,DRUM OUTER

1500022

Unavailable

10

BUSHING, (1.16 IN.)

5020613

Unavailable

11

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

11

VALVE ASM,AIR

1500014

$69.99

11

Screw

1500019

$6.39

11

O-RING,OUTER

1500023

$2.84

12

O-RING,.103W-1.549ID

1500108

$10.99

13

CAP, BODY

1500073

Unavailable

14

NUT,LOCK

1500016

$12.79

15

BUSHING,BACKUP

1500015

$6.76

16

DAMPER,PISTONRING,FOX

1500002

$31.99

17

PLATE,TOP OUT

1500017

$20.22

18

EYELET, BILLET (1.137")

1500129

Unavailable
