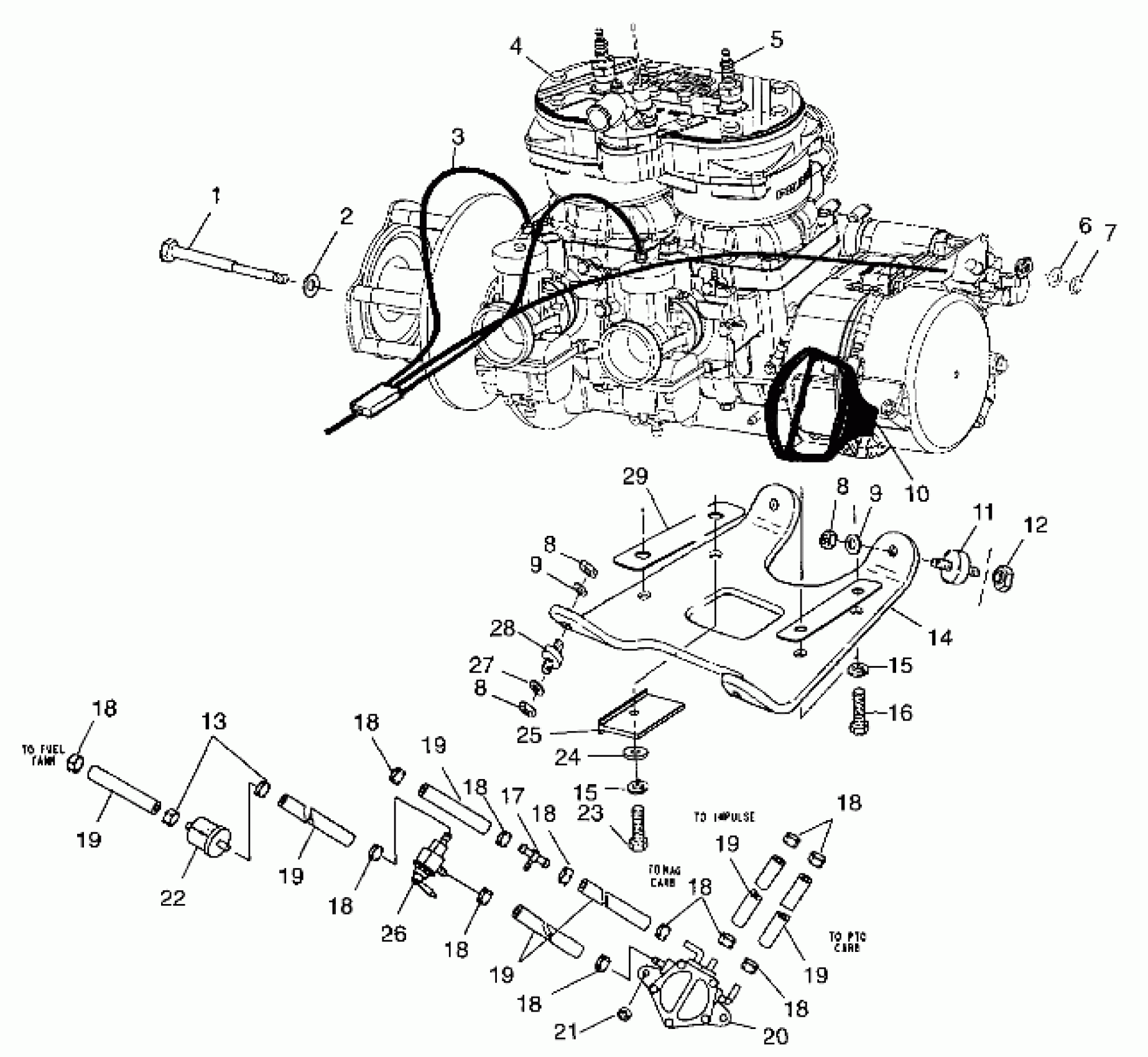

Polaris 600 XC SP - 099SP6DS ENGINE MOUNTING - 099SP6DS (4948474847c008) Diagram

#

Description
Price

1

SCREW,SPEC.CLUTCH

7517347

Unavailable

2

WASHER(10)

7556003

$6.39

3

CABLE,THROTTLE,TWIN

7080721

Unavailable

4

DESC NOT_AVAILABLE (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization is requir

2201202

Unavailable

5

SPARKPLUG(8)

3070165

$3.99

6

WASHER(10)

7555944

$3.99

7

RING-E,RET.(10)

7710427

Unavailable

8

NUT,FLEXLOCK,(10)

7547008

$6.39

8

NUT,FLEXLOCK,(10)

7547008

$6.39

8

NUT,FLEXLOCK,(10)

7547008

$6.39

9

WASHER(10)

7555893

$1.49

9

WASHER(10)

7555893

$1.49

10

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

11

MOUNT,ENGINE Substituted by 3021099

3110072

$28.32

12

NUT,(10)

7547022

Unavailable

13

CLAMP,SPRING,(10)

7080534

$1.59

14

PLATE,ENG.MOUNT

5241588

Unavailable

15

WASHER LOCK(10)

7553101

$3.99

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT(10)

7512539

$3.99

17

TEE-FUEL

7052035

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

PUMP,FUEL,2 OUTLET

2520134

Unavailable

21

NUT-LOCK(10)

7542122

$1.49

22

FILTER-FUEL,WHITE

2520156

Unavailable

23

BOLT,(10)

7517442

$6.39

24

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

25

BRACE,ENGINE MT.

5211881

$12.30

26

VALVE,FUEL SHUTOFF

7052211

Unavailable

27

WASHER,FLAT(10)

7555915

$3.19

28

MOUNT,ENGINE

3110062

Unavailable

29

PLATE,SHIM,SN70,ENGINE

5211894

Unavailable
