Description

Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH,DARK BLUE/WHT

7041781

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

WT/BUSH.ASM,10-58(3)

1321588

$40.46

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

SLEEVE, BEARING

3576502

$23.99

12

INSERT-MOVEABLE

5010188

$7.99

13

NUT FLEX LOC(10)

7541906

$3.19

14

SPACER(10) (.050mm)

5210754

Unavailable

14

SPACER(10) (.025 mm)

5242981

Unavailable

14

SPACER(10) (.020mm)

5210752

Unavailable

14

SPACER(10) (.032mm)

5210753

Unavailable

15

NUT-JAM

5020425

$23.99

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

CLUTCH,BASIC#67(DRIVE) Substituted by 2201887 (Incl. All Less 5,9)

1321694

Unavailable

18

KIT,REBUILD,WIDE ROLLER (Incl. 6-8,10,16)

2201169

$169.98

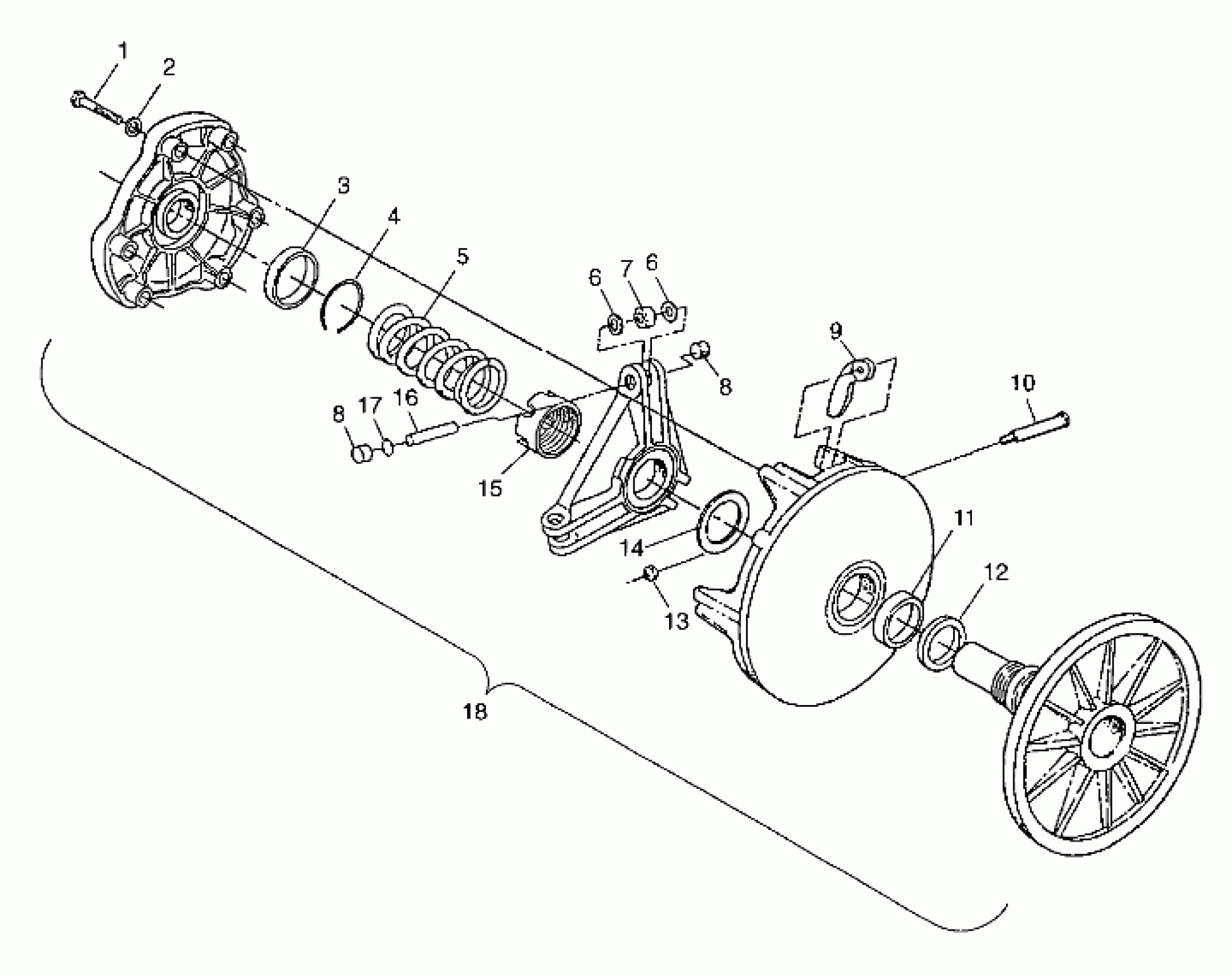

Polaris 600 XC SP - 099SP6DS DRIVE CLUTCH - 099SP6DS (4948474847c005) Diagram

BOLT,(10)

LOCK WASHER(10)

COVER,BEARING,GARMAX

RING-RETAINING,COVER

SPRING-CLUTCH,DARK BLUE/WHT

WASHER,MULTILUBE

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

WT/BUSH.ASM,10-58(3)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

NUT FLEX LOC(10)

SPACER(10) (.050mm)

SPACER(10) (.025 mm)

SPACER(10) (.020mm)

SPACER(10) (.032mm)

NUT-JAM

PIN-ROLLER

Kit - Shim, Drive Clutch

CLUTCH,BASIC#67(DRIVE) Substituted by 2201887 (Incl. All Less 5,9)

KIT,REBUILD,WIDE ROLLER (Incl. 6-8,10,16)
