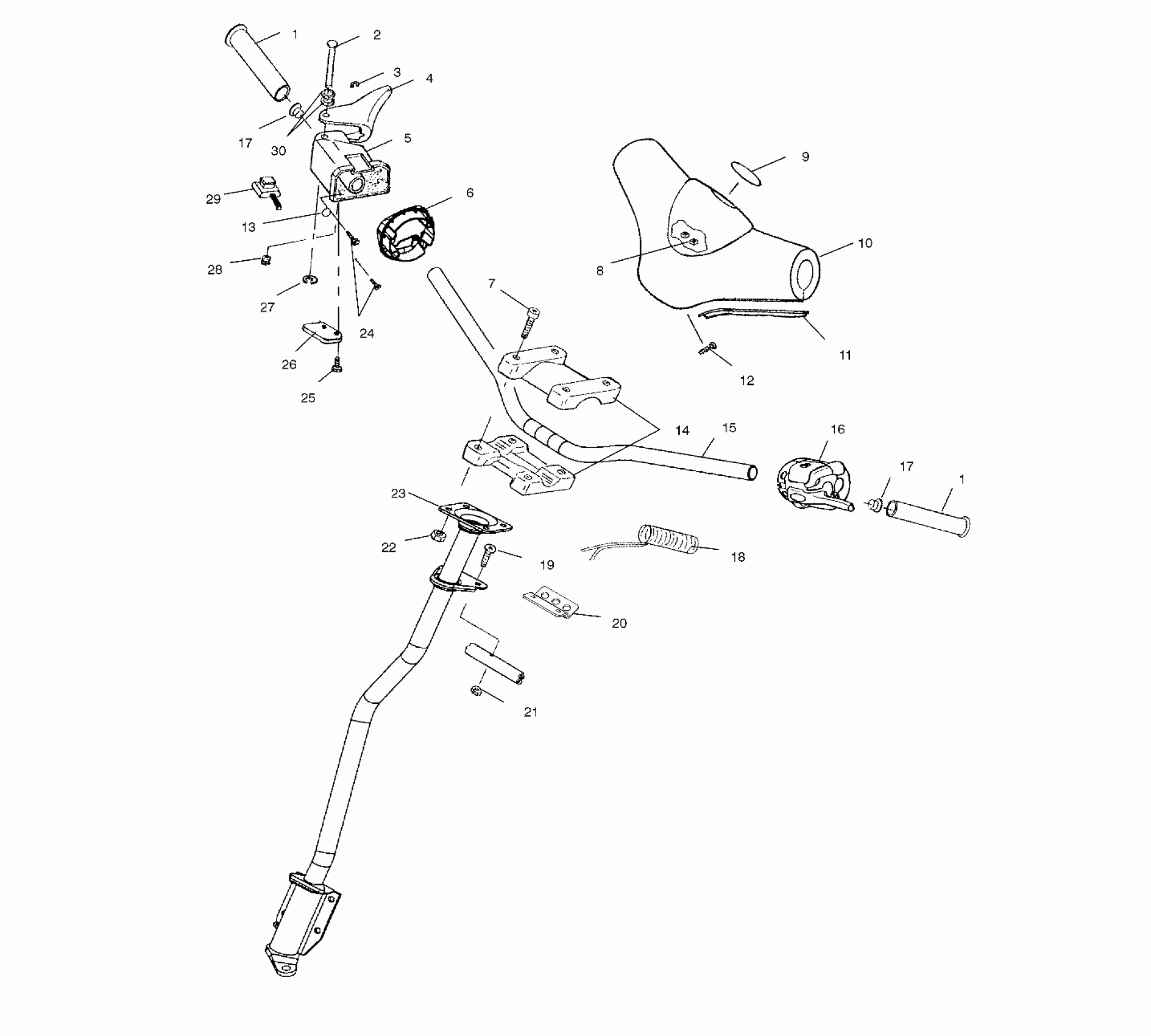

Polaris 600 XC DELUXE - S00SD6DS STEERING - HANDLEBAR - S00SD6DS (4954055405B007) Diagram

#

Description
Price

1

GRIP,H'BAR,SNOW

5432634

$24.27

1

GRIP,H'BAR,SNOW

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER ASM,HTR,HI/LO,38MM

2010176

Unavailable

4

LEVER-THROTTLE

5430638

Unavailable

5

BLOCK,THROTTLE/BRAKE

5431592

$49.99

6

ADAPTOR,BLOCK,THROTTLE Substituted by 5433345

5432971

Unavailable

7

SCREW,(10)

7517238

$4.79

8

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

9

EMBLEM-"STAR",BEZEL,HANDLE BAR

5433522

Unavailable

10

COVER-HANDLEBAR Substituted by 5433159-070

5433159

$77.99

11

SLIDE-HANDLEBAR COVER,RH Substituted by 5433160

5433161

$28.32

11

SLIDE-HANDLEBAR COVER,LH Substituted by 5433160-070

5433160

$28.32

12

DART-CLIP NYLON,BLK

4010287

$3.99

13

RIVET BURR(50)

7555727

$1.49

14

BLOCK,HANDLEBAR

5630187-067

$44.99

15

HANDLE BAR,BLK

5243355-067

$94.99

16

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

17

PLUG, OVERFLOW,(10)

5431096

$2.02

17

PLUG, OVERFLOW,(10)

5431096

$2.02

18

HEATER,GRIP,LO/MED/HI

2460677

$60.70

19

SCREW

7517377

$4.79

20

DESC NOT_AVAILABLE

5243625

Unavailable

21

NUT, LOCK(10)

7542103

$5.59

22

NUT-LOCK(10)

7542122

$1.49

23

POST,STEERING,FORMED,BLK

1820552-067

Unavailable

24

SCREW-SEMS(10)

7511848

$3.99

25

SCREW(10)

7511858

$3.99

26

HOLDER-WIRE

5432261

$24.27

27

RING-RETAINING EXTERNAL

7710401

$3.99

28

SCREW(10)

7512465

$3.99

29

SWITCH,AUX.SHUT-OFF

4110106

$94.99

30

WASHER(10)

7555730

$3.99
