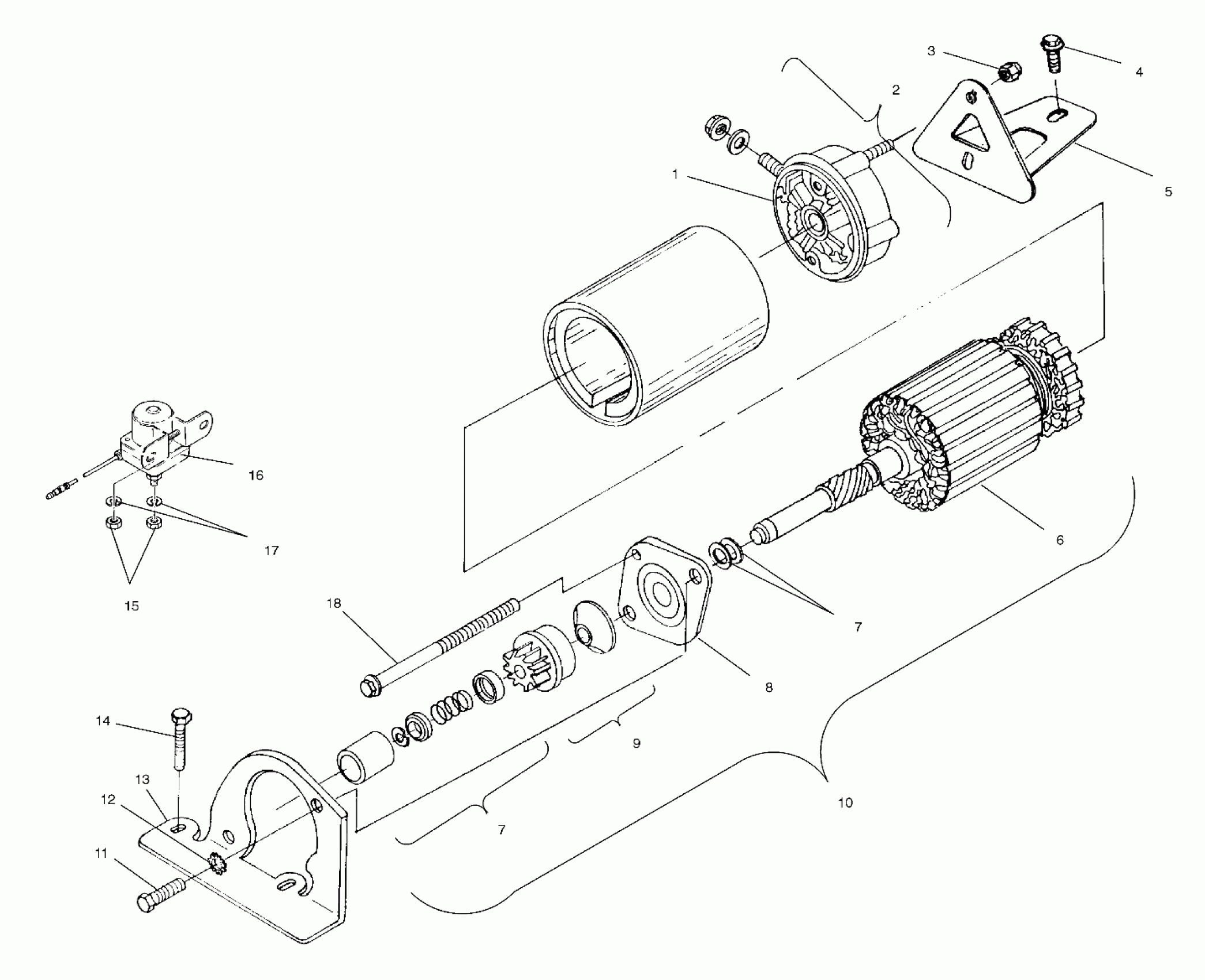

Polaris 600 XC DELUXE - S00SD6DS STARTING MOTOR - S00SD6DS (4954055405D001) Diagram

#

Description
Price

1

KIT,BRUSH&SPRING

2200759

$59.99

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

ASM., BRUSH & SCREW

-------

Unavailable

1

Nut

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

2

KIT,COMMUTATOR CAP ASM. (Incl.1)

2200758

$82.39

3

NUT(10)

7542153

$1.59

4

SCREW(10)

7516815

$6.39

5

BRKT,R.STARTER

5241726

Unavailable

6

KIT,ARMATURE ASM.

2200756

$169.99

7

Kit, Drive Hardware

2200755

Unavailable

7

COVER, DUST

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

Kit, Drive Hardware

2200755

Unavailable

7

COVER, DUST

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

PINION, STOP

-------

Unavailable

8

KIT,DRIVECAP ASM.

2200757

$59.99

9

KIT,DRIVE ASM.

2200754

Unavailable

9

PLATE, DRIVE

-------

Unavailable

9

PINION

-------

Unavailable

10

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable

11

BOLT(10) Substituted by 7512492

7515548

Unavailable

12

WASHER(10)

7552603

$1.49

13

BRKT,FR.STARTER

5241715

$74.27

14

SCREW & WASHER ASM.(10)

7516730

$6.39

15

NUT(10)

3082939

Unavailable

16

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 15,17)

3083211

Unavailable

17

WASHER SPRING(10)

3080077

$2.39

18

KIT,SCREW

2200753

$29.99

18

BOLT, THRU

-------

Unavailable
