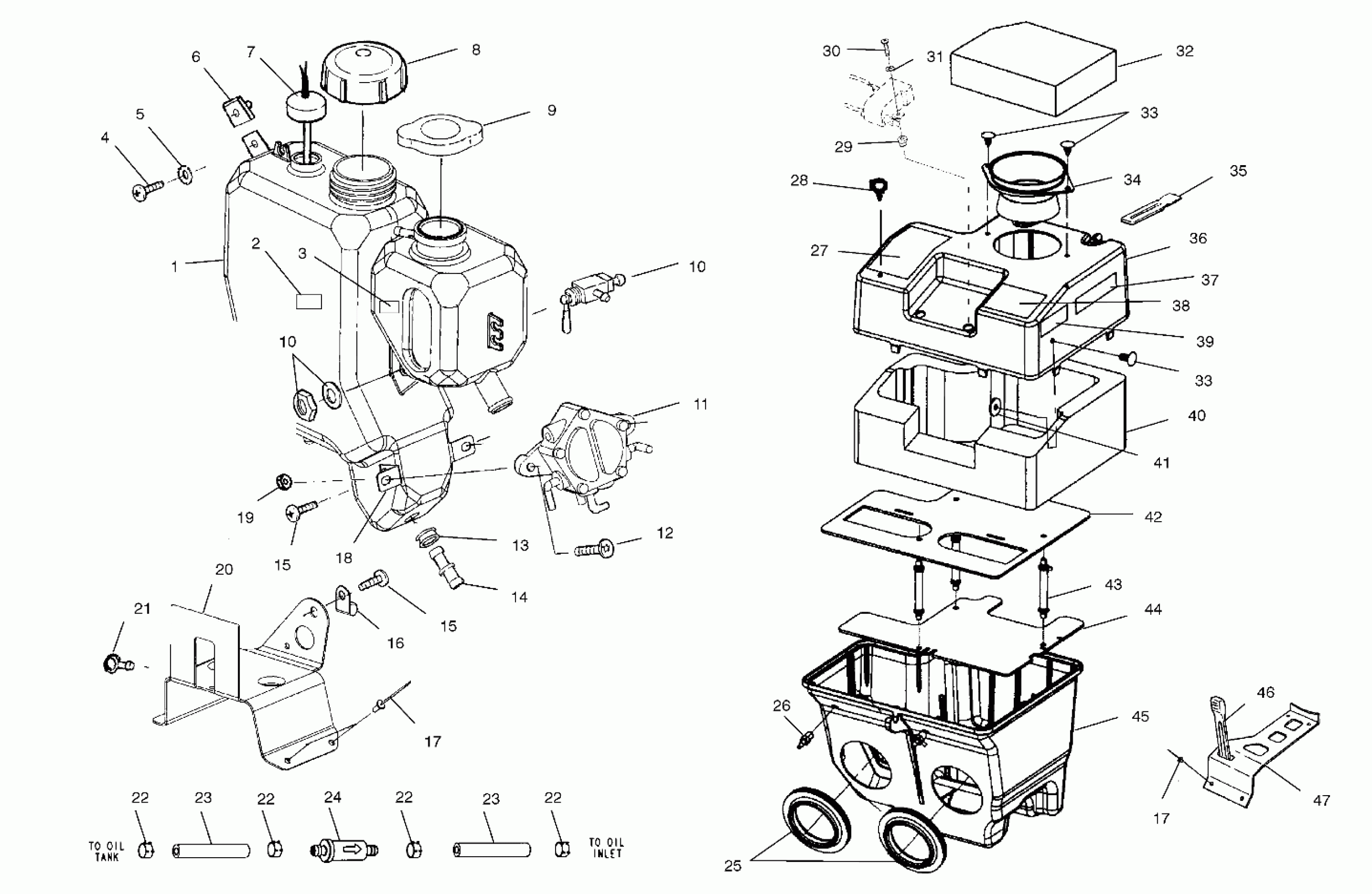

Polaris 600 XC DELUXE - S00SD6DS OIL TANK/AIR BOX - S00SD6DS (4954055405C001) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO Substituted by 1253316

5433344

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

9

CAP, PRESSURE,(13 LB)

2511270

$24.27

10

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C5, Ref. 22)

-------

Unavailable

10

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C5, Ref. 22)

-------

Unavailable

11

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C5, Ref. 20)

-------

Unavailable

12

SCREW,(10)

7517455

$8.99

13

GROMMET-TANK FITTING(10)

7052028

$6.39

14

FTTNG,STRAIGHT,PRESS-IN

7052207

$8.79

15

SCREW(10)

7517615

$3.19

15

SCREW(10)

7517615

$3.19

16

CLAMP-CABLE

7080367

$2.39

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

19

NUT-LOCK(10)

7542122

$1.49

20

BRKT,OIL/COOLANT TANK,ALUM

5243636

Unavailable

21

CLIP, PLASTIC(10)

4020139

$4.79

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

BOOT,CARB

5411109

Unavailable

26

FITTING,HOSE(10)

7052127

$3.19

27

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

28

CLIP,SILENCER,(10)

7670102

$2.39

29

NUT-WELL(10)

7541923

$5.59

30

SCREW(10)

7512279

$1.49

31

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

32

DUCT,AIR INLET,ASM.

2632132

$52.60

33

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

33

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

34

DUCT,AIR INLET,SRP

5433436

Unavailable

35

RETAINER-TAB,(10)

5411075

Unavailable

36

SILENCER TOP,INTAKE,SRP

5433420

Unavailable

37

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

38

DECAL,CAUTION,AIRBOX

7075351

Unavailable

39

DECAL, GREASING [No Longer Available]

7073426

$7.27

40

FOAM,AIRBOX,TOP,INTAKE,SRP

5811820

Unavailable

41

WASHER(10)

7555798

$1.49

42

PLATE-SILENCER,INTAKE,SRP

5811824

Unavailable

43

CONNECTOR-PLATE,SRP

5433437

Unavailable

44

PLATE-SILENCER INTAKE,LWR SRP

5811825

$10.71

45

SILENCER-INTAKE,DRILLED,SRP

5433454

Unavailable

46

STRAP,TIE-DOWN

5411129

$8.89

47

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
