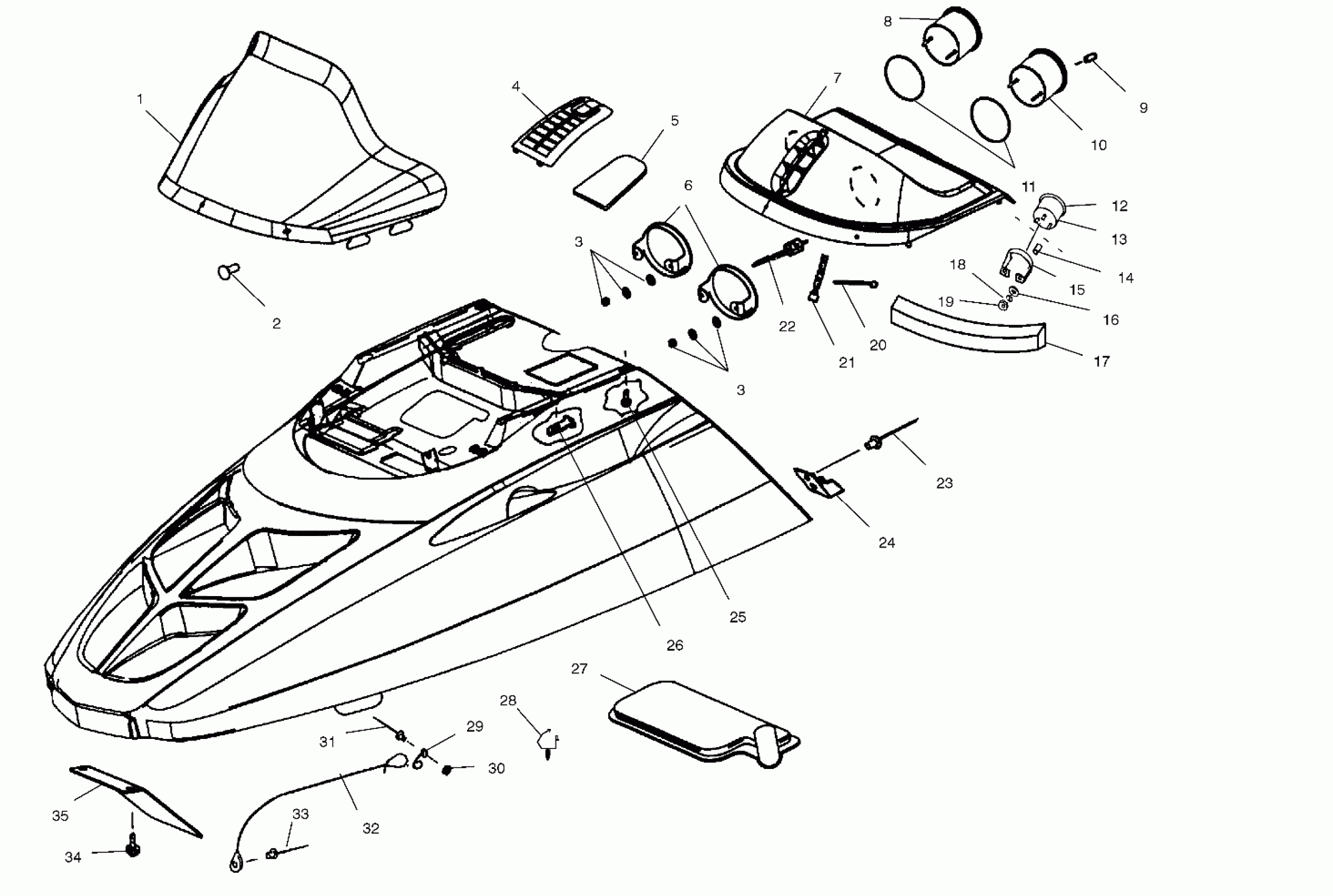

Polaris 600 XC DELUXE - S00SD6DS HOOD - S00SD6DS (4954055405A010) Diagram

#

Description
Price

1

WINDSHIELD-GEN 2,FLR,16" SMOKE

5433166

Unavailable

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

COVER-INTAKE,INSTR,HOUS,SRP

5433419

Unavailable

5

FOAM,PREFILTER,SRP

5811821

Unavailable

6

BRKT,TACH/SPEEDO,5"

3280210

$28.32

7

HOUSING,SRP,MID LEVEL,1UP (Incl. Decals)

2632125

$78.39

8

BULB TAILLIGHT(10)

4030015

$4.03

8

TACH,6 P,WHITE W/FUEL LT

3280329

Unavailable

9

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

10

BULB TAILLIGHT(10)

4030015

$4.03

10

SPEEDO,5",120MPH,WHITE

3280328

Unavailable

11

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

12

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

13

BULB,TAILLIGHT(10)

4030024

$4.84

13

GUAGE,FUEL,2"BACKLIT

3280334

$131.99

13

Fuse

4060139

Unavailable

14

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

15

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

16

Washer

3280231

$0.24

17

FOAM,HEADLIGHT/POD SEAL SRP

5811822

Unavailable

18

WASHER,SPLITLOCK

3280233

Unavailable

19

Nut

3280232

$1.49

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

HARNESS-HEADLIGHT,G2 COMMON Substituted by 2460913

2460732

Unavailable

22

CABLE,SPEEDO,90 IN.

3280341

$60.70

23

RIVET(50)

7621334

$1.49

24

CUP, HOOD LATCH,(10)

5430733

$4.84

25

SCREW(10)

7517441

$2.39

26

RETAINER,WINDSHIELD,(10)

5410970

$1.49

27

COVER,ACCESS,HDLIGHT,SRP

5433723

Unavailable

28

CLIP-ROUTING

7670109

$2.39

28

CLIP,ROSEBUD

4020149

$6.39

29

CLIP,PIGTAIL

5242893

$6.65

30

BURR,RIVET(50)

7555904

$1.49

31

RIVET, BLIND(50)

7621467

$1.49

32

CABLE,HOOD,HYB.

7080764

$28.32

33

POP RIVET(50)

7621402

$1.49

34

SCREW(10)

7512068

$2.39

35

DEFLECTOR-AIR

5243393

Unavailable
