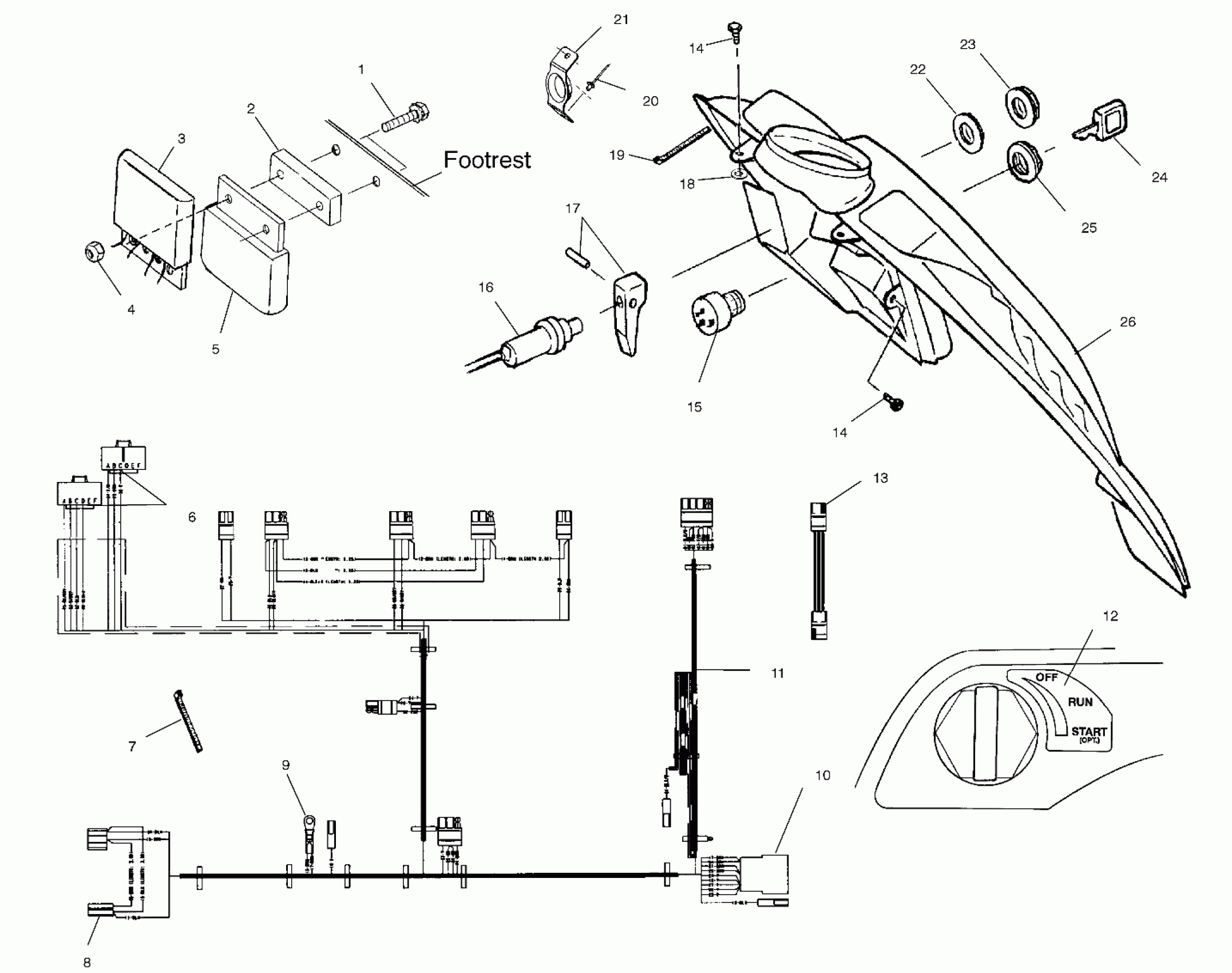

Polaris 600 XC DELUXE - S00SD6DS CONSOLE - S00SD6DS (4954055405A013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR-RECTIFIER,SNO,LR26

4010196

Unavailable

4

NUT(10)

7541925

$1.49

5

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

6

SOCKET-PACKARD#12047767

4010192

Unavailable

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAIN,GEN2,HIGH LVL,COM

2460755

$257.99

12

DECAL,IGN,OFF/RUN/START

7078603

Unavailable

13

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

14

SCREW(10)

7515199

$1.49

14

SCREW(10)

7515199

$1.49

15

KIT,IGN.SWITCH

2200358

$76.89

16

CABLE,CHOKE (Incl. 17,23)

7080636

Unavailable

17

KIT-CHOKE CONTROL

2200188

$24.27

18

WASHER,NYLON

7555932

$2.39

19

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

20

RIVET, POP(50)

7621330

$1.49

21

GUIDE-RECOIL

5243049

$9.70

22

WASHER-LOCK(10)

7571610

$3.99

23

Nut

7080229

$19.99

24

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

25

NUT,IGNITION

7547035

$8.79

26

CONSOLE-HYB,RACER,W/REV Substituted by 5433692

5433543

Unavailable
