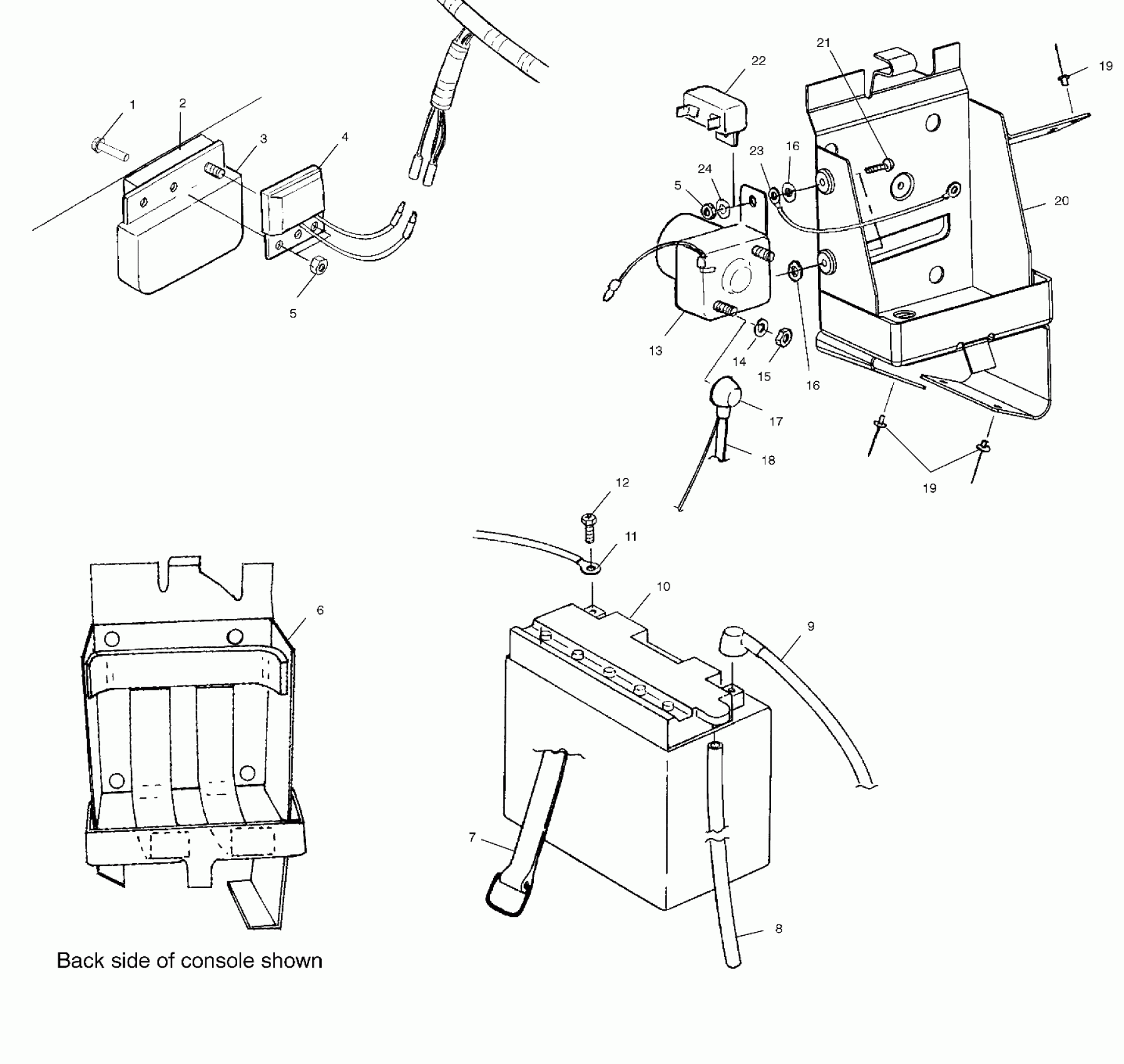

Polaris 600 XC DELUXE - S00SD6DS BATTERY BOX - S00SD6DS (4954055405C006) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

REGULATOR-RECTIFIER,SNO,LR26

4010196

Unavailable

5

NUT(10)

7541925

$1.49

5

NUT(10)

7541925

$1.49

6

PAD-BATTERY

5810290

$7.27

7

STRAP ASM,BATT.HOLD.

2450020

$29.03

8

TUBE,BATTERY VENT

5432077

Unavailable

9

CABLE ASM,SOLENOID

2460393

$36.41

10

Battery

4140006

$99.99

11

CABLE,11",BATT.,BLK.

4010114

Unavailable

12

BOLT,BATT,KIT(SHORT)

2200361

$3.99

13

Switch, Magnetic (See Footnote) (See Starting Motor Pg. D1, Ref. 16)

-------

Unavailable

14

Washer, Spring (See Footnote) (See Starting Motor Pg. D1, Ref. 17)

-------

Unavailable

15

Nut (See Footnote) (See Starting Motor Pg D1, Ref. 15)

-------

Unavailable

16

WASHER(10)

7571602

$4.79

16

WASHER(10)

7571602

$4.79

17

INSULATOR-CABLE

5410346

$6.39

18

CABLE-RED,25"

4010190

Unavailable

19

POP RIVET(50)

7621418

$1.49

19

POP RIVET(50)

7621418

$1.49

20

BATTERY BOX,BLK

1012799-067

$82.39

21

SCREW(10)

7512027

$1.49

22

CIRCUIT BREAKER

2434008

Unavailable

23

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

24

WASHER, FLAT(10)

7558201

$5.79
