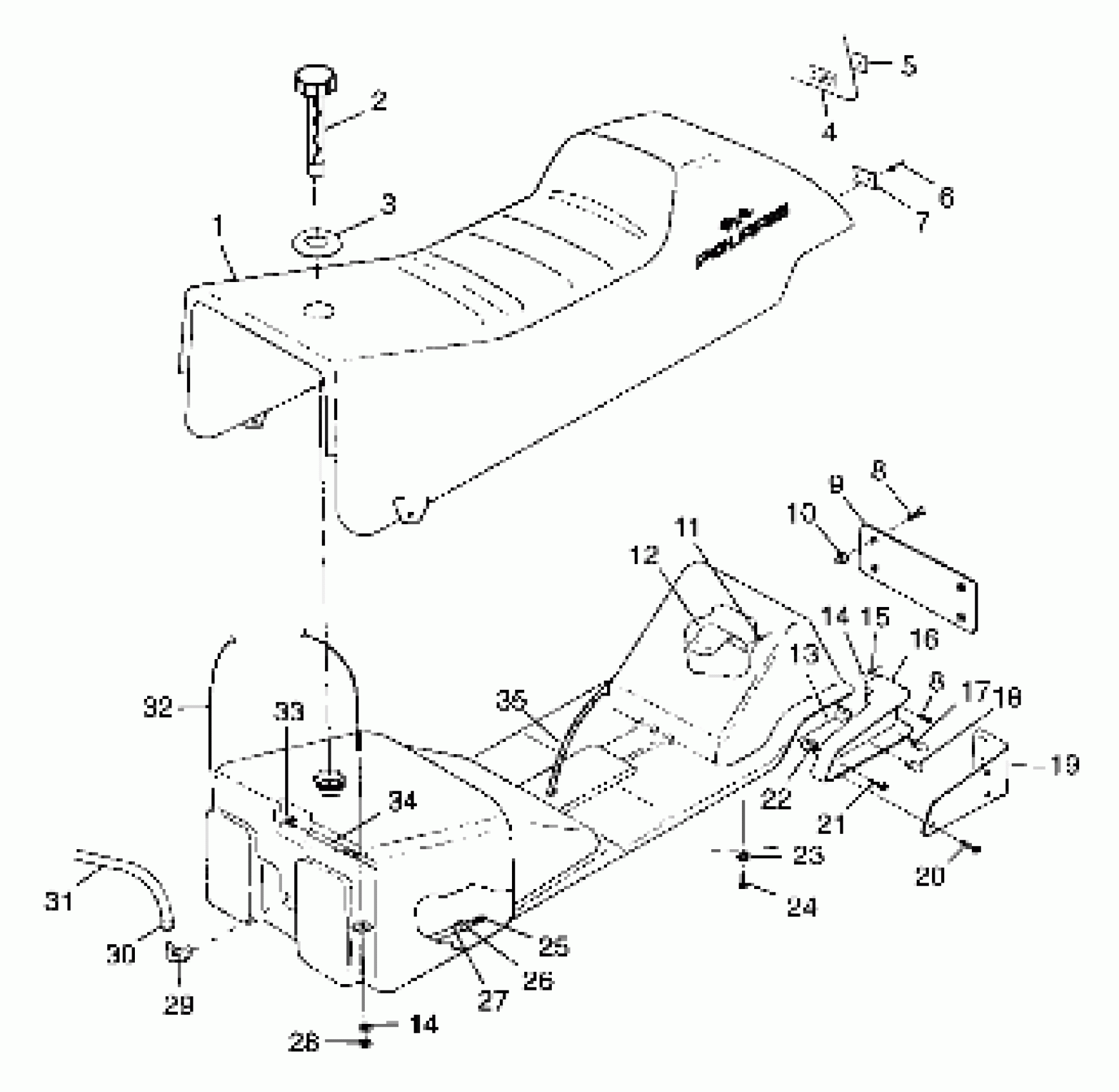

Polaris 600 XC - 099SB6DS SEAT and GAS TANK - 099SB6DS (4948464846a006) Diagram

#

Description
Price

1

SEAT ASM,121,SCULPTED Substituted by 2682471 (Incl. 1,4-22,25-29,32-35)

2682391

Unavailable

1

COVER ASM,SEAT

2682392

Unavailable

2

CAP,GAS,W/GAUGE

2511248

$44.51

3

GROMMET,FUELTANK

5410842

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

RIVET(50)

7621337

$1.49

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

SCREW,SELF-TAP(10)

7522004

Unavailable

8

SCREW,SELF-TAP(10)

7522004

Unavailable

9

REFLECTOR,CTR,SEAT

5432008

Unavailable

10

NUT(10)

7546908

$2.63

11

RIVET(50)

7621472

$1.49

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

BRKT,SEAT MT,BLK

1012643-067

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

16

HOUSING,LH,LENS

5432002

Unavailable

16

HOUSING,RH,LENS

5432003

Unavailable

17

Bulb, Brakelight

4030045

Unavailable

18

BULB, T/L.

4032084

Unavailable

19

LENS,RH

5432032

$44.51

19

LENS,LH

5432031

Unavailable

20

SCREW(10)

7512054

$2.39

21

SCREW(10)

7511954

$1.19

22

NUT, WELL(10)

7541901

$6.39

23

WASHER,WROUGHT(10)

7558302

$1.59

24

SCREW(10)

7515159

$4.79

25

FUELPICKUP,W/STRAINER

7052037

$12.94

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

28

NUT(10)

7541925

$1.49

29

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

30

HOSE CLAMP, RED

7080003

$1.49

31

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

CABLE,TANK,RETENTION

7080559

Unavailable

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79

34

FUELLINE,3MMX7MM

8450061-600

Unavailable

35

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable
