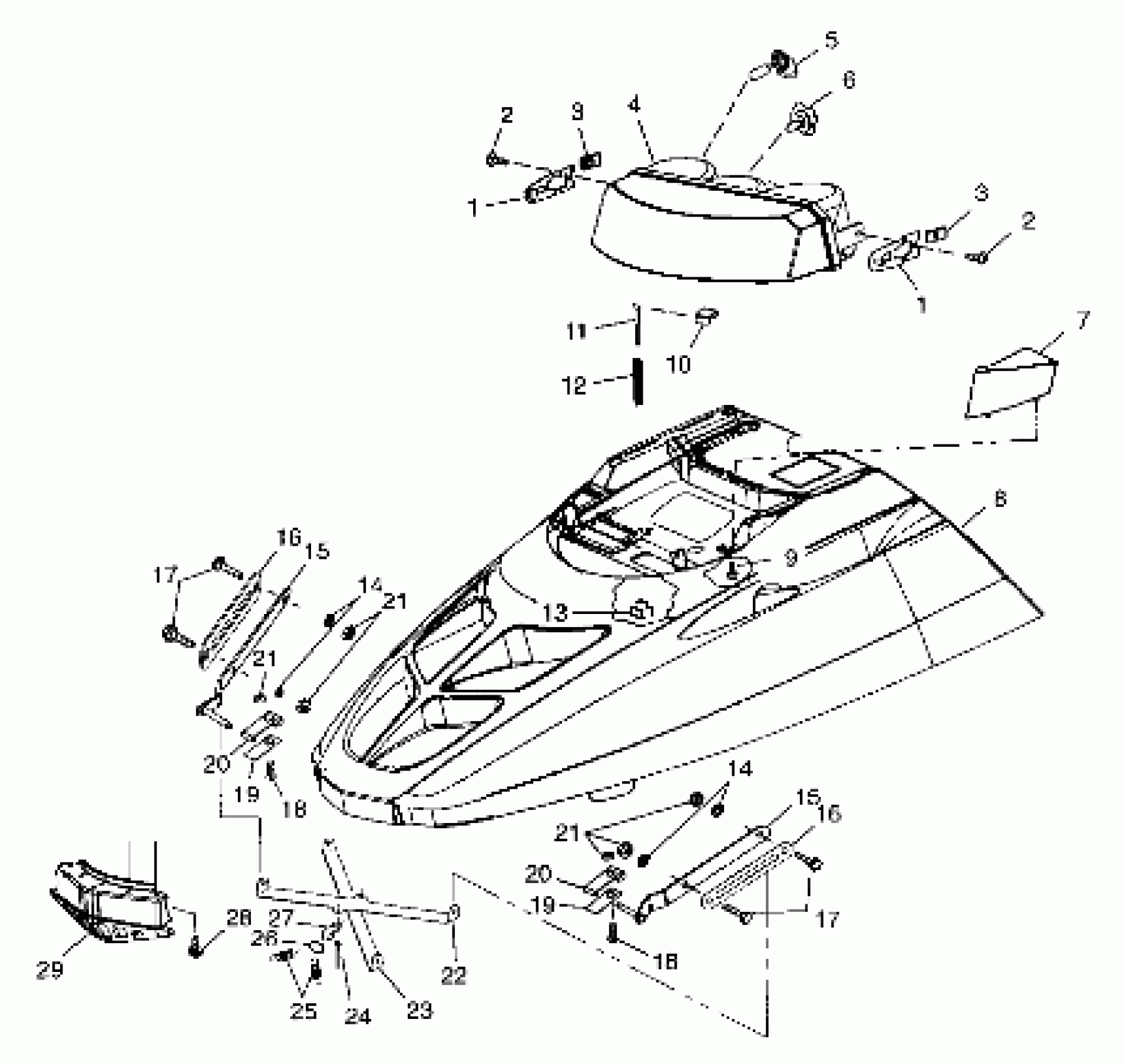

Polaris 600 XC - 099SB6DS HOOD - 099SB6DS (4948464846a009) Diagram

#

Description
Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

H/L ASM,3-BULB (Incl. Bulbs)

2431008

$111.99

5

BULB,HI-BEAM

4030048

$29.03

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

7

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

8

HOOD,HYB,SVC,INDY RED (Incl. Foam/Foil)

2631965-293

Unavailable

9

SCREW(10) Substituted by 7512048

7511953

Unavailable

10

FASTENER-U TYPE CLIP

7670040

$3.99

11

BOLT,TEE ADJUSTER Substituted by 7517746

7515135

$24.99

12

SPRING,H/L.ADJ.

7041308

$3.19

13

KNOB,H/L.ADJUST

7080501

Unavailable

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

HINGE,LH,UPPER

1012750

$48.56

15

HINGE,RH,UPPER

1012751

$43.99

15

HINGE,LH,UPPER

1012750

$48.56

15

HINGE,RH,UPPER

1012751

$43.99

16

PLATE-BOLT

5242948

$9.70

16

PLATE-BOLT

5242948

$9.70

17

BOLT(10) Substituted by 7512247

7515184

Unavailable

17

BOLT(10) Substituted by 7512247

7515184

Unavailable

18

BOLT,(10)

7515203

$3.99

18

BOLT,(10)

7515203

$3.99

19

SHIM-HINGE, LOWER, BLK

5243243-067

Unavailable

19

SHIM-HINGE, LOWER, BLK

5243243-067

Unavailable

20

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

20

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

BRACE,HOOD,UPPER

5242945

$40.46

23

BRACE,HOOD,LOWER

5242946

$40.46

24

RIVET-3/16-.090-.290

7661637

$1.49

25

SPRING-EXT.

7041732

$7.19

26

SPRING-ATTACHMENT RING(10)

7041760

$7.99

27

CLAMP, RETAINER(10)

7080372

$3.99

28

SCREW(10)

7517441

$2.39

29

SCREEN,FRONT,HYB

5432931

$36.41
