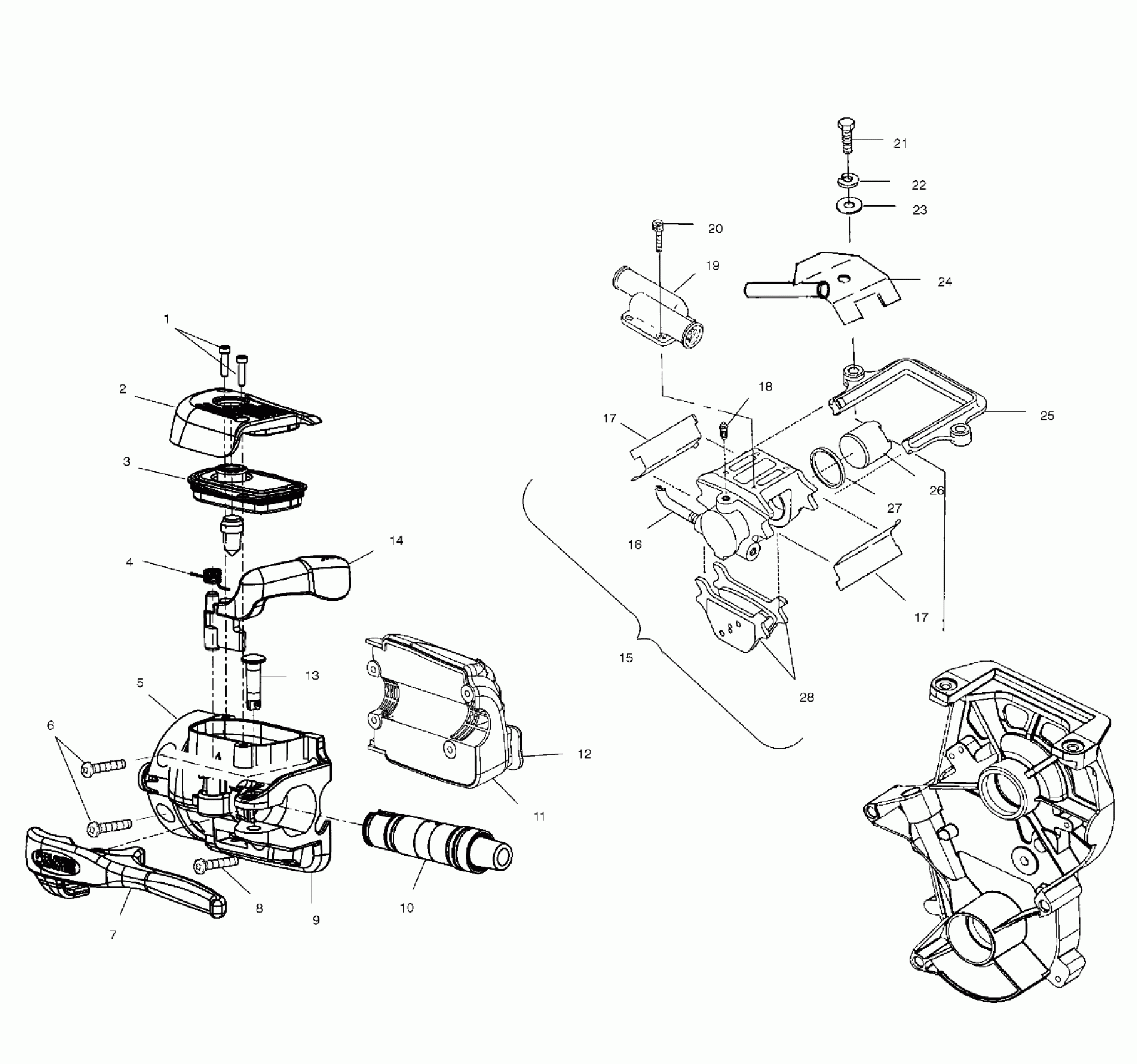

Polaris 600 XC - 099SB6DS BRAKE - 099SB6DS (4948464846a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

KIT,LEVER&PIVOT PIN,(HAYES) Substituted by 2201569

2201253

Unavailable

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

BUTTON SWITCH HI/LO

5433291

Unavailable

13

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

14

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

15

CALIPER ASM,BRAKE,HD,LIQ,NO SW Substituted by 1910348 (Incl. 26,27,28)

1930894

Unavailable

16

LINE,BRAKE

1930749

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT, INLET

1930735

$9.11

19

COOLER,WATER,BRAKE

1930728

$62.39

19

GASKET,BRK.COOLER

2201024

$7.99

20

PK/4,SCREW SET (Pkg. of 4)

1930729

$29.49

21

BOLT(10)

7515521

$3.99

22

WASHER(10)

7552603

$1.49

23

WASHER(10)

7555806

$1.49

24

GUIDE,ROPE,CHAINCASE-Z

1012581

Unavailable

25

KIT,CALIPER BRKT.

1930733

Unavailable

26

KIT, PISTON SEAL (Incl. 27)

1930734

Unavailable

27

SEAL

2200466

$32.37

28

KIT,BRAKEPAD,HD,TYPE 69 Substituted by 2201430 (Incl. 17)

2201020

Unavailable
