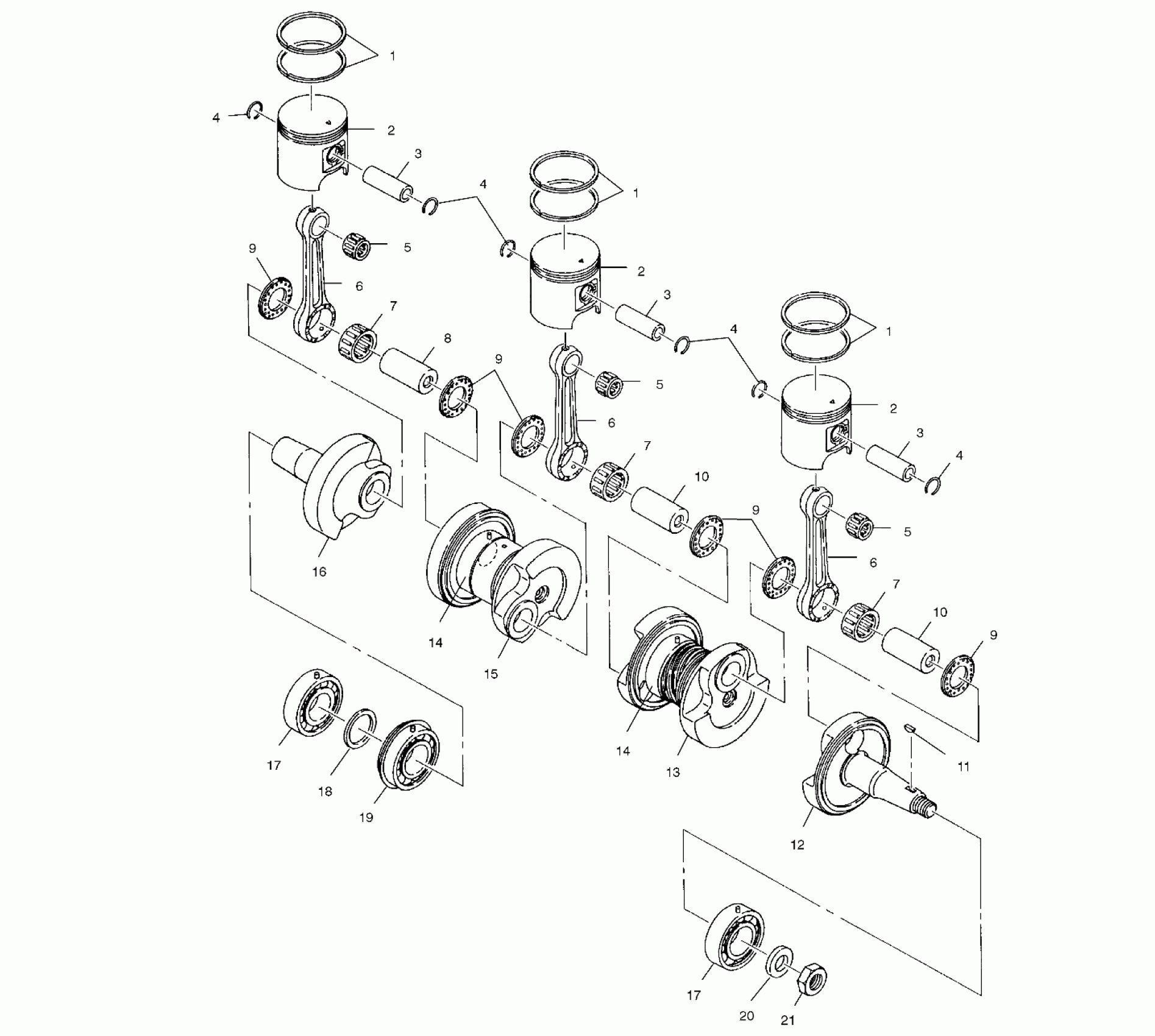

Polaris 600 TRIUMPH - S00SB6AS PISTON and CRANKSHAFT - S00SB6AS (4953935393c008) Diagram

#

Description
Price

1

RING, PISTON .010 O/S (0.25mm O/S)

3083358

Unavailable

1

RING,PISTON .020 O/S (0.50mm O/S)

3083359

Unavailable

1

RING, PISTON (Standard)

3083349

Unavailable

1

RING, PISTON .010 O/S (0.25mm O/S)

3083358

Unavailable

1

RING,PISTON .020 O/S (0.50mm O/S)

3083359

Unavailable

1

RING, PISTON (Standard)

3083349

Unavailable

1

RING, PISTON .010 O/S (0.25mm O/S)

3083358

Unavailable

1

RING,PISTON .020 O/S (0.50mm O/S)

3083359

Unavailable

1

RING, PISTON (Standard)

3083349

Unavailable

2

PISTON (0.25 O/S) (0.25mm O/S)

3085874

$118.99

2

PISTON (0.50 O/S) (0.50mm O/S)

3085875

Unavailable

2

PISTON (STD) (Standard)

3085873

$138.08

2

PISTON (0.25 O/S) (0.25mm O/S)

3085874

$118.99

2

PISTON (0.50 O/S) (0.50mm O/S)

3085875

Unavailable

2

PISTON (STD) (Standard)

3085873

$138.08

2

PISTON (0.25 O/S) (0.25mm O/S)

3085874

$118.99

2

PISTON (0.50 O/S) (0.50mm O/S)

3085875

Unavailable

2

PISTON (STD) (Standard)

3085873

$138.08

3

Pin, Piston

3085021

Unavailable

3

Pin, Piston

3085021

Unavailable

3

Pin, Piston

3085021

Unavailable

4

CLIP,PISTON PIN,(10)

3084456

Unavailable

4

CLIP,PISTON PIN,(10)

3084456

Unavailable

4

CLIP,PISTON PIN,(10)

3084456

Unavailable

4

CLIP,PISTON PIN,(10)

3084456

Unavailable

5

BEARING,SMALL END

3080998

Unavailable

5

BEARING,SMALL END

3080998

Unavailable

5

BEARING,SMALL END

3080998

Unavailable

6

ROD,CONNECTING

3085627

$84.50

6

ROD,CONNECTING

3085627

$84.50

6

ROD,CONNECTING

3085627

$84.50

7

BEARING,LARGE END

3085628

$31.99

7

BEARING,LARGE END

3085628

$31.99

7

BEARING,LARGE END

3085628

$31.99

8

PIN-CRANK 2

3083254

Unavailable

9

SPACER(CRANKPIN)

3083277

$15.99

9

SPACER(CRANKPIN)

3083277

$15.99

9

SPACER(CRANKPIN)

3083277

$15.99

9

SPACER(CRANKPIN)

3083277

$15.99

10

PIN, CRANK, #1

3084447

$32.15

10

PIN, CRANK, #1

3084447

$32.15

11

KEY Substituted by 3081543

3080130

Unavailable

12

CRANKSHAFT 1 Substituted by 3084597 (MAG Side)

3084441

$226.99

12

CRANKSHAFT ASM. (Incl. 6-10,12-17)

3085437

$1,699.99

13

CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)

3084443

Unavailable

13

CRANKSHAFT,CTR. (Center) (Incl. 6-10,13,15)

3085438

$869.99

14

BEARING, BALL

3084586

$44.99

14

BEARING, BALL

3084586

$44.99

15

CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 8)

3084444

$549.99

16

CRANKSHAFT#3,PTO SIDE (PTO Side)

3085439

$273.59

17

BEARING, BALL

3084681

Unavailable

17

BEARING, BALL

3084681

Unavailable

18

SPACER,CRANKSHAFT

3080447

$1.99

19

BEARING, BALL

3084599

Unavailable

20

Washer

3084457

Unavailable

21

NUT

3083093

$19.99
