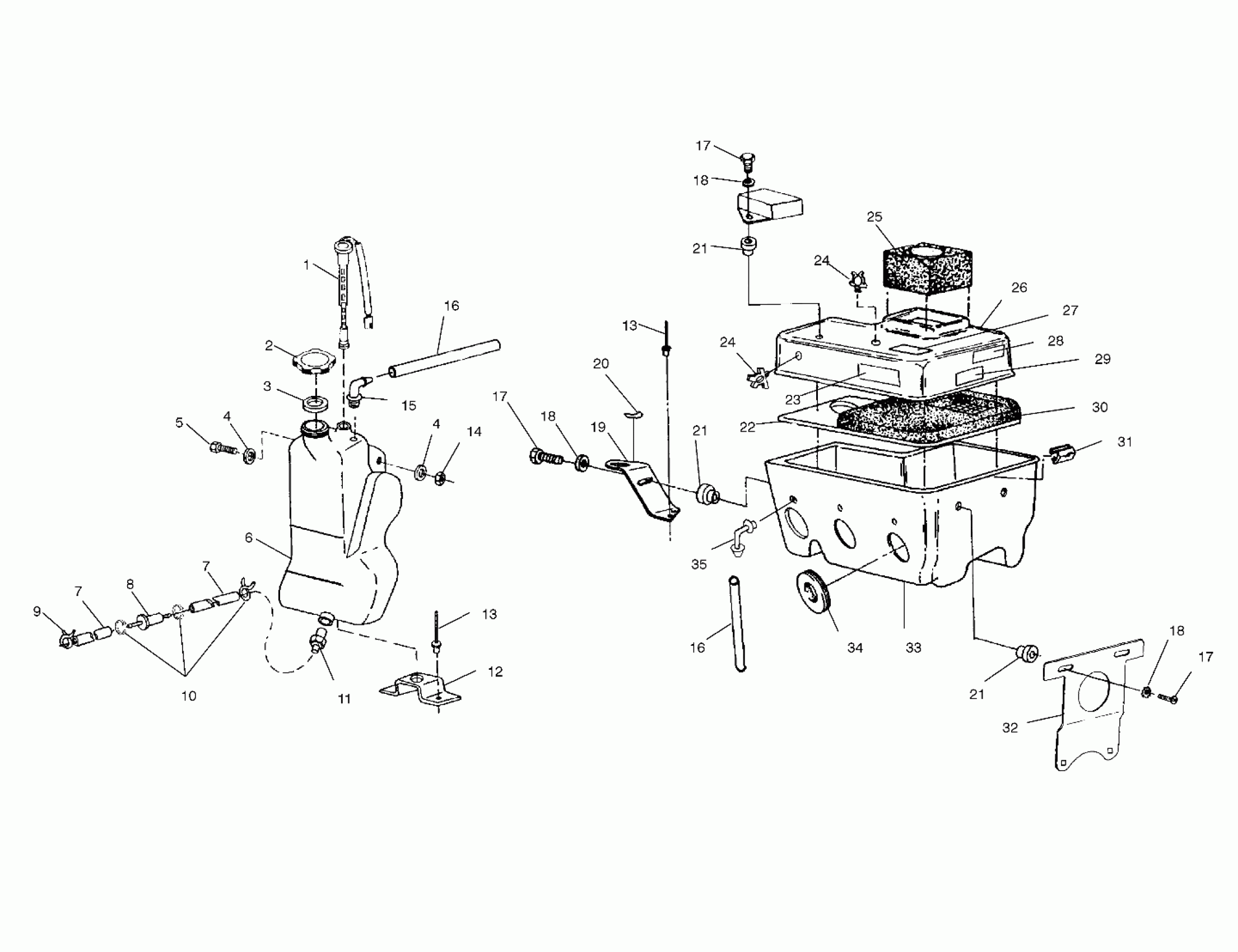

Polaris 600 TRIUMPH - S00SB6AS OIL TANK/AIR BOX - S00SB6AS (4953935393c005) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

BOLT(10)

7512240

$3.99

6

Tank, Oil

5431437

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

9

CLAMP-HOSE,(10)

7080236

$1.59

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

FITTING, OUTLET

7052042

$8.99

12

BRKT,OILTANK,COINED

5241334

$9.70

13

RIVET,INTERLOCK,B(50)

7661638

$1.49

13

RIVET,INTERLOCK,B(50)

7661638

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

FITTING,90 DEG,1/8,(10)

7052095

$4.79

16

FUELLINE,3MMX7MM

8450061-600

Unavailable

16

FUELLINE,3MMX7MM

8450061-600

Unavailable

17

SCREW(10)

7512222

$2.39

17

SCREW(10)

7512222

$2.39

17

SCREW(10)

7512222

$2.39

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

BRKT,AIR SILENCER,W/TAB,BLK.

5240824-067

Unavailable

20

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

21

NUT-WELL(10)

7541923

$5.59

22

PLATE, AIR SILENCER

5850102

Unavailable

23

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

24

CLIP, PLASTIC(10)

4020139

$4.79

24

CLIP, PLASTIC(10)

4020139

$4.79

25

FOAM,AIRBOX CHIMNEY,HYB.

5811628

$36.41

26

COVER,SILENCER,DRILLED

5431958

Unavailable

27

DECAL,CAUTION,AIRBOX

7075351

Unavailable

28

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

29

DECAL, GREASING [No Longer Available]

7073426

$7.27

30

BAFFLE ASM.

1253110

Unavailable

31

CLIP, AIR BOX,(10)

7670055

$7.99

32

BRKT,AIR BOX

5241080-067

Unavailable

33

SILENCER-INTAKE,DRILLED

5433405

Unavailable

34

BOOT,CARB,63MM.

5411424

Unavailable

35

FITTING,(10)

7052077

$6.39
