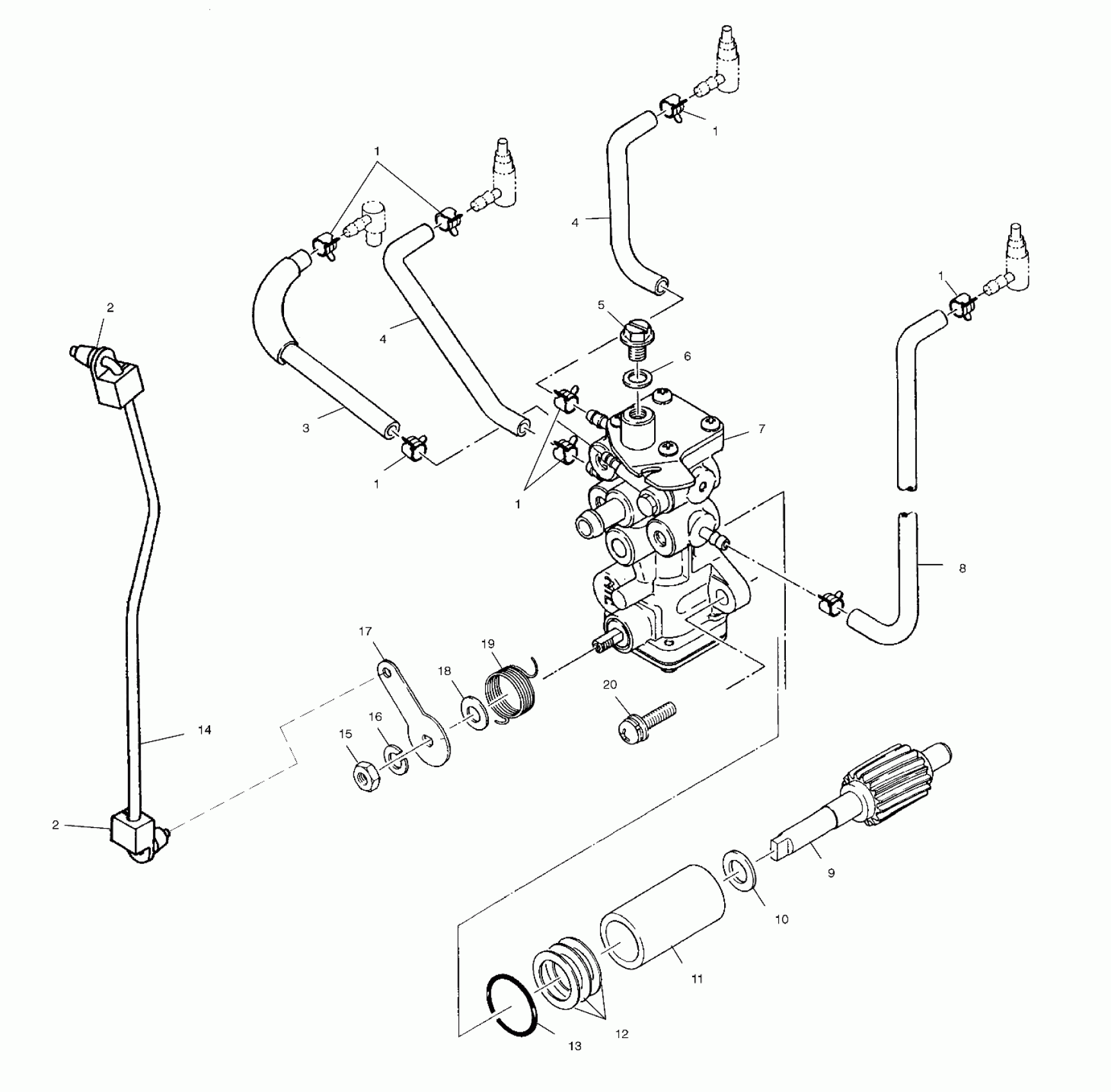

Polaris 600 TRIUMPH - S00SB6AS OIL PUMP - S00SB6AS (4953935393c013) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

BUSHING,LINKAGE

3240234

Unavailable

2

BUSHING,LINKAGE

3240234

Unavailable

3

PIPE,RUBBER(8MMX1M.)ACCS (290mm)

3085172

$36.19

4

PIPE,VINYL 1 (120mm)

3085157

$29.99

4

PIPE,VINYL 1 (120mm)

3085157

$29.99

5

SCREW-AIR VENT

3083125

Unavailable

6

PACKING(10)

3083126

$4.03

7

PUMP,OIL (Incl. 5,6,7,13-19)

3086104

Unavailable

8

PIPE 1,VINYL (210mm)

3084467

$28.32

9

GEAR,SMALL,OIL PUMP

3083131

$89.99

10

SPACER

3083130

$1.59

11

BUSHING(OIL PUMP)

3083353

$31.99

12

SPACER #3 (.6mm)

3083673

Unavailable

12

SPACER #2 (.3mm)

3083672

Unavailable

12

SPACER #1 (.15mm)

3083671

Unavailable

13

O RING

3083127

Unavailable

14

ROD

3086105

Unavailable

15

NUT(10)

3083120

$3.19

16

WASHER-SPRING(10)

3083121

$299.99

17

CONTROL-LEVER

3086109

Unavailable

18

COLLAR, CAMSHAFT(10)

3083445

$2.39

19

SPRING AND LEVER

3086110

$53.59

20

SCREW&WASHER,(10)

3083783

$2.39
