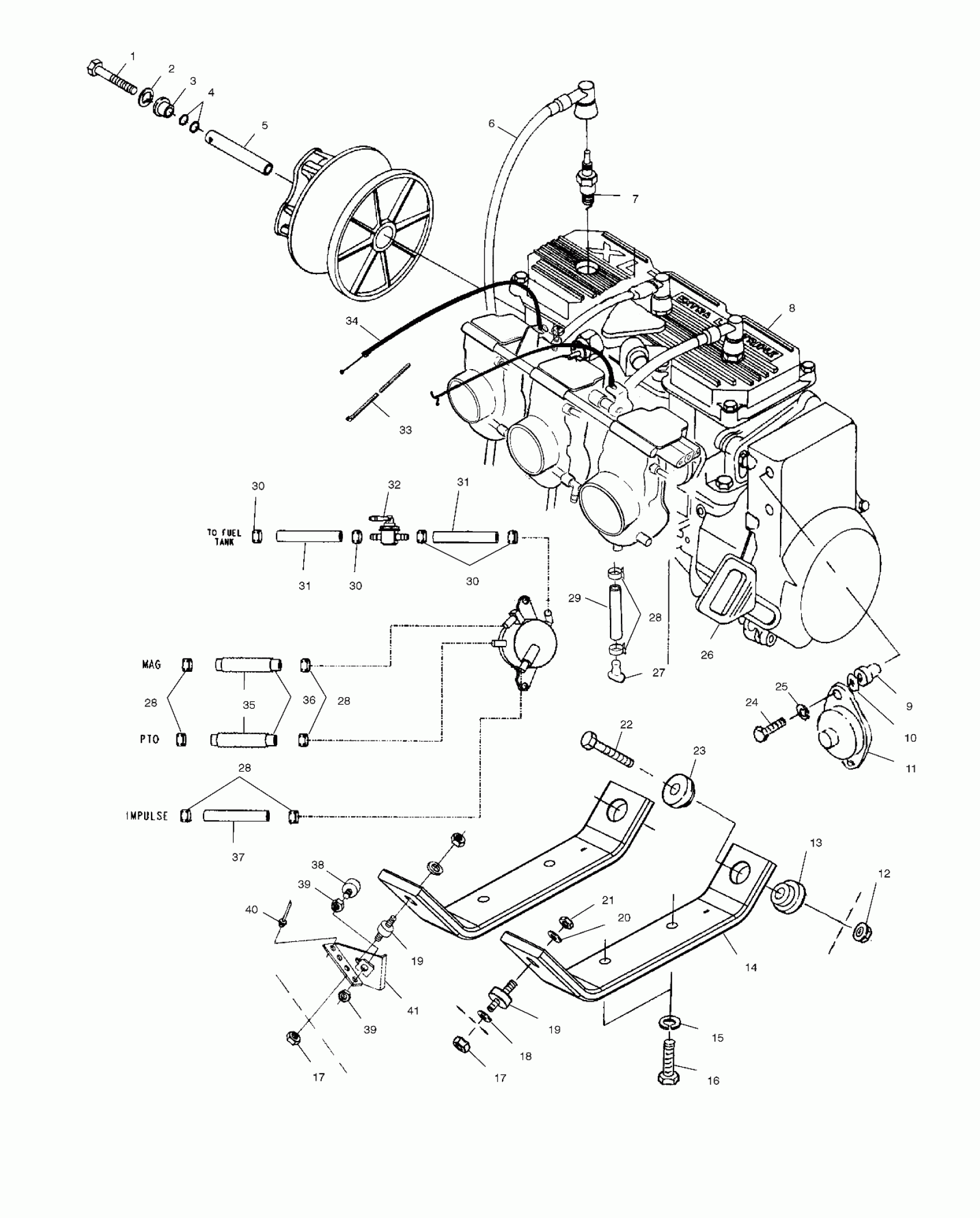

Polaris 600 TRIUMPH - S00SB6AS ENGINE MOUNTING - S00SB6AS (4953935393c003) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

CONDUIT,CONVOLUTED Substituted by 4010051-30

4010051

Unavailable

7

SPARKPLUG(8)

3070165

$3.99

8

ENG.(S.B.)EC58PL-16 [No Longer Available] (EC58PL161) (See Footnote) NOTE: The Short Block Engine assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & cranksha

3085649

Unavailable

9

NUT-WELL(10)

7541923

$5.59

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

12

NUT,FLANGE(10)

7542522

$5.59

13

MOUNT-ENGINE RUBBER,BOTTOM

5411686

$28.32

14

PLATE,ENGINE,LH

5242507

Unavailable

14

PLATE,ENGINE,RH

5242508

Unavailable

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT(10)

7512575

Unavailable

17

NUT,FLEXLOCK,(10)

7547008

$6.39

17

NUT,FLEXLOCK,(10)

7547008

$6.39

18

WASHER,FLAT(10)

7555915

$3.19

19

MOUNT,ENG.

3110061

$84.99

19

MOUNT,ENG.

3110061

$84.99

20

WASHER(10)

7555893

$1.49

21

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

22

SCREW(10)

7512530

$5.59

23

MOUNT-ENGINE RUBBER,TOP

5411685

$24.27

24

SCREW(10)

7512222

$2.39

25

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

26

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

27

PLUG,TRAP

5431893

$12.94

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

29

HOSE,WATERTRAP,5/16,45�

5411708

Unavailable

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

31

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

32

VALVE,FUEL SHUT-OFF

7052060

Unavailable

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE,THROT,SINGLE,RACK CARB.

7080770

Unavailable

35

CONDUIT,CONVOL.(153CM)

8360049-153

Unavailable

36

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

37

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

38

STOP,TORQUE,COARSE

3110056

Unavailable

39

NUT,HEX(10)

7542414

$4.79

39

NUT,HEX(10)

7542414

$4.79

40

RIVET,INTERLOCK,B(50)

7661638

$1.49

41

LIMITER

1011503-067

Unavailable
