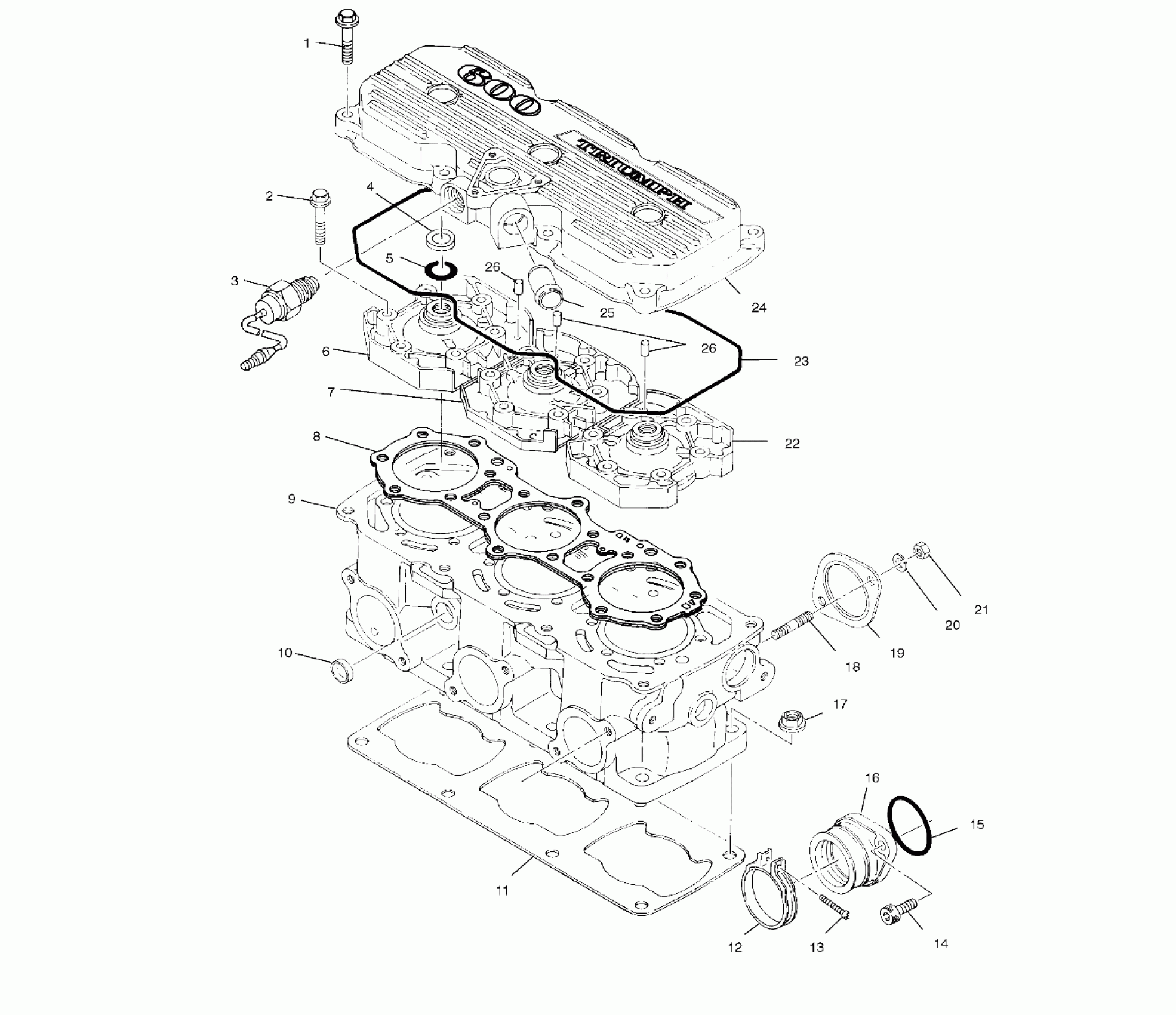

Polaris 600 TRIUMPH - S00SB6AS CYLINDER - S00SB6AS (4953935393c007) Diagram

#

Description
Price

1

Bolt, Flange

3084437

Unavailable

2

BOLT, FLANGE ,(10)

3084435

Unavailable

3

SWITCH,THERMO. (1055 C)

3086101

Unavailable

4

SPACER

3084722

Unavailable

5

O RING

3085192

Unavailable

6

HEAD,CYL.#3,PTO (PTO)

3085419

$95.13

7

HEAD,CYL.#2,CTR. (Center)

3085418

Unavailable

8

GASKET,HEAD

3085613

Unavailable

9

CYLINDER (Incl. 10,18)

3086099

$734.99

10

PLUG

3084428

$3.51

11

GASKET, CYLINDER

3084593

Unavailable

12

BAND ASM. (Incl. 13)

3083166

$19.84

13

SCREW,(10)

3081497

$2.39

14

Bolt, Allen

3081330

$3.99

15

O-RING

3085619

$20.22

16

ADAPTER (Incl. 15)

3086102

Unavailable

17

NUT-FLANGE(10)

3082911

$1.99

18

STUD,(10)

3085326

Unavailable

19

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

20

WASHER LOCK ,(10)

3080530

$3.19

21

NUT(10)

3080285

Unavailable

22

HEAD,CYL.#1,MAG. (MAG)

3085417

Unavailable

23

O-RING, (HEADCOVER)

3084434

Unavailable

24

COVER-HEAD * (Incl. 25)

3086831

$216.17

25

Pipe, Water

3083452

Unavailable

26

PIN, DOWEL

3084721

$4.79

26

PIN, DOWEL

3084721

$4.79
