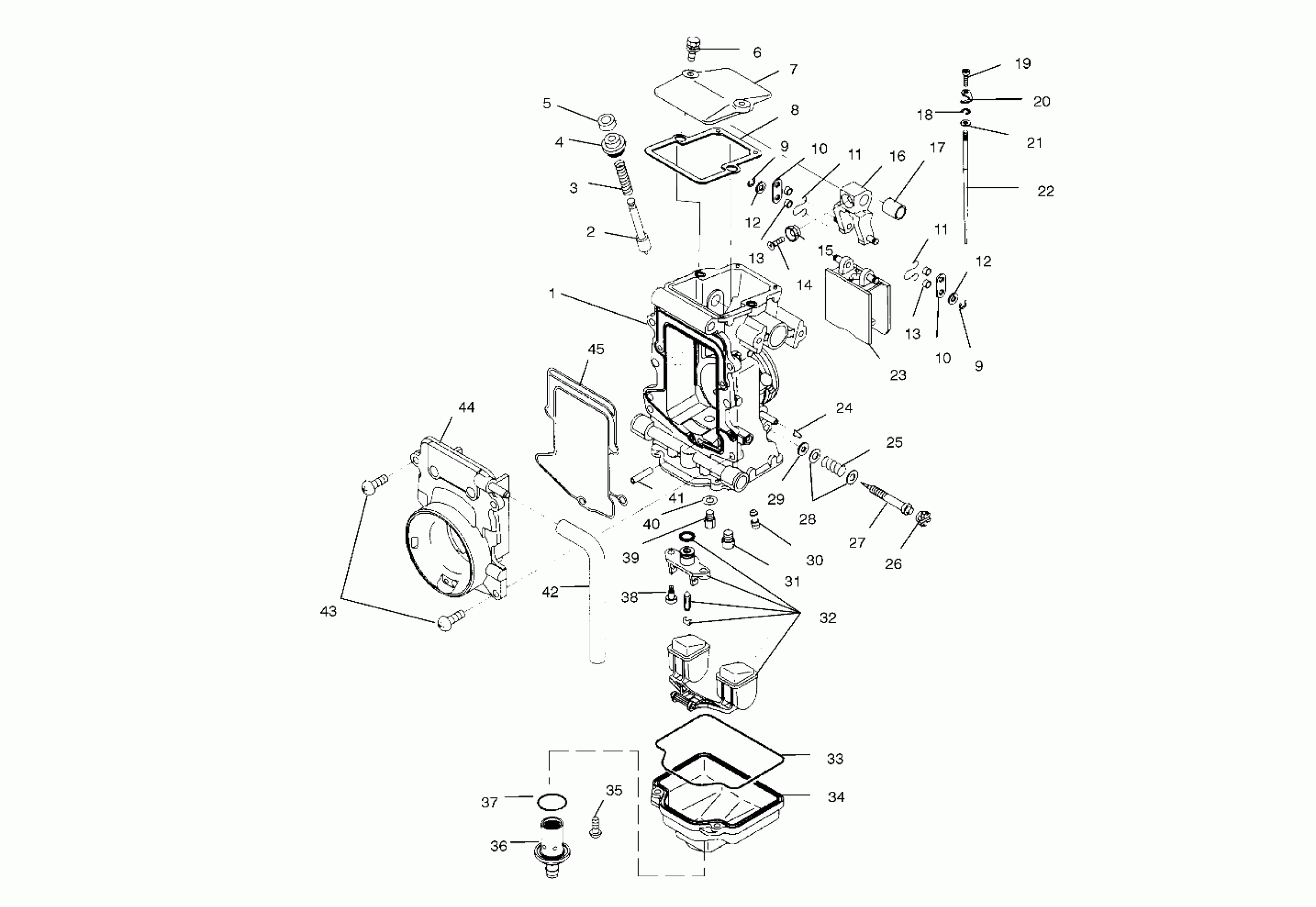

Polaris 600 TRIUMPH - S00SB6AS CARBURETOR - S00SB6AS (4953935393c011) Diagram

#

Description
Price

1

Asm., Mixing Body (See Footnote) (See Carburetor Pg. C10, Ref. 21)

-------

Unavailable

2

PLUNGER ASM./258

3130828

$32.37

3

SPRING,STARTER

3130829

$12.94

4

HOLDER,STARTER GUIDE

3130830

$32.37

5

CAP,STARTER,(RUBBER)

3130831

$7.27

6

DESC NOT_AVAILABLE

3130979

Unavailable

7

CAP-TOP

3130976

$50.99

8

Gasket

3130871

$20.22

9

E-RING Substituted by 3130847

3130980

Unavailable

9

E-RING Substituted by 3130847

3130980

Unavailable

10

Plate

3130857

$7.27

10

Plate

3130857

$7.27

11

Clip

3130856

$8.79

11

Clip

3130856

$8.79

12

WASHER Substituted by 3130846

3130981

Unavailable

12

WASHER Substituted by 3130846

3130981

Unavailable

13

Ring

3130845

$8.89

13

Ring

3130845

$8.89

14

SCREW (PTO Side)

3130854

$3.19

14

SCREW (Center and MAG Side)

3130850

$4.79

15

RING (Center and MAG Side)

3130848

$32.37

16

LEVER ASM. (PTO Side)

3130855

$64.75

16

LEVER ASM. (Center and MAG Side)

3130849

$64.75

17

RING (PTO Side Only)

3140032

Unavailable

18

E-Ring

3130868

$8.89

19

Screw

3130844

$3.99

20

Plate

3130843

$8.89

21

PACKING Substituted by 3130867

3130974

Unavailable

22

NEEDLE-JET (9DH3-54-4)

3130972

Unavailable

23

VALVE,PISTON,ASM. Substituted by 3130791

3130973

Unavailable

24

CAP

3130479

$14.56

25

SPRING

3130836

$7.27

26

Cap

3130986

$9.70

27

Adjuster

3130987

$20.22

28

Washer

3130837

$3.19

29

Packing

3130835

$2.41

30

JET,PILOT,#35(10) (#35)

3130066

$8.89

31

JET,STARTER,#VM11/22-155 (#155)

3130771

Unavailable

32

FLOAT,ASM. Substituted by 3130859

3130977

Unavailable

33

O-RING,FLOAT BOWL

3130861

$12.13

34

FLOAT,BODY

3130858

$119.99

35

SCREW,FLOAT BOWL

3130824

$3.19

36

NIPPLE,DRAIN SCREW

3130862

Unavailable

37

O-RING,DRAIN SCREW

3130863

$2.41

38

SCREW,VALVE SEAT

3130860

$8.79

39

JET,MAIN,HX.HD#360(10) (#360)

3130139

$7.99

40

Washer

3130949

$3.99

41

JET Substituted by 3131257

3130993

$20.22

42

HOSE

3130994

Unavailable

43

SCREW,AIR FUNNEL

3130825

$3.19

44

FUNNEL

3130975

$53.59

45

O-RING,AIR FUNNEL

3130870

$24.27
