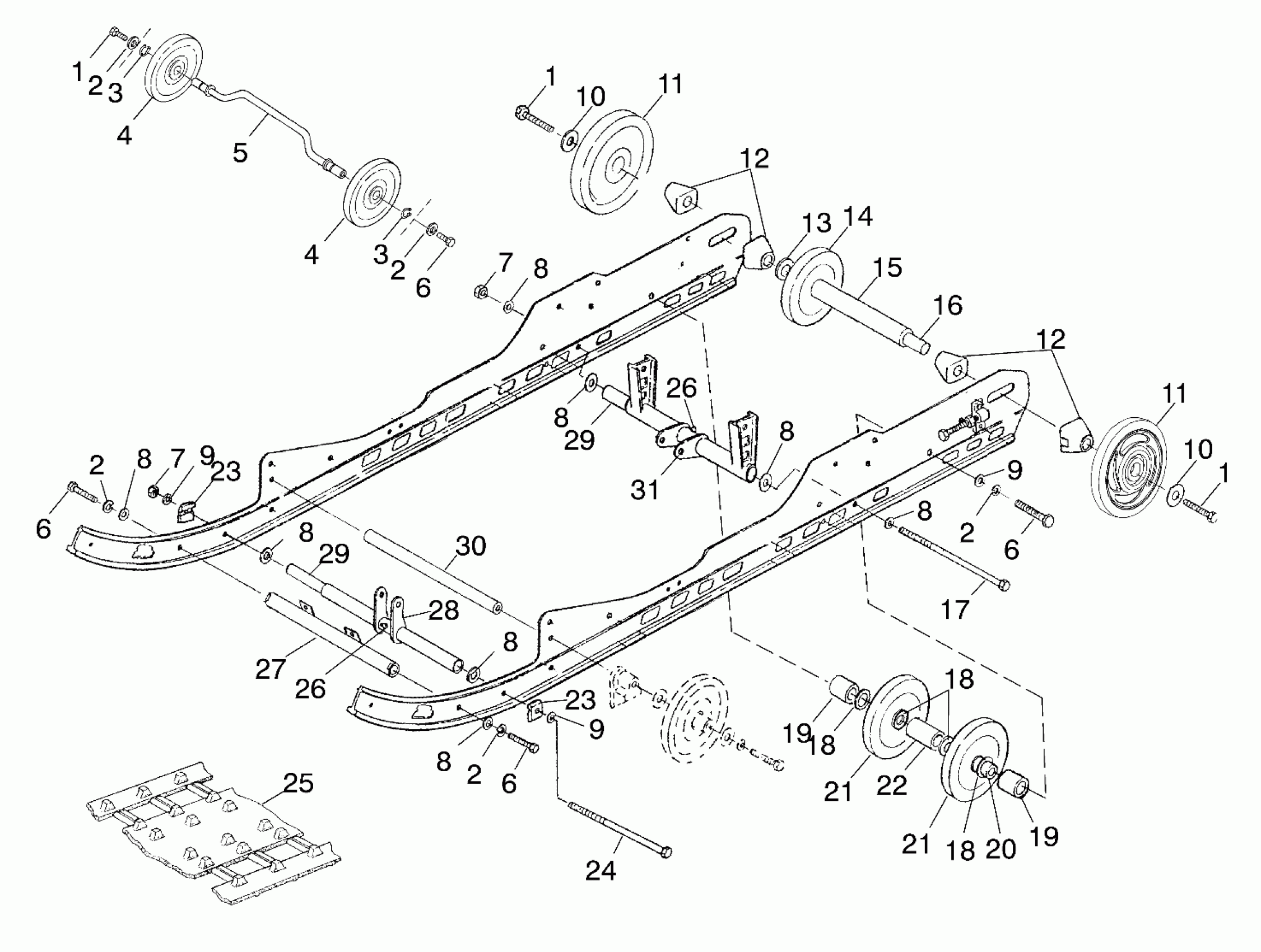

Polaris 600 TOURING - S00ST6ES SUSPENSION - S00ST6ES (4954135413B012) Diagram

#

Description
Price

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

RING,RETAINING(10)

7710439

$3.99

3

RING,RETAINING(10)

7710439

$3.99

4

Wheel, Bogie

1594067

$44.51

4

Wheel, Bogie

1594067

$44.51

5

TENSIONER,SHAFT,BLK.

1541025-067

Unavailable

6

SCREW,(10)

7517247

$3.19

6

SCREW,(10)

7517247

$3.19

6

SCREW,(10)

7517247

$3.19

6

SCREW,(10)

7517247

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

11

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

11

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

13

BUSHING(10)

7555918

$1.59

14

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

15

SPACER-IDLER, LONG

5333285

$11.99

16

SHAFT,IDLER

5020744

$59.99

17

Screw

7517353

Unavailable

18

MACHINERY BUSHING(10)

7556301

$3.19

18

MACHINERY BUSHING(10)

7556301

$3.19

18

MACHINERY BUSHING(10)

7556301

$3.19

19

SPACER, OUTER

5332784

Unavailable

19

SPACER, OUTER

5332784

Unavailable

20

SHAFT-PIVOT ARM Substituted by 5020724

5020415

$29.99

21

Asm., Wheel, Bogie (See Footnote) (See Suspension Pg. B13, Ref. 4)

-------

Unavailable

21

Asm., Wheel, Bogie (See Footnote) (See Suspension Pg. B13, Ref. 4)

-------

Unavailable

22

TUBE, SUSPENSION

5332783

Unavailable

23

BOSS,BOLT HEAD

5131112

$19.99

23

BOSS,BOLT HEAD

5131112

$19.99

24

SCREW,(10)

7517380

$15.03

25

Clip, Slide

5241473

Unavailable

25

Clip, Guide

5241474

Unavailable

25

TRACK,133"X.82 LIGHTNING

5411687

Unavailable

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

28

ARM,SHOCK PIVOT

1540968-067

$49.59

29

SHAFT

5333404

$24.27

29

SHAFT

5333404

$24.27

30

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

31

ARM,R.PIVOT,X12,BLK

1541141-067

$113.99
