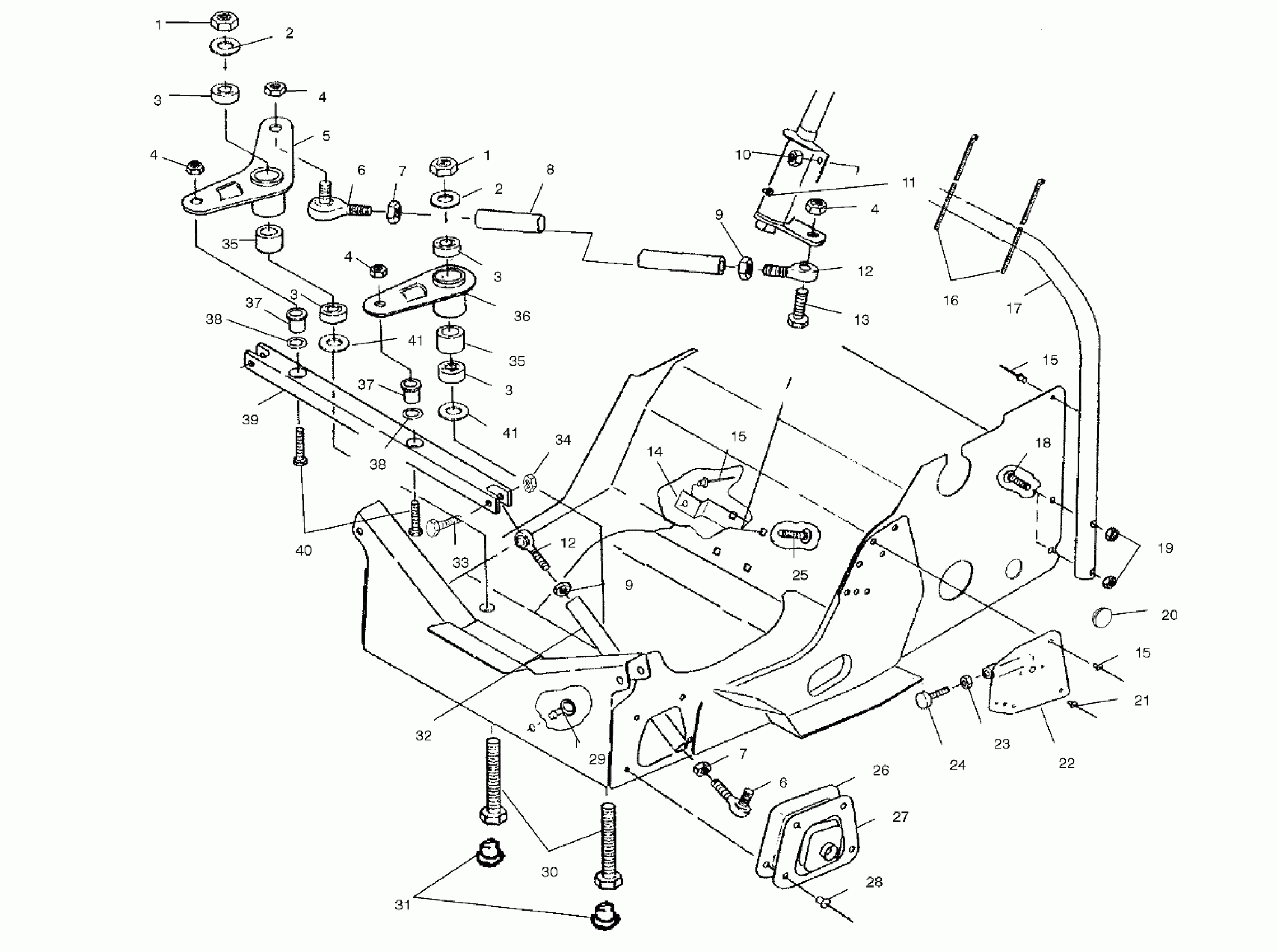

Polaris 600 TOURING - S00ST6ES STEERING - S00ST6ES (4954135413B006) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

3

BUSHING

3563907

$3.99

4

NUT LOCK(10)

7542403

$3.99

4

NUT LOCK(10)

7542403

$3.99

4

NUT LOCK(10)

7542403

$3.99

4

NUT LOCK(10)

7542403

$3.99

5

ZERK,FITTING,THREADED(10)

7080433

$1.49

5

PITMAN ARM ASM. (Incl. 3,35)

1822417

$28.57

6

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

6

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

7

NUT HEX(10)

7542401

$2.39

7

NUT HEX(10)

7542401

$2.39

8

ROD,DRAG LINK

5333408

$20.63

9

NUT

7542424

$1.49

9

NUT

7542424

$1.49

10

NUT FLEX-LOC(10)

7542303

$6.39

11

FITTING,LUB/VEN(10)

7080561

$4.79

12

ROD END,LH

7060166

$48.56

12

ROD END,LH

7060166

$48.56

13

BOLT(10)

7512404

$3.99

14

BRKT,BOLT RETAINER

5241997

$1.44

15

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

17

STEERING-HOOP,WELD

1013152-067

$49.59

18

BOLT-CARRIAGE(10)

7512275

$3.99

19

NUT, LOCK(10)

7542103

$5.59

20

PLUG

5410344

$5.65

21

RIVET(50) Substituted by 7661130

7661643

Unavailable

22

TORQUE STOP SN44

1012854

Unavailable

23

NUT(10)

7542404

$1.59

24

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

25

BOLT,(10)

7517428

$2.39

26

BOOT,TIEROD,MOD

5411249

Unavailable

27

PLATE,BOOT,MOD

5211796-067

$31.35

28

POP RIVET(50)

7621323

$1.49

29

CLIP, PLASTIC(10)

4020139

$4.79

30

SCREW(10)

7517328

$13.19

31

PLUG,HOLE(10)

7080689

$5.75

32

ROD,TIE,BLK

5132090-067

Unavailable

33

SCREW(10)

7515434

Unavailable

34

NUT LOCK(10)

7542411

$3.19

35

Spacer

5010468

Unavailable

35

Spacer

5010468

Unavailable

36

IDLER ARM (Incl. 3,35)

1820582

Unavailable

37

TUBE,SPACER

5010384

Unavailable

37

TUBE,SPACER

5010384

Unavailable

38

O-RING

5411220

$6.46

38

O-RING

5411220

$6.46

39

RACK ASM,STEERING

1822413

$77.78

40

Screw

7517574

Unavailable

41

WASHER(10)

7556053

$2.63

41

WASHER(10)

7556053

$2.63
