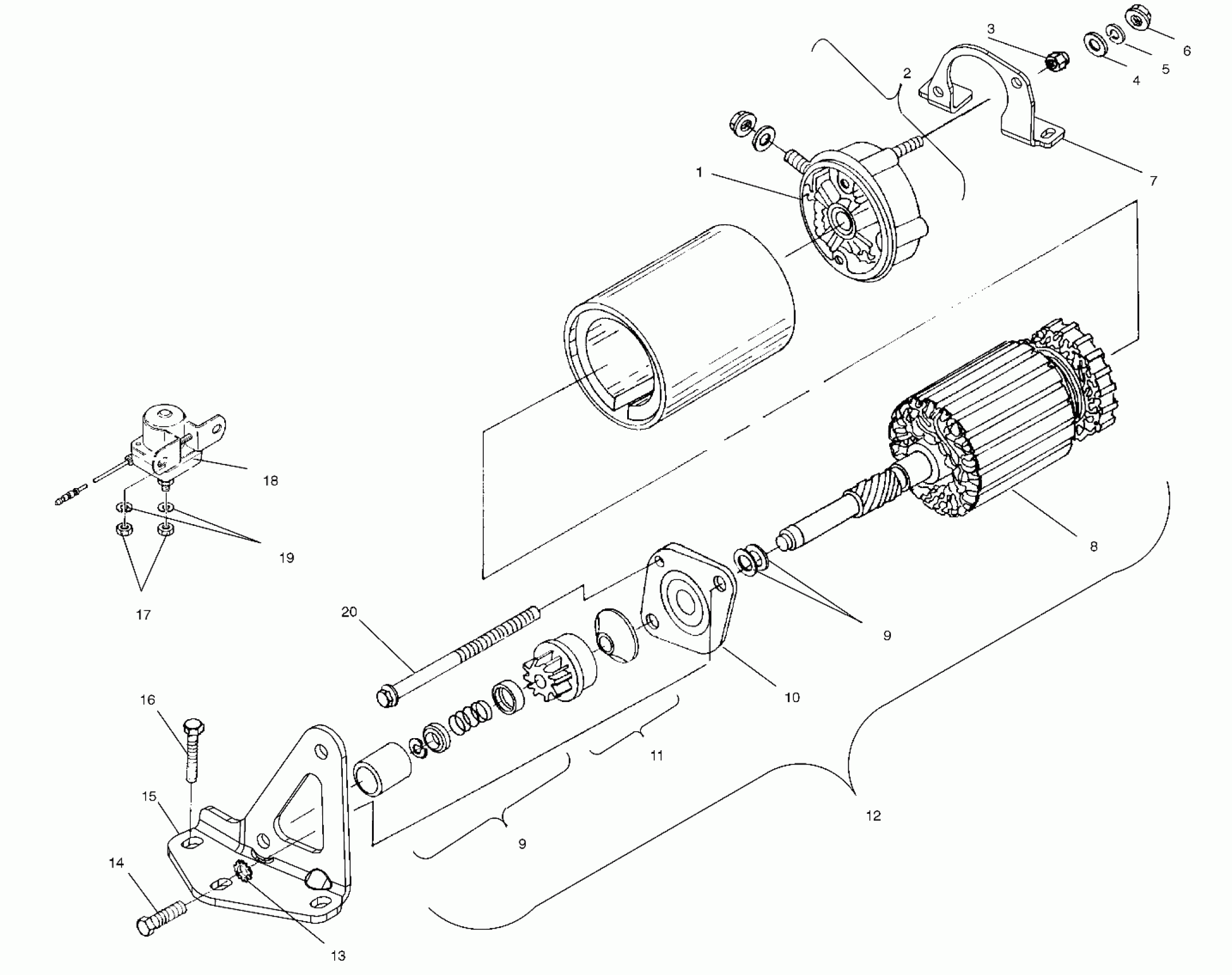

Polaris 600 TOURING - S00ST6ES STARTING MOTOR - S00ST6ES (4954135413C009) Diagram

#

Description
Price

1

KIT,BRUSH&SPRING

2200759

$59.99

1

ASM., BRUSH

-------

Unavailable

1

Nut

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

ASM., BRUSH & SCREW

-------

Unavailable

2

KIT,COMMUTATOR CAP ASM. (Incl.1)

2200758

$82.39

3

NUT(10)

7542153

$1.59

4

WASHER(10)

7555954

$4.79

5

WASHER(10)

7552902

Unavailable

6

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

7

BRKT,STARTER,REAR

5244250

$389.99

8

KIT,ARMATURE ASM.

2200756

$169.99

9

Kit, Drive Hardware

2200755

Unavailable

9

SPACER

-------

Unavailable

9

COVER, DUST

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

9

Kit, Drive Hardware

2200755

Unavailable

9

SPACER

-------

Unavailable

9

COVER, DUST

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

10

KIT,DRIVECAP ASM.

2200757

$59.99

11

KIT,DRIVE ASM.

2200754

Unavailable

11

PLATE, DRIVE

-------

Unavailable

11

PINION

-------

Unavailable

12

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable

13

WASHER(10)

7552603

$1.49

14

SCREW(10)

7512492

$1.49

15

BRKT,FR.STARTER

5242498

Unavailable

16

SCREW(10)

7516823

$3.19

17

NUT(10)

3082939

Unavailable

18

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 17,19)

3083211

Unavailable

19

WASHER SPRING(10)

3080077

$2.39

20

KIT,SCREW

2200753

$29.99

20

BOLT, THRU

-------

Unavailable
