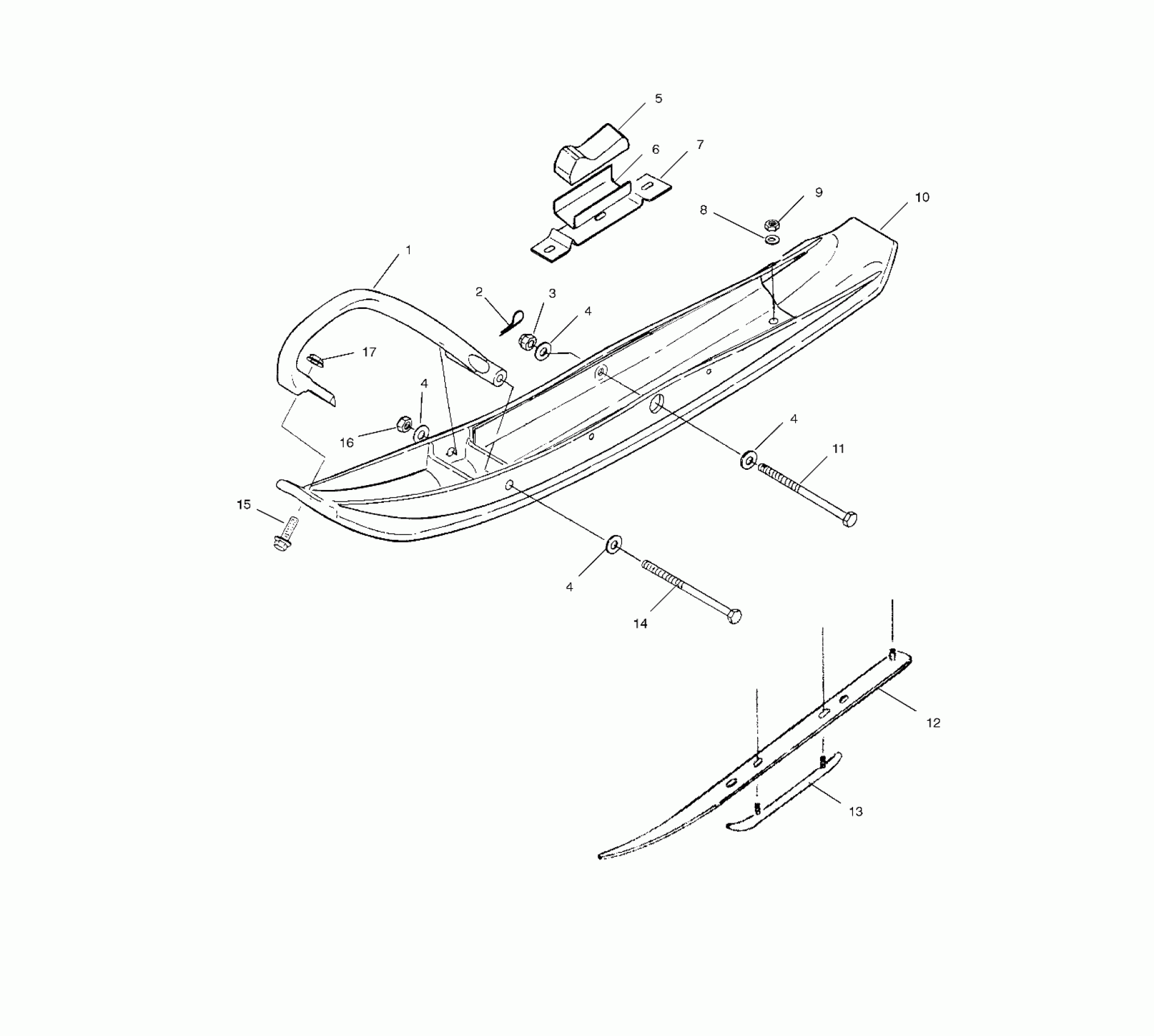

Polaris 600 TOURING - S00ST6ES SKI - S00ST6ES (4954135413B005) Diagram

#

Description
Price

1

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

2

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

3

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

4

WSHR-.813X.406X.105-Y

7555832

$2.39

4

WSHR-.813X.406X.105-Y

7555832

$2.39

4

WSHR-.813X.406X.105-Y

7555832

$2.39

4

WSHR-.813X.406X.105-Y

7555832

$2.39

5

STOP,RUBBER

5411094

Unavailable

6

RETAINER-SKI RUBBER

5243824

$27.99

7

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

8

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

ASM-CMP SKI BLANK W/RK SDL,BLK

1820821-070

Unavailable

11

SCREW,(10)

7512596

$19.99

12

PLATE,SKAG,1.375 STUD,BLK

1012748-067

Unavailable

13

KIT,SKAG,EZ,3",COMP.SKI (Pair)

2872018

Unavailable

14

BOLT(10)

7515514

$7.19

15

BOLT(10)

7515307

$3.99

16

NUT LOCK(10)

7542411

$3.19

17

NUT LOCK(10)

7542321

$1.49
